Accessori per contenitori
B6605100

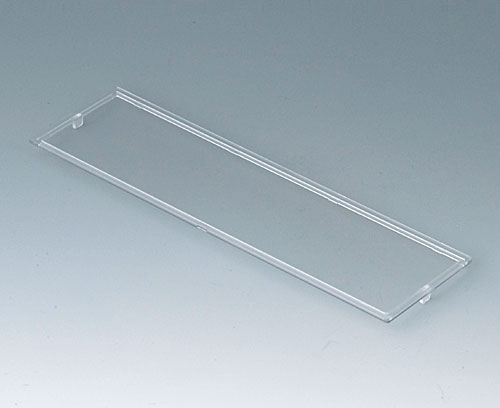

Lid, 9 modules
Locking lid for protecting the display and operating elements.
Supply1 lid
Disegno PDF 2D
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B6605100
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
B6505110
RAILTEC B, 9 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 52 terminal blocks 5.0 or 4 plug headers 13-pin
Supply 1 base part with locking clip, 1 top part
B6505110
RAILTEC B, 9 modules, Vers. VProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505111
RAILTEC B, 9 modules, Vers. I
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (52 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6505111
RAILTEC B, 9 modules, Vers. IProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505112
RAILTEC B, 9 modules, Vers. II
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For plug header (4 x 13-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6505112
RAILTEC B, 9 modules, Vers. IIProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505113
RAILTEC B, 9 modules, Vers. III
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6505113
RAILTEC B, 9 modules, Vers. IIIProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505114
RAILTEC B, 9 modules, Vers. I
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (52 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6505114
RAILTEC B, 9 modules, Vers. IProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505115
RAILTEC B, 9 modules, Vers. II
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For plug header (4 x 13-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6505115
RAILTEC B, 9 modules, Vers. IIProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505116
RAILTEC B, 9 modules, Vers. III
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6505116
RAILTEC B, 9 modules, Vers. IIIProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505117
RAILTEC B, 9 modules, Vers. IV
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (26 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6505117
RAILTEC B, 9 modules, Vers. IVProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505118
RAILTEC B, 9 modules, Vers. IV
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (26 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6505118
RAILTEC B, 9 modules, Vers. IVProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505119
RAILTEC B, 9 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 52 terminal blocks 5.0 or 4 plug headers 13-pin
Supply 1 base part with locking clip, 1 top part
B6505119
RAILTEC B, 9 modules, Vers. VProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505121
RAILTEC B, 9 modules, Vers. VI
Enclosure with open connection sides - for max. 12 terminal guards in flat version, 6 terminal guards in high version or 6 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6505121
RAILTEC B, 9 modules, Vers. VIProdotto aggiunto alla lista
light grey RAL 7035
157x90x58mm
B6515111
RAILTEC B, 9 modules, Vers. XI
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (26 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6515111
RAILTEC B, 9 modules, Vers. XIProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6515112
RAILTEC B, 9 modules, Vers. XII
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
Version For plug header (2 x 13-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6515112
RAILTEC B, 9 modules, Vers. XIIProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6515113
RAILTEC B, 9 modules, Vers. XIII
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6515113
RAILTEC B, 9 modules, Vers. XIIIProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
Customising options for B6605100
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 83 KB
- AutoCAD DWG-File 252 KB
- AutoCAD DXF-File 711 KB
Weight/1 part
15 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Denmark
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B6605100 e non dimenticare di chiedere la quotazione!
