B6505111

RAILTEC B, 9 modules, Vers. I

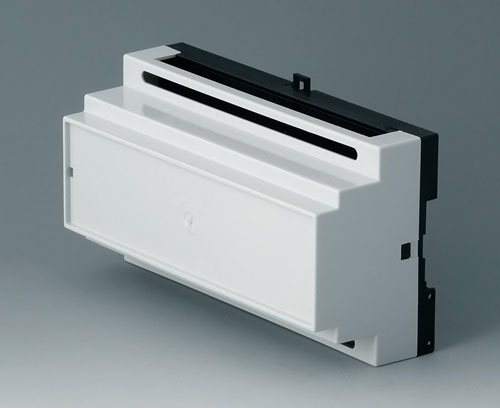

Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version

For terminal blocks 5.0 / 5.08 (52 terminals max.)

Supply

1 base part with locking clip, 1 top part

Disegno PDF 2D
Vista 3D in PDF
3D/2D download

Create la vostra scheda dati PDF per B6505111

Selezionate le informazioni prodotto per la vostra scheda dati.

Aggiungi al carrello Aggiungi al carrello Aggiungi al carrello
Prodotto aggiunto alla lista
continua o Vai al carrello

Accessory "wall/holder"

B6600334 Wall suspension elements

B6600334

Wall suspension elements For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).

Supply 2 pieces as kit

B6600334

Wall suspension elements
Prodotto aggiunto alla lista

black

Accessory "terminals"

B6605111 Terminal block, block 5.0

B6605111

Terminal block, block 5.0 PCB terminal block, 5.0. 13-pin.

Supply 1 piece

B6605111

Terminal block, block 5.0
Prodotto aggiunto alla lista

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Prodotto aggiunto alla lista

Accessory

B6605100 Lid, 9 modules

B6605100

Lid, 9 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

B6605100

Lid, 9 modules
Prodotto aggiunto alla lista

transparent

Customising options for B6505111

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Materiale

Top part

Bottom part
Colore
Top part light grey RAL 7035,
Bottom part black,
Locking clip black
Standards
RoHS compliant
DIN EN 60715 TH35
DIN VDE 0470-1
DIN 43880 unit 1
REACH compliant
VBG 4
IEC 529
Larghezza
157 mm
Altezza
86 mm
Profindità
59 mm
PCB length, base
82,4 mm
PCB width, base
151,2 mm
Poles
≤ 52
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 476 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Miscellaneous information

Weight/1 part
99 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
