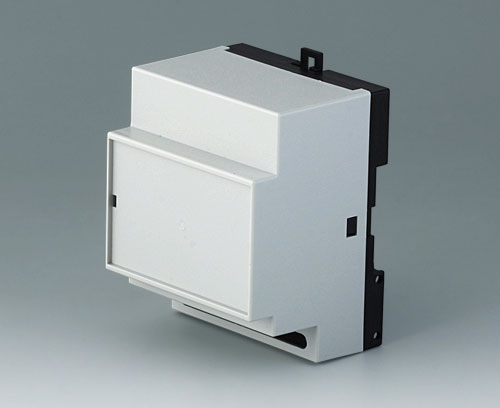

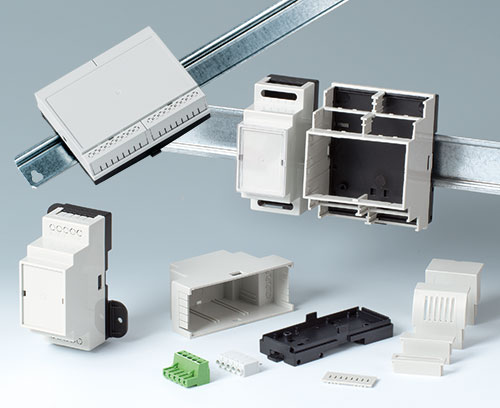

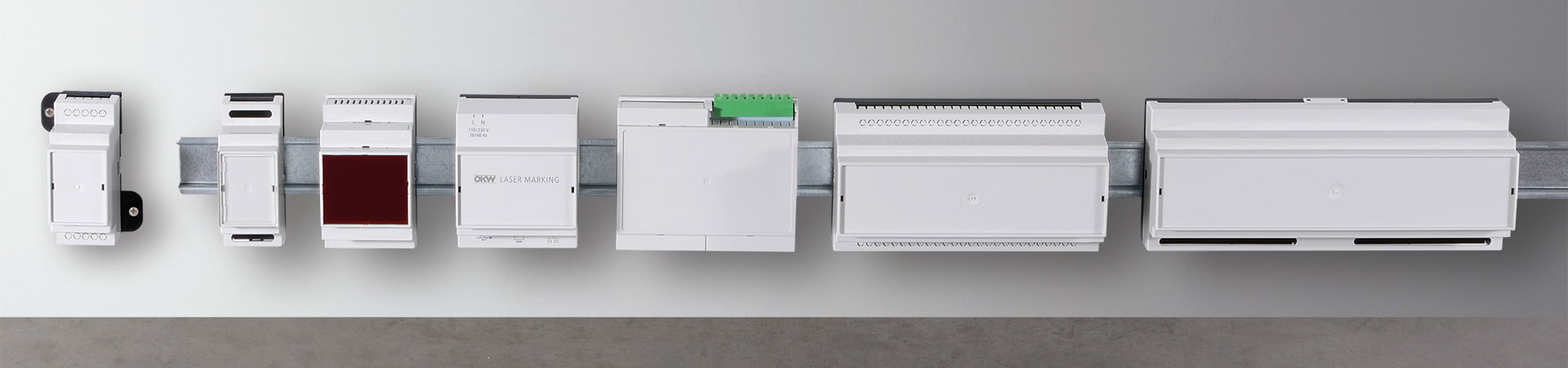

Railtec B

Contenitori versatili per guida DIN

La famiglia di contenitori RAILTEC B si caratterizza per il montaggio con arresto a scatto facile e veloce su guide DIN secondo EN 60715 TH35.

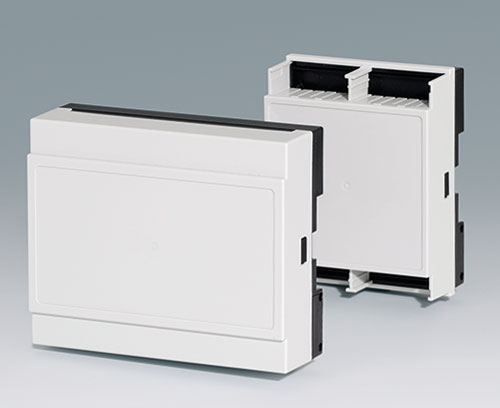

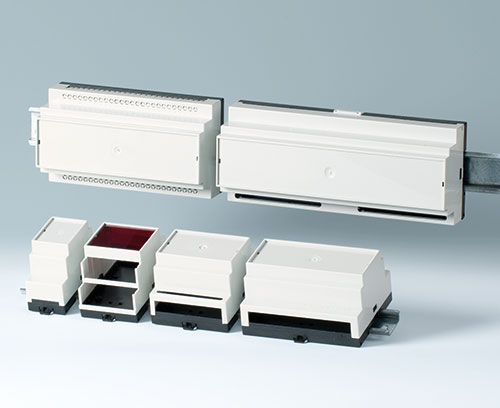

  • 6 dimensioni (2-12 moduli) secondo DIN 43880, misura 1

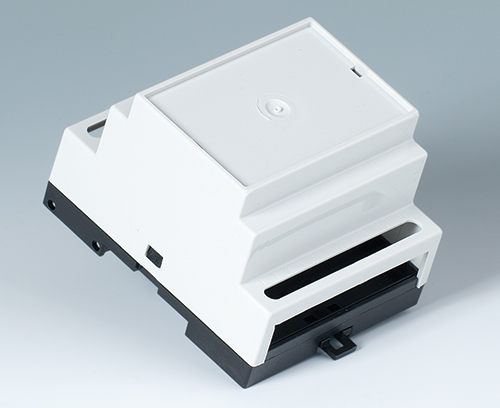

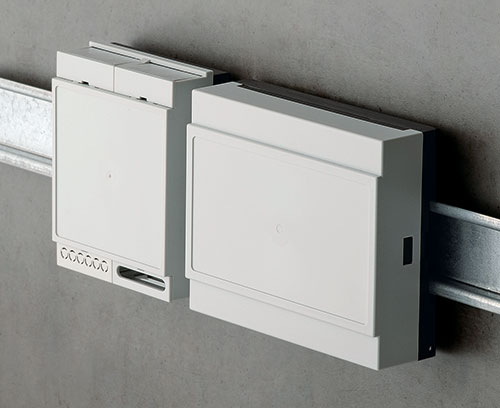

    4 misure (2, 4, 6 e 9 moduli) con parte superiore piatta
  • Isolamento completo e protezione dal contatto secondo VBG 4 e IEC 529/DIN VDE 0470-1
  • Materiale ignifugo (UL 94 V-0)

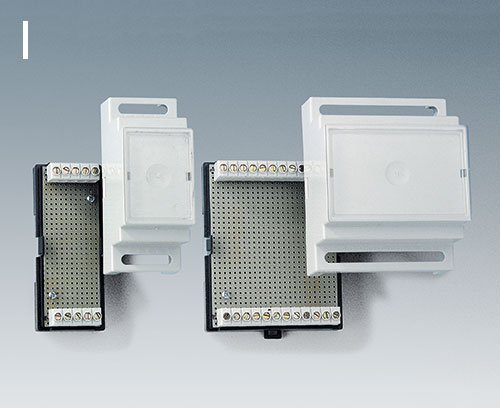

  • Versione I: per morsetti per circuiti stampati con passo 5,0/5,08

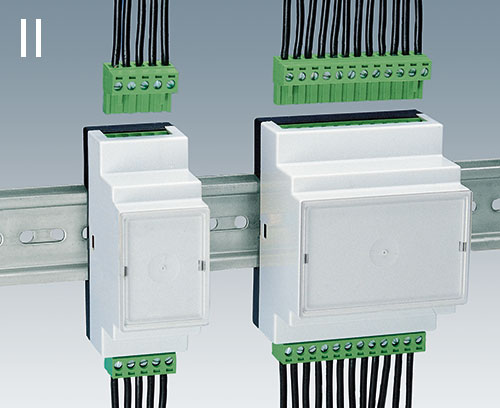

  • Versione II: per connettori a pin con passo 5,0/5,08

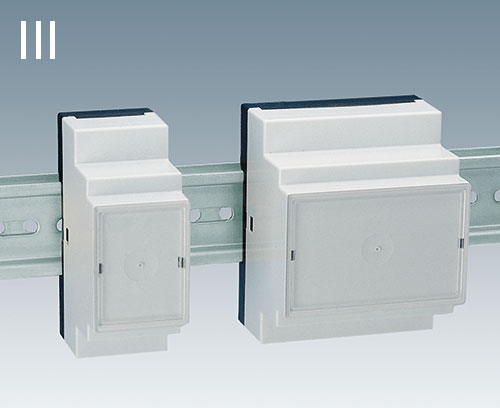

  • Versione III: contenitore chiuso, per es. per connettori frontali, connettori D-SUB, ecc.

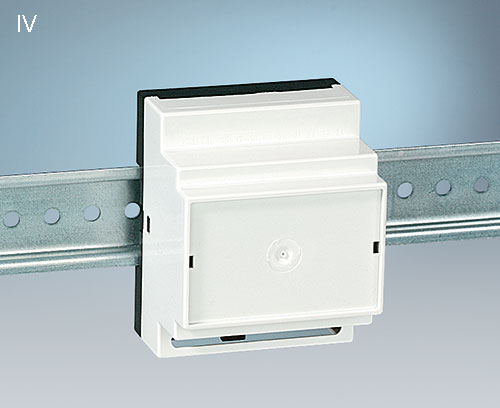

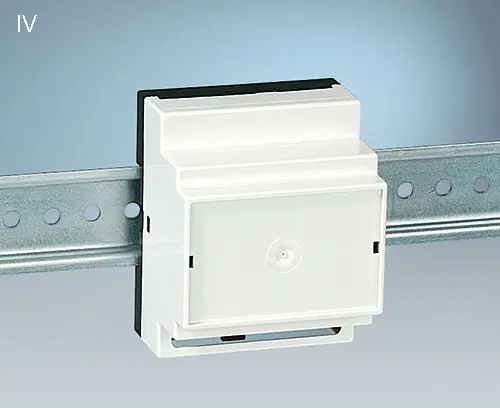

  • Versione IV: per morsetti per circuiti stampati con passo 5,0/5,08 (solo sotto)

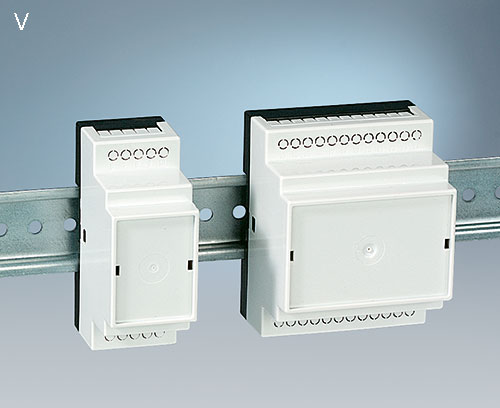

  • Versione V: per perforazioni con passo 5,0

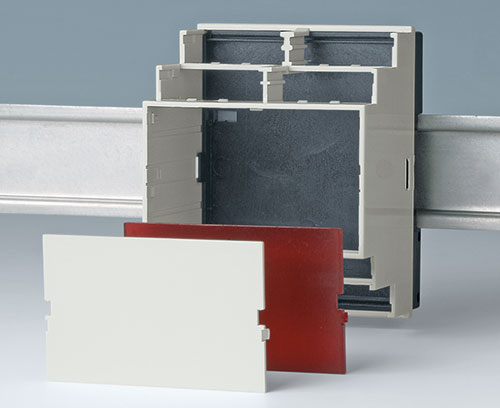

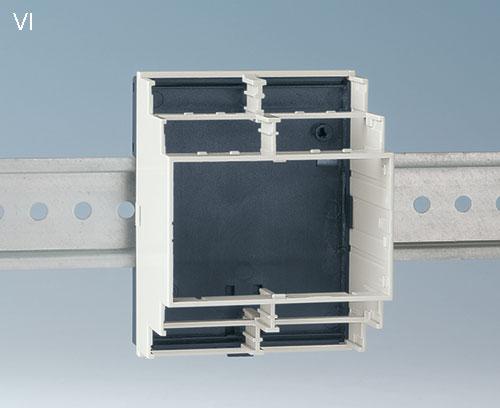

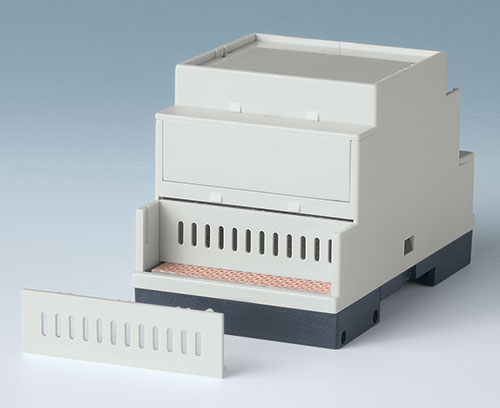

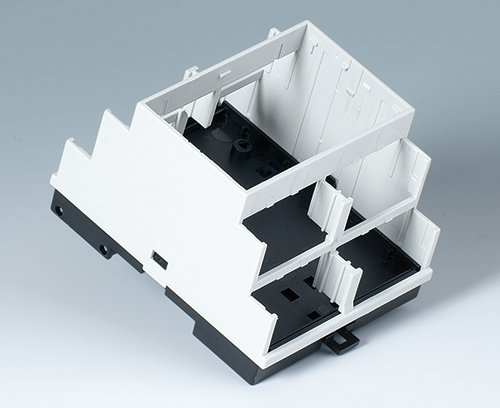

  • Versione VI: contenitore aperto per combinazioni individuali (copertura per morsetti/parete divisoria), a scelta con 1 o 2 livelli di collegamento

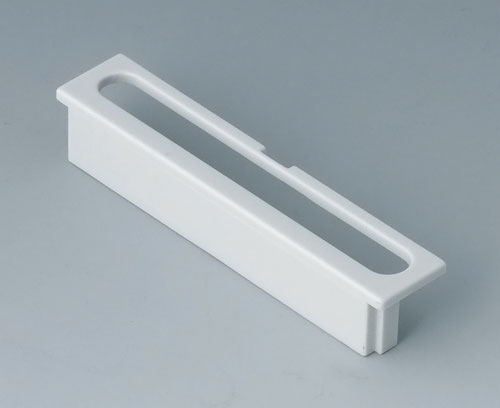

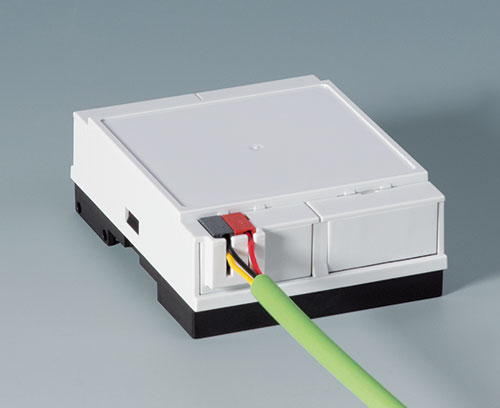

  • Copertura per connettori KNX, adatta per moduli di larghezza 2 e 4 (contenitore versione VI ovvero contenitore con parte superiore piatta)

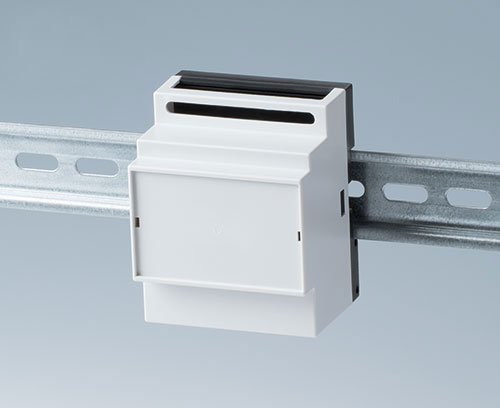

  • Adatti per guide DIN EN 60715 TH35 o montaggio diretto alla parete

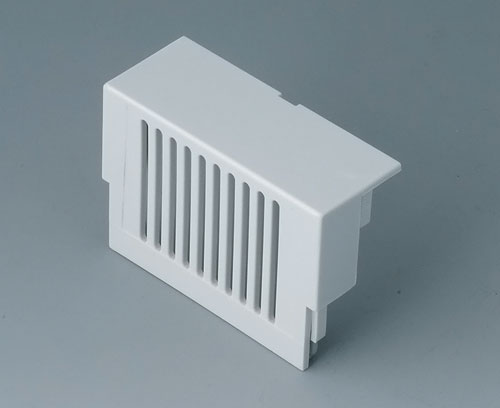

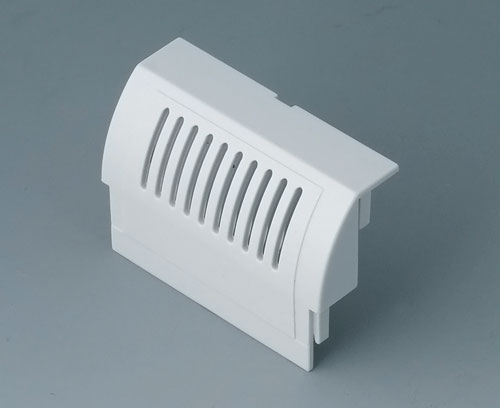

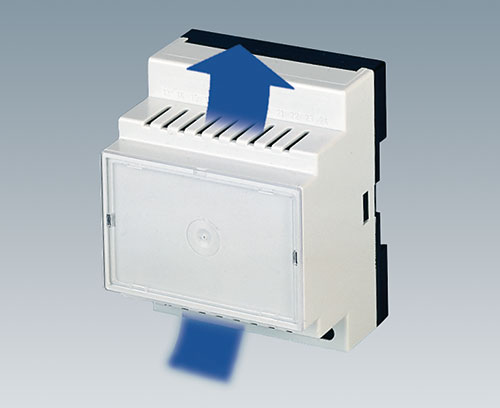

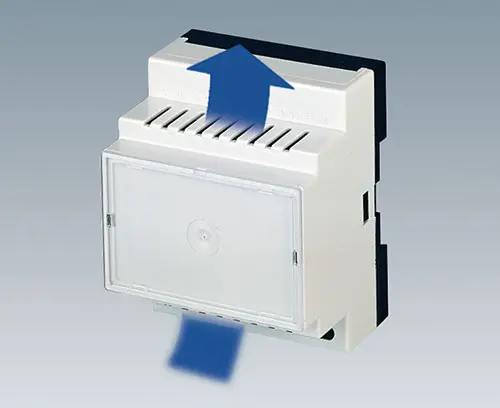

  • Senza/con fessure di ventilazione per una buona sottrazione di calore

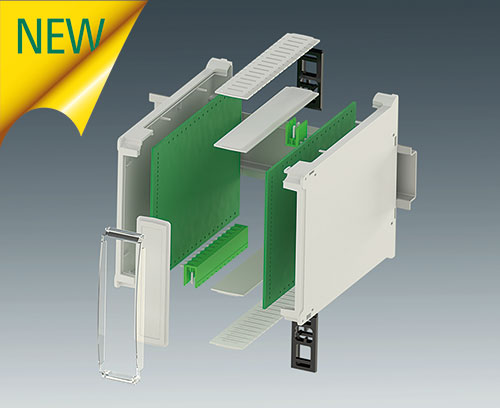

  • Personalizzabili: posizionamento dei circuiti stampati in tutte e tre le direzioni spaziali; parte inferiore con punti di fissaggio, parte superiore con guide

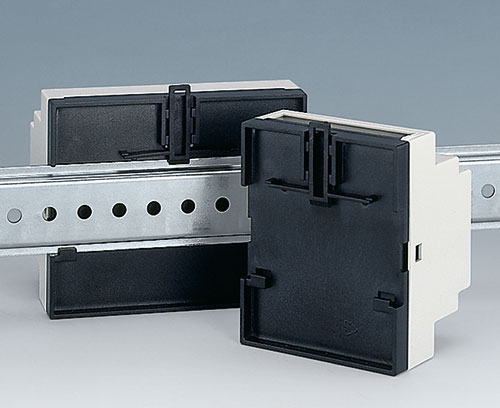

  • Clip di innesto premontata nella parte inferiore
  • Coperchio trasparente (accessorio per versioni alte) per la protezione degli elementi di indicazione e comando
  • Grado di protezione IP 40

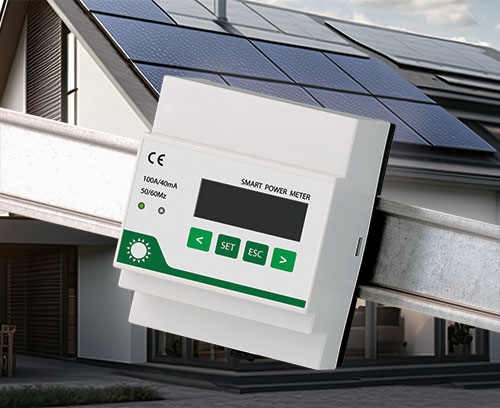

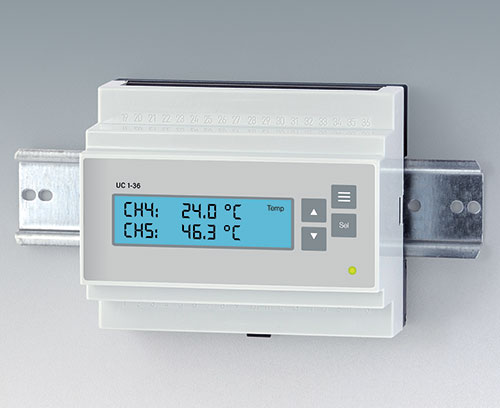

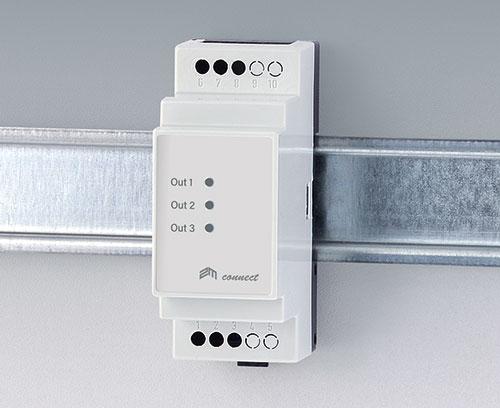

  • Esempi di applicazione

Application fields

  • Impiego universale come contenitore per installazioni
  • Rispetta i requisiti dell'industria meccanica e automobilistica
  • Smart Factory / Industrie 4.0
  • Particolarmente adatto per la tecnica di comando e di regolazione
  • Versioni
  • Accessori

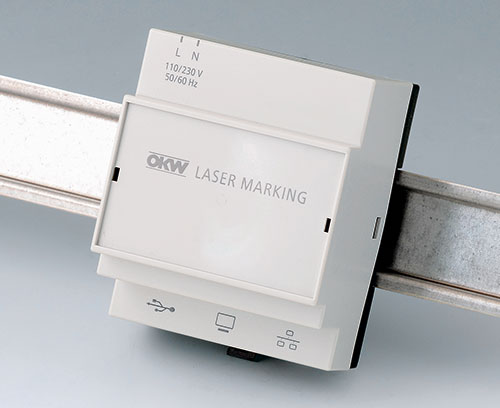

  • Modifiche specifiche del cliente

Scegliete la versione e la misura o le misure desiderate oppure cliccate sul pulsante “Seleziona tutti i prodotti” alla fine della lista dei prodotti.

AltText

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Prodotto aggiunto alla lista
AltText

B6600111

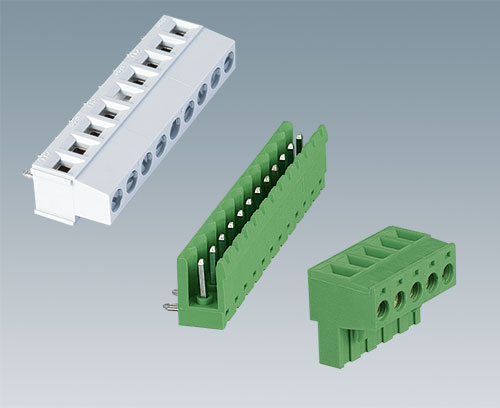

Terminal block, block 5.0 PCB terminal block, 5.0. 36-pin.

Supply 1 piece

Chiudi

B6600111

Terminal block, block 5.0
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)
light grey
AltText

B6600222

Plug header, block 5.08 Male terminal block, 5.08. 3-pin.

Supply 1 piece

Chiudi

B6600222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)
AltText

B6600334

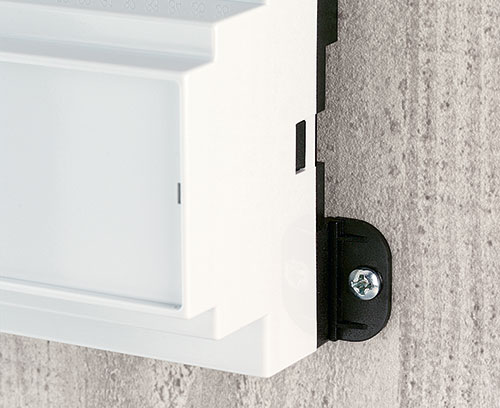

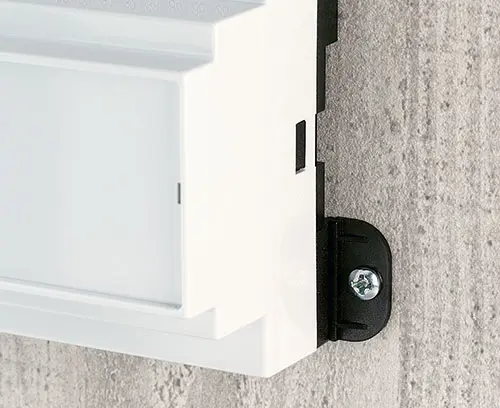

Wall suspension elements For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).

Supply 2 pieces as kit

Chiudi

B6600334

Wall suspension elements
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black
AltText

B6601100

Lid, 2 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Chiudi

B6601100

Lid, 2 modules
Prodotto aggiunto alla lista
PC (UL 94 V-0)
transparent
AltText

B6601111

Terminal block, block 5.0 PCB terminal block, 5.0. 5-pin.

Supply 1 piece

Chiudi

B6601111

Terminal block, block 5.0
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)
AltText

B6601180

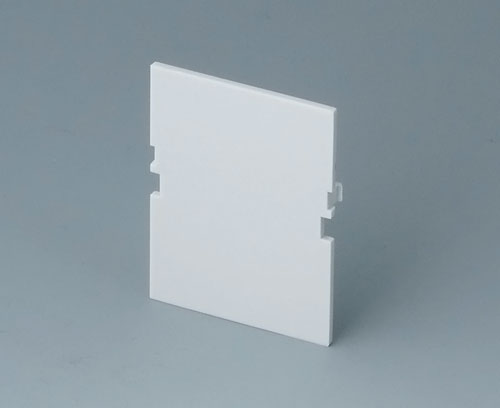

Front panel, 2 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6601180

Front panel, 2 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
32x42mm
AltText

B6601222

Plug header, block 5.08 Male terminal block, 5.08. 5-pin.

Supply 1 piece

Chiudi

B6601222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
AltText

B6601223

Plug header, block 5.08 Female terminal block, 5.08. 5-pin.

Supply 1 piece

Chiudi

B6601223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
AltText

B6601480

Front panel, 2 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6601480

Front panel, 2 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
red transparent
32x42mm
AltText

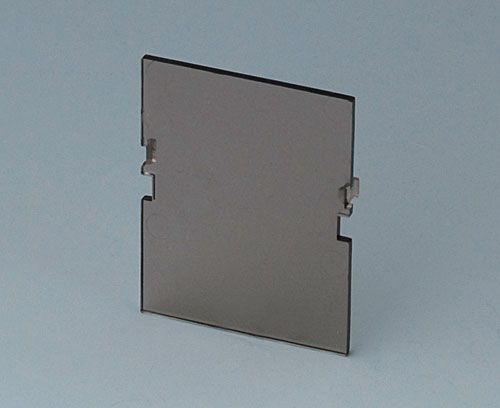

B6601580

Front panel, 2 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6601580

Front panel, 2 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
smoked glass
32x42mm
AltText

B6602100

Lid, 3 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Chiudi

B6602100

Lid, 3 modules
Prodotto aggiunto alla lista
PC (UL 94 V-0)
transparent
AltText

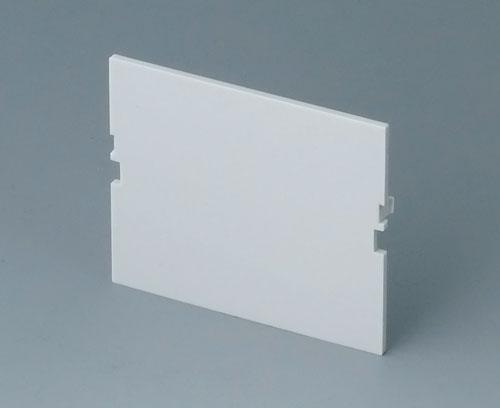

B6602180

Front panel, 3 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6602180

Front panel, 3 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
49x42mm
AltText

B6602222

Plug header, block 5.08 Male terminal block, 5.08. 9-pin.

Supply 1 piece

Chiudi

B6602222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
AltText

B6602223

Plug header, block 5.08 Female terminal block, 5.08. 9-pin.

Supply 1 piece

Chiudi

B6602223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
AltText

B6602480

Front panel, 3 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6602480

Front panel, 3 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
red transparent
49x42mm
AltText

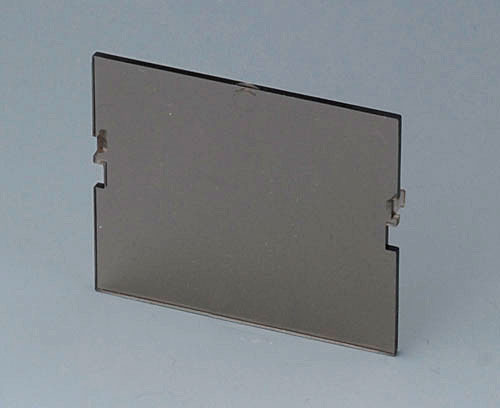

B6602580

Front panel, 3 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6602580

Front panel, 3 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
smoked glass
42x49mm
AltText

B6603100

Lid, 4 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Chiudi

B6603100

Lid, 4 modules
Prodotto aggiunto alla lista
PC (UL 94 V-0)
transparent
AltText

B6603111

Terminal block, block 5.0 PCB terminal block, 5.0. 12-pin.

Supply 1 piece

Chiudi

B6603111

Terminal block, block 5.0
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)
AltText

B6603180

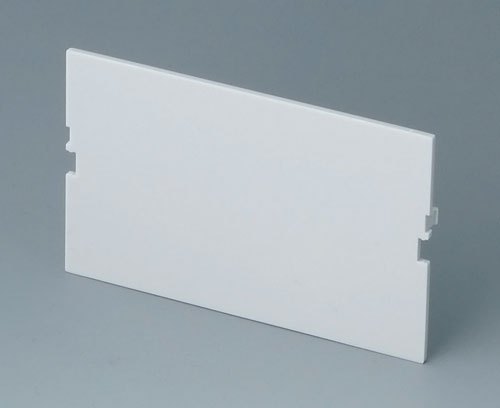

Front panel, 4 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6603180

Front panel, 4 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
67x42mm
AltText

B6603222

Plug header, block 5.08 Male terminal block, 5.08. 12-pin.

Supply 1 piece

Chiudi

B6603222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
AltText

B6603223

Plug header, block 5.08 Female terminal block, 5.08. 12-pin.

Supply 1 piece

Chiudi

B6603223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
AltText

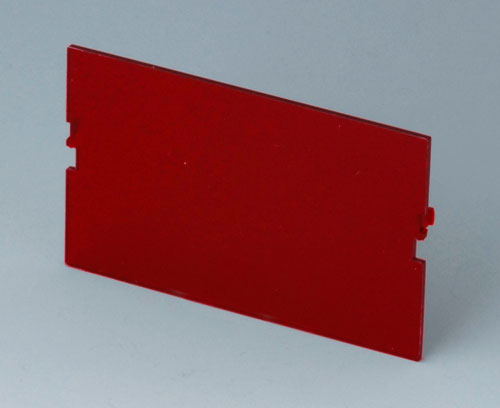

B6603480

Front panel, 4 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6603480

Front panel, 4 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
red transparent
67x42mm
AltText

B6603580

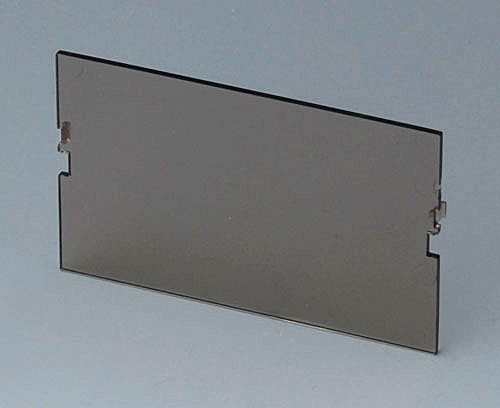

Front panel, 4 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6603580

Front panel, 4 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
smoked glass
67x42mm
AltText

B6604100

Lid, 6 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Chiudi

B6604100

Lid, 6 modules
Prodotto aggiunto alla lista
PC (UL 94 V-0)
transparent
AltText

B6604111

Terminal block, block 5.0 PCB terminal block, 5.0. 18-pin.

Supply 1 piece

Chiudi

B6604111

Terminal block, block 5.0
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)
AltText

B6604180

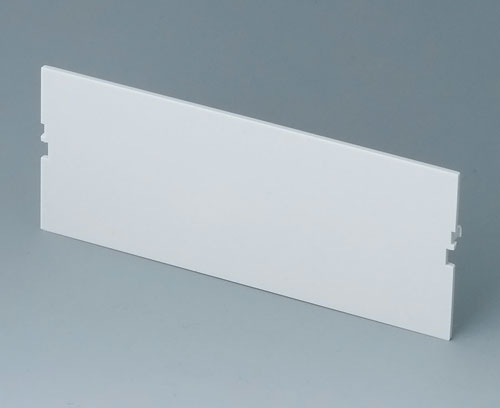

Front panel, 6 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6604180

Front panel, 6 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
102x42mm
AltText

B6604222

Plug header, block 5.08 Male terminal block, 5.08. 18-pin.

Supply 1 piece

Chiudi

B6604222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)
AltText

B6604223

Plug header, block 5.08 Female terminal block, 5.08. 18-pin.

Supply 1 piece

Chiudi

B6604223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)
AltText

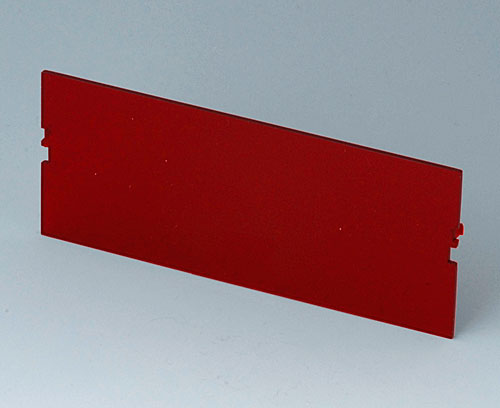

B6604480

Front panel, 6 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6604480

Front panel, 6 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
red transparent
102x42mm
AltText

B6604580

Front panel, 6 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6604580

Front panel, 6 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
smoked glass
102x42mm
AltText

B6605100

Lid, 9 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Chiudi

B6605100

Lid, 9 modules
Prodotto aggiunto alla lista
PC (UL 94 V-0)
transparent
AltText

B6605111

Terminal block, block 5.0 PCB terminal block, 5.0. 13-pin.

Supply 1 piece

Chiudi

B6605111

Terminal block, block 5.0
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)
AltText

B6605180

Front panel, 9 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6605180

Front panel, 9 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
155x42mm
AltText

B6605222

Plug header, block 5.08 Male terminal block, 5.08. 13-pin.

Supply 1 piece

Chiudi

B6605222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
AltText

B6605223

Plug header, block 5.08 Female terminal block, 5.08. 13-pin.

Supply 1 piece

Chiudi

B6605223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
AltText

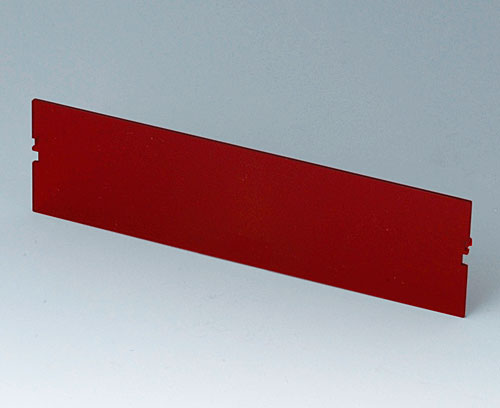

B6605480

Front panel, 9 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6605480

Front panel, 9 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
red transparent
155x42mm
AltText

B6605580

Front panel, 9 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6605580

Front panel, 9 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
smoked glass
155x42mm
AltText

B6606100

Lid, 12 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Chiudi

B6606100

Lid, 12 modules
Prodotto aggiunto alla lista
PC (UL 94 V-0)
transparent
AltText

B6606111

Terminal block, block 5.0 PCB terminal block, 5.0. 16-pin.

Supply 1 piece

Chiudi

B6606111

Terminal block, block 5.0
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)
AltText

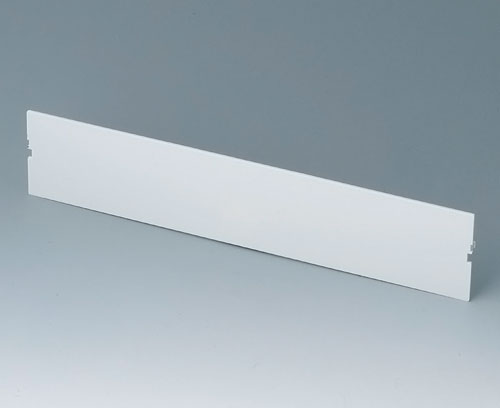

B6606180

Front panel, 12 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6606180

Front panel, 12 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
206x42mm
AltText

B6606222

Plug header, block 5.08 Male terminal block, 5.08. 2-pin.

Supply 1 piece

Chiudi

B6606222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
AltText

B6606223

Plug header, block 5.08 Female terminal block, 5.08. 2-pin.

Supply 1 piece

Chiudi

B6606223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
AltText

B6606480

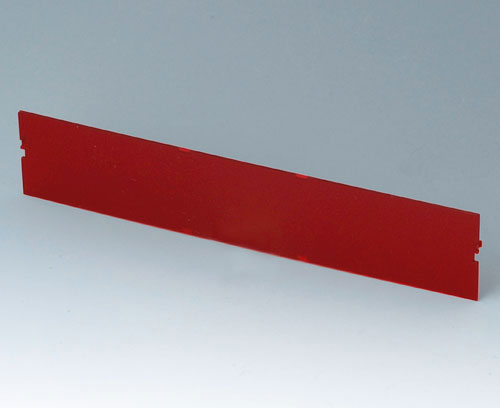

Front panel, 12 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6606480

Front panel, 12 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
red transparent
206x42mm
AltText

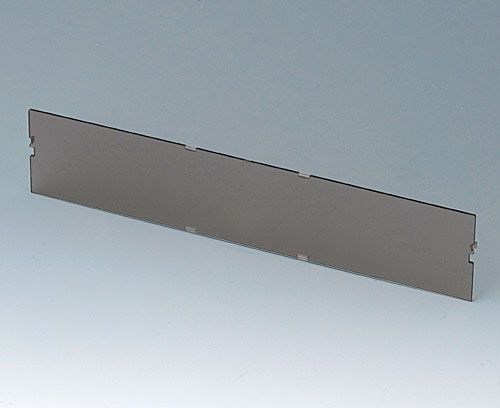

B6606580

Front panel, 12 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6606580

Front panel, 12 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
smoked glass
206x42mm
AltText

B6607111

Terminal block, block 5.0 PCB terminal block, 5.0. 6-pin.

Supply 1 piece

Chiudi

B6607111

Terminal block, block 5.0
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)
AltText

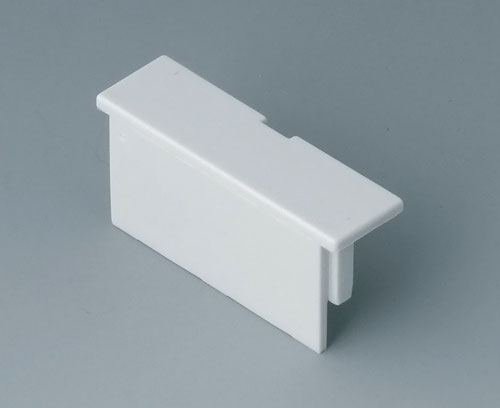

B6607140

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Chiudi

B6607140

Terminal guards, flat
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
AltText

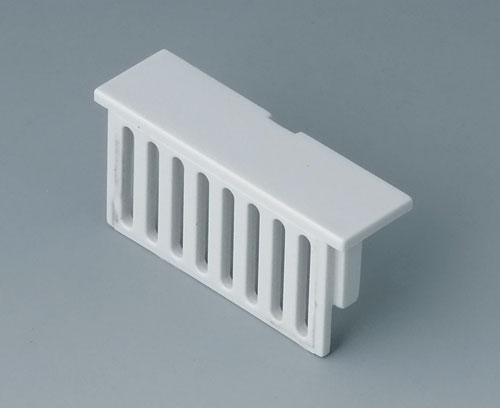

B6607141

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

Chiudi

B6607141

Terminal guards, flat
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
AltText

B6607142

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version For terminal block, block 5.0, 6-poles

Supply 1 piece

Chiudi

B6607142

Terminal guards, flat
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
AltText

B6607143

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Perforated, for block 5.0

Supply 1 piece

Chiudi

B6607143

Terminal guards, flat
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
AltText

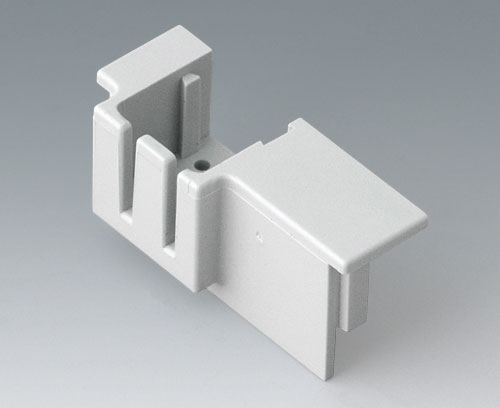

B6607145

KNX Cover, flat Easy assembly through snap-in installation of the case parts.

Version For KNX connector

Supply 1 piece

Chiudi

B6607145

KNX Cover, flat
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
AltText

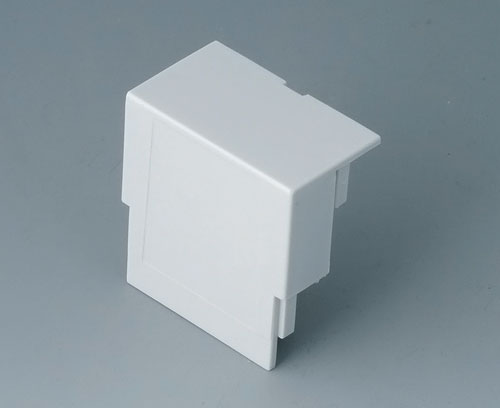

B6607160

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Chiudi

B6607160

Terminal guards, high
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
AltText

B6607161

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

Chiudi

B6607161

Terminal guards, high
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
AltText

B6607162

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Convex, closed

Supply 1 piece

Chiudi

B6607162

Terminal guards, high
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
AltText

B6607163

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Convex, with ventilation slots

Supply 1 piece

Chiudi

B6607163

Terminal guards, high
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
AltText

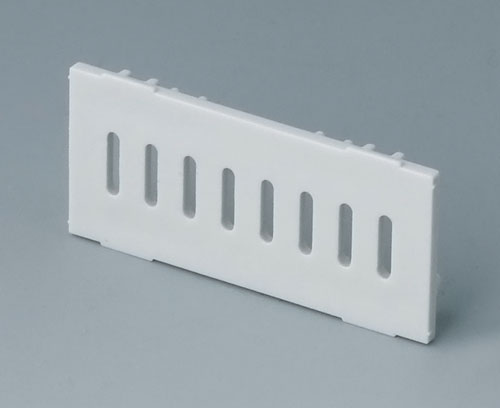

B6607191

Partition plate Separates the electronic and terminal area when used without terminal guard (undermost level). Connections externally accessible. Simple insertion into the guides.

Version With ventilation slots

Supply 1 piece

Chiudi

B6607191

Partition plate
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
AltText

B6608111

Terminal block, block 5.0 PCB terminal block, 5.0. 9-pin.

Supply 1 piece

Chiudi

B6608111

Terminal block, block 5.0
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)
AltText

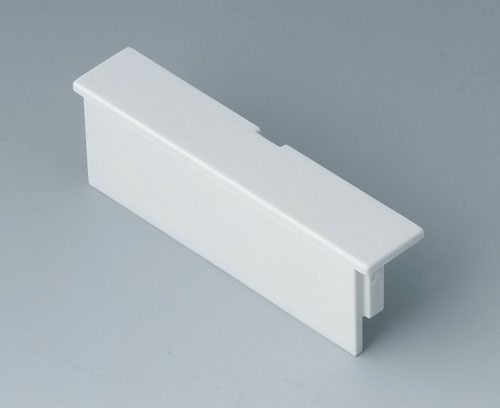

B6608140

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Chiudi

B6608140

Terminal guards, flat
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
AltText

B6608141

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

Chiudi

B6608141

Terminal guards, flat
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
AltText

B6608142

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version For terminal block, block 5.0, 9-poles

Supply 1 piece

Chiudi

B6608142

Terminal guards, flat
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
AltText

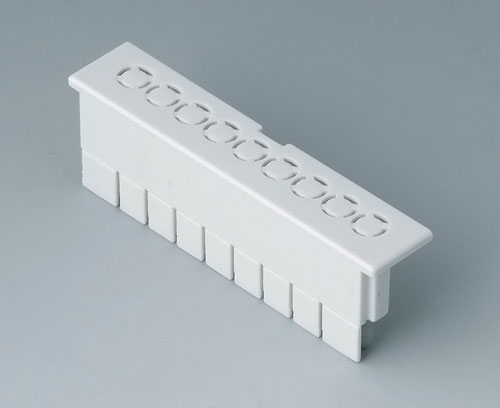

B6608143

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Perforated, for block 5.0

Supply 1 piece

Chiudi

B6608143

Terminal guards, flat
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
AltText

B6608160

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Chiudi

B6608160

Terminal guards, high
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
AltText

B6608161

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

Chiudi

B6608161

Terminal guards, high
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
AltText

B6608162

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Convex, closed

Supply 1 piece

Chiudi

B6608162

Terminal guards, high
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
AltText

B6608163

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Convex, with ventilation slots

Supply 1 piece

Chiudi

B6608163

Terminal guards, high
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
AltText

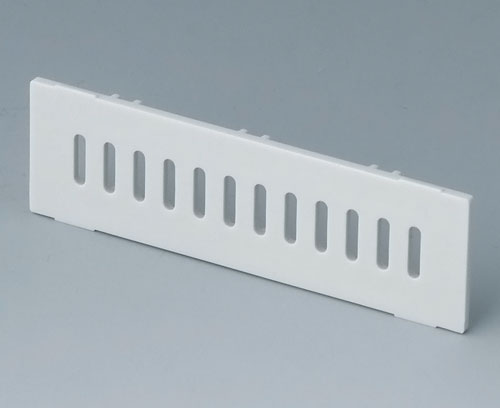

B6608191

Partition plate Separates the electronic and terminal area when used without terminal guard (undermost level). Connections externally accessible. Simple insertion into the guides.

Version With ventilation slots

Supply 1 piece

Chiudi

B6608191

Partition plate
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
AltText

B6608222

Plug header, block 5.08 Male terminal block, 5.08. 6-pin.

Supply 1 piece

Chiudi

B6608222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)
AltText

B6608223

Plug header, block 5.08 Female terminal block, 5.08. 6-pin.

Supply 1 piece

Chiudi

B6608223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)

Opzioni prodotto per Railtec B

Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
