Accessori per contenitori

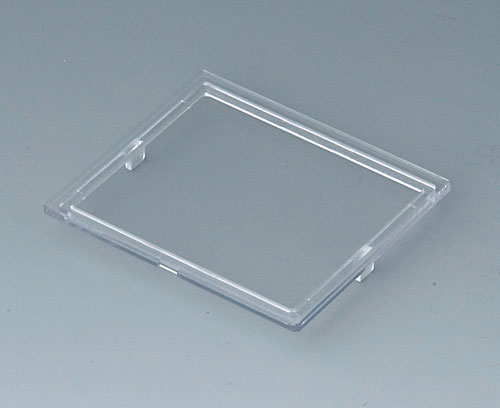

B6602100
Lid, 3 modules
Locking lid for protecting the display and operating elements.
Supply1 lid
Create la vostra scheda dati PDF per B6602100
Selezionate le informazioni prodotto per la vostra scheda dati.
B6502110
Version With perforations for max. 18 terminal blocks 5.0 or 2 plug headers 9-pin
Supply 1 base part with locking clip, 1 top part
B6502110
RAILTEC B, 3 modules, Vers. Vlight grey RAL 7035
52,5x86x58mm
B6502111
Version For terminal blocks 5.0 / 5.08 (18 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6502111
RAILTEC B, 3 modules, Vers. Ilight grey RAL 7035
52,5x86x58mm

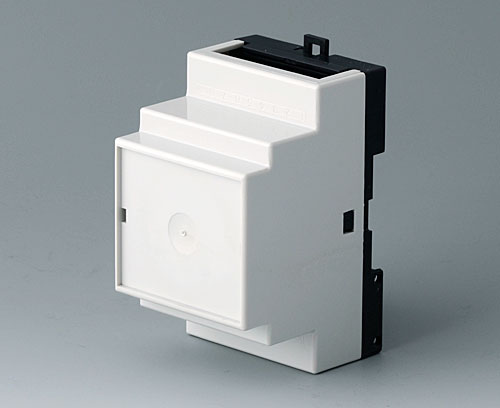

B6502112
Version For plug header (9-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6502112
RAILTEC B, 3 modules, Vers. IIlight grey RAL 7035
52,5x86x58mm

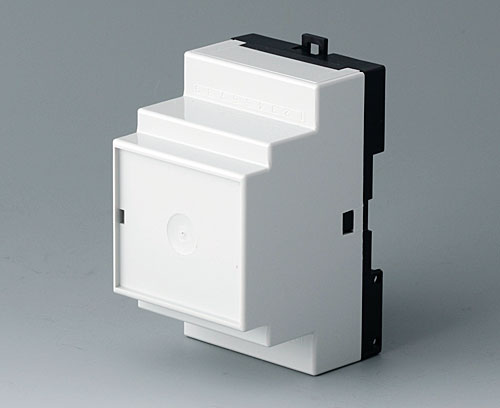

B6502113
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6502113
RAILTEC B, 3 modules, Vers. IIIlight grey RAL 7035
52,5x86x58mm
B6502114
Version For terminal blocks 5.0 / 5.08 (18 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6502114
RAILTEC B, 3 modules, Vers. Ilight grey RAL 7035
52,5x86x58mm

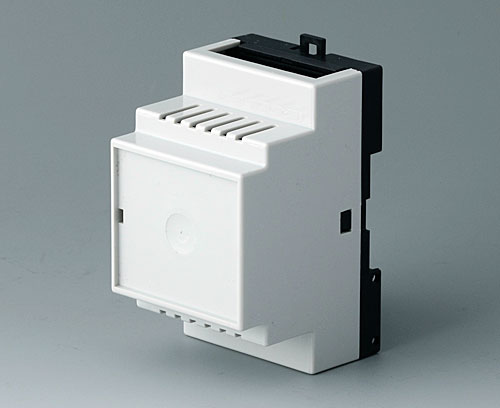

B6502115
Version For plug header (9-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6502115
RAILTEC B, 3 modules, Vers. IIlight grey RAL 7035
52,5x86x58mm
B6502116
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6502116
RAILTEC B, 3 modules, Vers. IIIlight grey RAL 7035
52,5x86x58mm
B6502117
Version For terminal blocks 5.0 / 5.08 (9 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6502117
RAILTEC B, 3 modules, Vers. IVlight grey RAL 7035
52,5x86x58mm
B6502118
Version For terminal blocks 5.0 / 5.08 (9 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6502118
RAILTEC B, 3 modules, Vers. IVlight grey RAL 7035
52,5x86x58mm
B6502119
Version With perforations for max. 18 terminal blocks 5.0 or 2 plug headers 9-pin
Supply 1 base part with locking clip, 1 top part
B6502119
RAILTEC B, 3 modules, Vers. Vlight grey RAL 7035
52,5x86x58mm
B6502121
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6502121
RAILTEC B, 3 modules, Vers. VIlight grey RAL 7035
52,5x90x58mm
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 82 KB
- AutoCAD DWG-File 283 KB
- AutoCAD DXF-File 714 KB
(OKW product)
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B6602100 e non dimenticare di chiedere la quotazione!
