Accessori per contenitori
B6607140

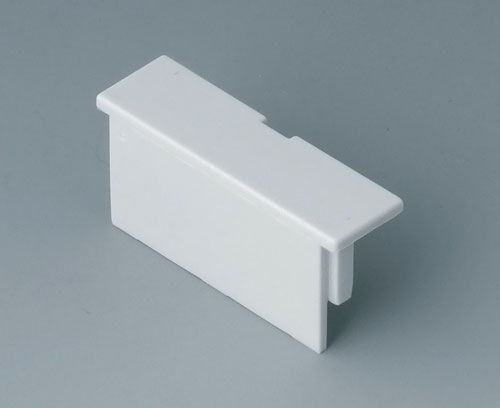

Terminal guards, flat
Easy assembly through snap-in installation of the case parts.
VersionClosed
Supply1 piece
Disegno PDF 2D
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B6607140
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
B6501121
RAILTEC B, 2 modules, Vers. VI
Enclosure with open connection sides - for max. 4 terminal guards in flat version, 2 terminal guards in high version or 2 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6501121
RAILTEC B, 2 modules, Vers. VIProdotto aggiunto alla lista
light grey RAL 7035
35x90x58mm
B6501229
RAILTEC B, 2 modules, Vers. low profile
Enclosure with open connection sides in flat version - for max. 2 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6501229
RAILTEC B, 2 modules, Vers. low profileProdotto aggiunto alla lista
light grey RAL 7035
35x89,6x31,25mm
B6503121
RAILTEC B, 4 modules, Vers. VI
Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6503121
RAILTEC B, 4 modules, Vers. VIProdotto aggiunto alla lista
light grey RAL 7035
70x90x58mm
B6503229
RAILTEC B, 4 modules, Vers. low profile
Enclosure with open connection sides in flat version - for max. 4 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6503229
RAILTEC B, 4 modules, Vers. low profileProdotto aggiunto alla lista
light grey RAL 7035
70x89,6x31,25mm
Customising options for B6607140
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 80 KB
- AutoCAD DWG-File 246 KB
- AutoCAD DXF-File 685 KB
Weight/1 part
1 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Denmark
