B6501121
RAILTEC B, 2 modules, Vers. VI

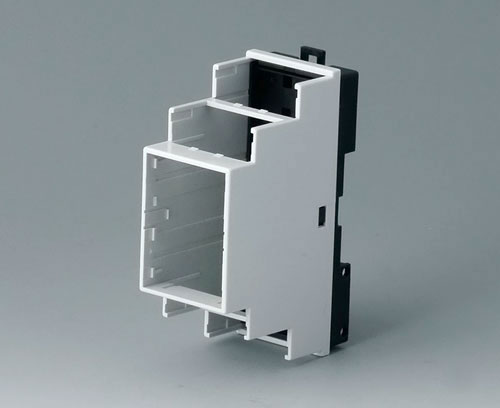

Enclosure with open connection sides - for max. 4 terminal guards in flat version, 2 terminal guards in high version or 2 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.
VersionIndividual configuration see accessories
Supply1 base part with locking clip, 1 top part
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B6501121
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "wall/holder"
B6600334
Wall suspension elements
For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).
Supply 2 pieces as kit
B6600334
Wall suspension elementsProdotto aggiunto alla lista
black
Accessory "terminals"
B6607111
Terminal block, block 5.0
PCB terminal block, 5.0. 6-pin.
Supply 1 piece
B6607111
Terminal block, block 5.0Prodotto aggiunto alla lista
B6608222
Plug header, block 5.08
Male terminal block, 5.08. 6-pin.
Supply 1 piece
B6608222
Plug header, block 5.08Prodotto aggiunto alla lista
B6608223
Plug header, block 5.08
Female terminal block, 5.08. 6-pin.
Supply 1 piece
B6608223
Plug header, block 5.08Prodotto aggiunto alla lista
Accessory "terminal guards"
B6607140
Terminal guards, flat
Easy assembly through snap-in installation of the case parts.
Version Closed
Supply 1 piece
B6607140
Terminal guards, flatProdotto aggiunto alla lista
light grey
B6607141
Terminal guards, flat
Easy assembly through snap-in installation of the case parts.
Version With ventilation slots
Supply 1 piece
B6607141
Terminal guards, flatProdotto aggiunto alla lista
light grey
B6607142
Terminal guards, flat
Easy assembly through snap-in installation of the case parts.
Version For terminal block, block 5.0, 6-poles
Supply 1 piece
B6607142
Terminal guards, flatProdotto aggiunto alla lista
light grey
B6607143
Terminal guards, flat
Easy assembly through snap-in installation of the case parts.
Version Perforated, for block 5.0
Supply 1 piece
B6607143
Terminal guards, flatProdotto aggiunto alla lista
light grey
B6607145
KNX Cover, flat
Easy assembly through snap-in installation of the case parts.
Version For KNX connector
Supply 1 piece
B6607145
KNX Cover, flatProdotto aggiunto alla lista
light grey
B6607160
Terminal guards, high
Easy assembly through snap-in installation of the case parts.
Version Closed
Supply 1 piece
B6607160
Terminal guards, highProdotto aggiunto alla lista
light grey
B6607161
Terminal guards, high
Easy assembly through snap-in installation of the case parts.

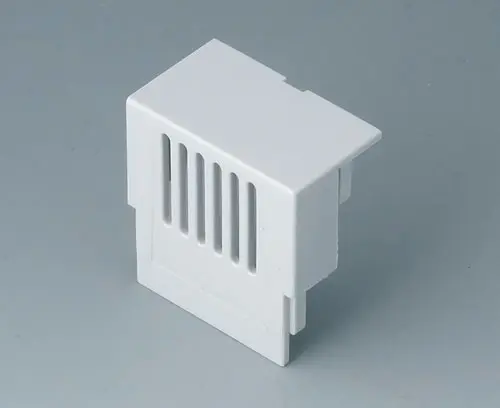

Version With ventilation slots
Supply 1 piece
B6607161
Terminal guards, highProdotto aggiunto alla lista
light grey
B6607162
Terminal guards, high
Easy assembly through snap-in installation of the case parts.
Version Convex, closed
Supply 1 piece
B6607162
Terminal guards, highProdotto aggiunto alla lista
light grey
B6607163
Terminal guards, high
Easy assembly through snap-in installation of the case parts.
Version Convex, with ventilation slots
Supply 1 piece
B6607163
Terminal guards, highProdotto aggiunto alla lista
light grey
B6607191
Partition plate

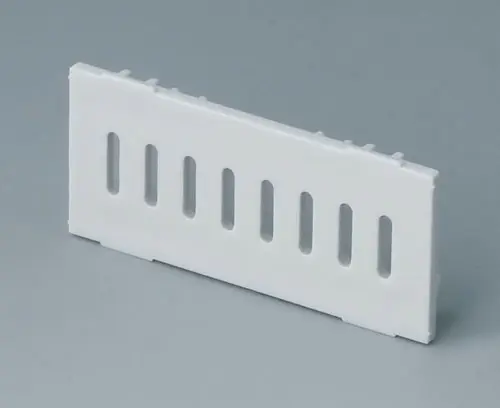

Separates the electronic and terminal area when used without terminal guard (undermost level). Connections externally accessible. Simple insertion into the guides.
Version With ventilation slots
Supply 1 piece
B6607191
Partition plateProdotto aggiunto alla lista
light grey
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Prodotto aggiunto alla lista
Accessory
B6601100
Lid, 2 modules
Locking lid for protecting the display and operating elements.
Supply 1 lid
B6601100
Lid, 2 modulesProdotto aggiunto alla lista
transparent
B6601180
Front panel, 2 modules, Vers. VI
Snap-in.
Supply 1 front panel
B6601180
Front panel, 2 modules, Vers. VIProdotto aggiunto alla lista
light grey
32x42mm
B6601480
Front panel, 2 modules, Vers. VI
Snap-in.
Supply 1 front panel
B6601480
Front panel, 2 modules, Vers. VIProdotto aggiunto alla lista

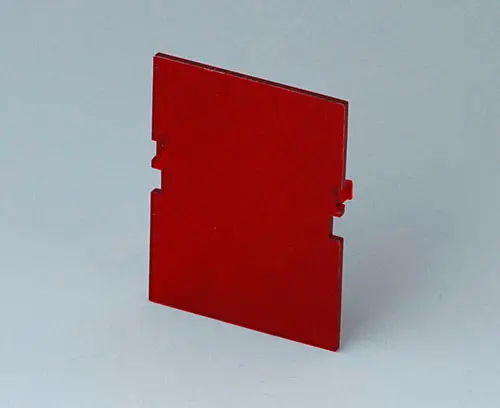

red transparent
32x42mm
B6601580
Front panel, 2 modules, Vers. VI
Snap-in.
Supply 1 front panel
B6601580
Front panel, 2 modules, Vers. VIProdotto aggiunto alla lista

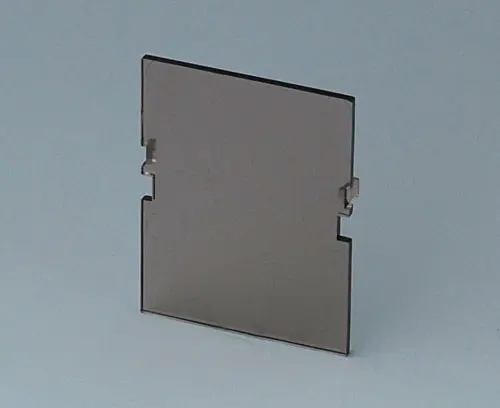

smoked glass
32x42mm
Customising options for B6501121
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Materiale
Top part
Bottom part
Colore
Top part
light grey RAL 7035,
Bottom part black,
Locking clip black
Bottom part black,
Locking clip black
Standards
Larghezza
35 mm
Altezza
90 mm
Profindità
58 mm
PCB length, base
82 mm
PCB width, base
29,4 mm
Pitch
5.0 mm
Poles
≤ 24
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 205 KB
- AutoCAD DWG-File 424 KB
- AutoCAD DXF-File 1.425 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 1.294 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00010002.x_t 3.857 KB
- 00010002.STEP 8.254 KB
- 00010002.SAT 9.922 KB
Miscellaneous information
- Max. size of PCB in mm 568 KB
Weight/1 part
27 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Denmark
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B6501121 e non dimenticare di chiedere la quotazione!
