B6505110
RAILTEC B, 9 modules, Vers. V

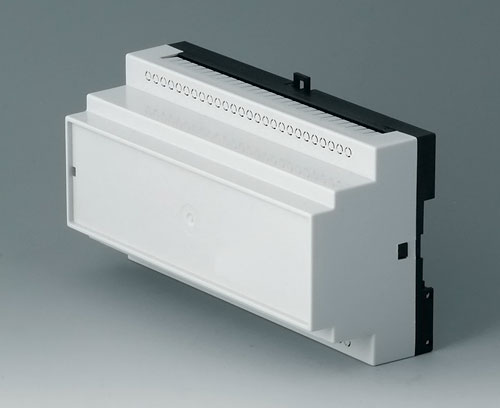

Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
VersionWith perforations for max. 52 terminal blocks 5.0 or 4 plug headers 13-pin
Supply1 base part with locking clip, 1 top part
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B6505110
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "wall/holder"
B6600334
Wall suspension elements
For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).
Supply 2 pieces as kit
B6600334
Wall suspension elementsProdotto aggiunto alla lista
black
Accessory "terminals"
B6605111
Terminal block, block 5.0
PCB terminal block, 5.0. 13-pin.
Supply 1 piece
B6605111
Terminal block, block 5.0Prodotto aggiunto alla lista
B6605222
Plug header, block 5.08
Male terminal block, 5.08. 13-pin.
Supply 1 piece
B6605222
Plug header, block 5.08Prodotto aggiunto alla lista
B6605223
Plug header, block 5.08
Female terminal block, 5.08. 13-pin.
Supply 1 piece
B6605223
Plug header, block 5.08Prodotto aggiunto alla lista
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Prodotto aggiunto alla lista
Accessory
B6605100
Lid, 9 modules
Locking lid for protecting the display and operating elements.
Supply 1 lid
B6605100
Lid, 9 modulesProdotto aggiunto alla lista
transparent
Customising options for B6505110
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Materiale
Top part
Bottom part
Colore
Top part
light grey RAL 7035,
Bottom part black,
Locking clip black
Bottom part black,
Locking clip black
Standards
Larghezza
157 mm
Altezza
86 mm
Profindità
59 mm
PCB length, base
82,4 mm
PCB width, base
151,2 mm
Poles
≤ 52
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 397 KB
- AutoCAD DWG-File 1.000 KB
- AutoCAD DXF-File 4.006 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 762 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00010434.x_t 8.232 KB
- 00010434.STEP 20.512 KB
- 00010434.SAT 20.108 KB
Miscellaneous information
- Max. size of PCB in mm 568 KB
Weight/1 part
108 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Denmark
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B6505110 e non dimenticare di chiedere la quotazione!
