Accessori per contenitori
B6506115

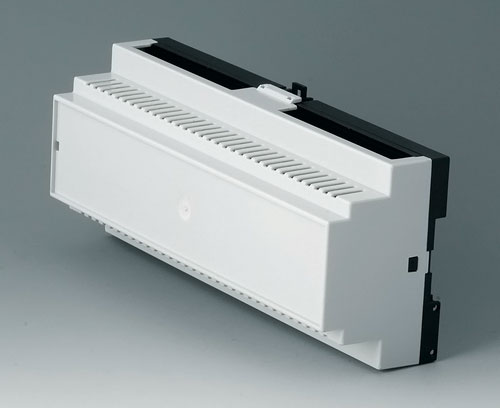

RAILTEC B, 12 modules, Vers. II
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
VersionFor plug header (4 x 8-poles and 4 x 7-poles) blocks 5.0 / 5.08
Supply1 base part with locking clip, 1 top part
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B6506115
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "wall/holder"
B6600334
Wall suspension elements
For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).
Supply 2 pieces as kit
B6600334
Wall suspension elementsProdotto aggiunto alla lista
black
Accessory "terminals"
B6600222
Plug header, block 5.08
Male terminal block, 5.08. 3-pin.
Supply 1 piece
B6600222
Plug header, block 5.08Prodotto aggiunto alla lista
B6601222
Plug header, block 5.08
Male terminal block, 5.08. 5-pin.
Supply 1 piece
B6601222
Plug header, block 5.08Prodotto aggiunto alla lista
B6606222
Plug header, block 5.08
Male terminal block, 5.08. 2-pin.
Supply 1 piece
B6606222
Plug header, block 5.08Prodotto aggiunto alla lista
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Prodotto aggiunto alla lista
Accessory
B6606100
Lid, 12 modules
Locking lid for protecting the display and operating elements.
Supply 1 lid
B6606100
Lid, 12 modulesProdotto aggiunto alla lista
transparent
Customising options for B6506115
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Materiale
Top part
Bottom part
Colore
Top part
light grey RAL 7035,
Bottom part black,
Locking clip black
Bottom part black,
Locking clip black
Standards
Larghezza
210 mm
Altezza
90 mm
Profindità
58 mm
PCB length, base
82 mm
PCB width, base
204,2 mm
Poles
≤ 64
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 285 KB
- AutoCAD DWG-File 677 KB
- AutoCAD DXF-File 2.565 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 533 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00011493.x_t 5.320 KB
- 00011493.STEP 11.502 KB
- 00011493.SAT 9.414 KB
Miscellaneous information
- Max. size of PCB in mm 568 KB
Weight/1 part
120 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Denmark
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B6506115 e non dimenticare di chiedere la quotazione!
