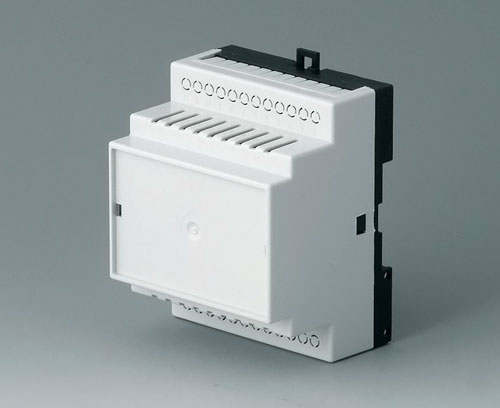

RAILTEC B, 4 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
VersionWith perforations for max. 24 terminal blocks 5.0 or 2 plug headers 12-pin
Supply1 base part with locking clip, 1 top part
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B6503119
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "wall/holder"
B6600334
Wall suspension elements
For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).
Supply 2 pieces as kit
B6600334
Wall suspension elementsProdotto aggiunto alla lista
black
Accessory "terminals"
B6603111
Terminal block, block 5.0
PCB terminal block, 5.0. 12-pin.
Supply 1 piece
B6603111
Terminal block, block 5.0Prodotto aggiunto alla lista
B6603222
Plug header, block 5.08
Male terminal block, 5.08. 12-pin.
Supply 1 piece
B6603222
Plug header, block 5.08Prodotto aggiunto alla lista
B6603223
Plug header, block 5.08
Female terminal block, 5.08. 12-pin.
Supply 1 piece
B6603223
Plug header, block 5.08Prodotto aggiunto alla lista
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Prodotto aggiunto alla lista
Accessory
B6603100
Lid, 4 modules
Locking lid for protecting the display and operating elements.
Supply 1 lid
B6603100
Lid, 4 modulesProdotto aggiunto alla lista
transparent
Customising options for B6503119
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Materiale
Top part
Bottom part
Colore
Top part
light grey RAL 7035,
Bottom part black,
Locking clip black
Bottom part black,
Locking clip black
Standards
Larghezza
70 mm
Altezza
86 mm
Profindità
58 mm
PCB length, base
82 mm
PCB width, base
64 mm
Poles
≤ 24
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 368 KB
- AutoCAD DWG-File 725 KB
- AutoCAD DXF-File 2.955 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 1.029 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00010361.x_t 5.241 KB
- 00010361.STEP 11.936 KB
- 00010361.SAT 9.436 KB
Miscellaneous information
- Max. size of PCB in mm 568 KB
Weight/1 part
54 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Denmark
