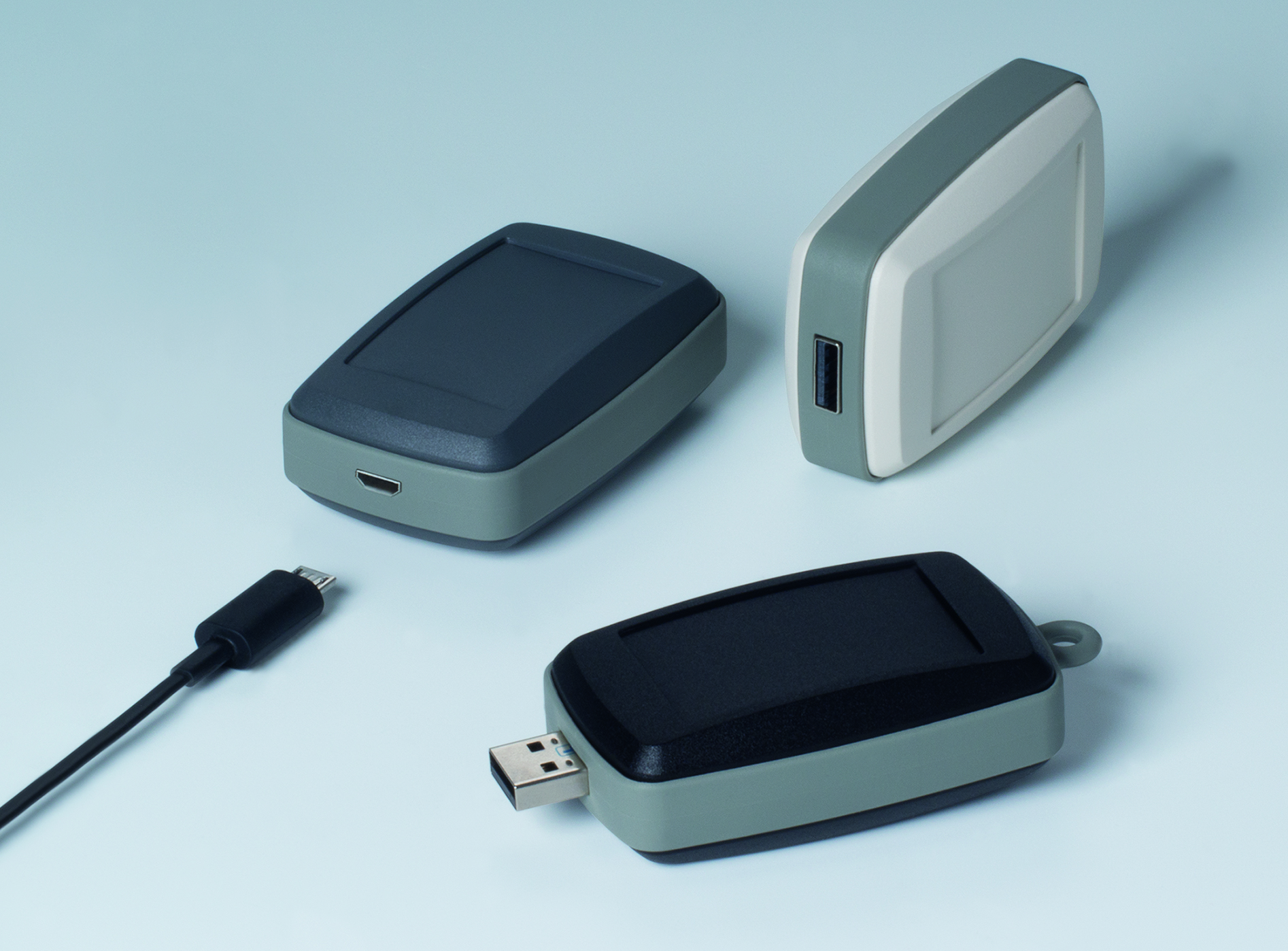

For the MINITEC EM mobile enclosure, OKW Gehäusesysteme now offers suitable intermediate rings with an integrated recess for a USB interface. This range of enclosures features a particularly compact format. With the help of this interface, portable solutions become possible, for example compact measuring units with data recording as data logger sticks.

The intermediate rings are made to fit the MINITEC EM with the dimensions (L x W x H) 68 x 42 x 18 mm. There is a choice of two versions for different USB types. The existing intermediate ring is intended for a Type A USB plug in accordance with DIN IEC 61076-3-107. A further version for the use of "Micro USB 5P, B Type SMT" is now also available. Both TPE intermediate rings are in the colour volcano and have an eyelet for attachment purposes. Matching enclosures are available in ABS (UL 94 HB) off-white and lava as well as in PMMA Plexiglas® black. They can each be chosen with or without a recessed surface for membrane keyboards or decor foils. Installation is easy: the intermediate ring is inserted between the top part and the bottom part, and secured with a screw at the rear. The TPE version has a pleasant touch sensation and also offers impact protection.

To protect the projecting Type A USB plug, the range of accessories includes a matching end cap in the colour volcano. To ensure that the enclosure is always within easy reach, it can be attached to your keyring or worn comfortably round your neck on a lanyard.

Link website MINITEC
