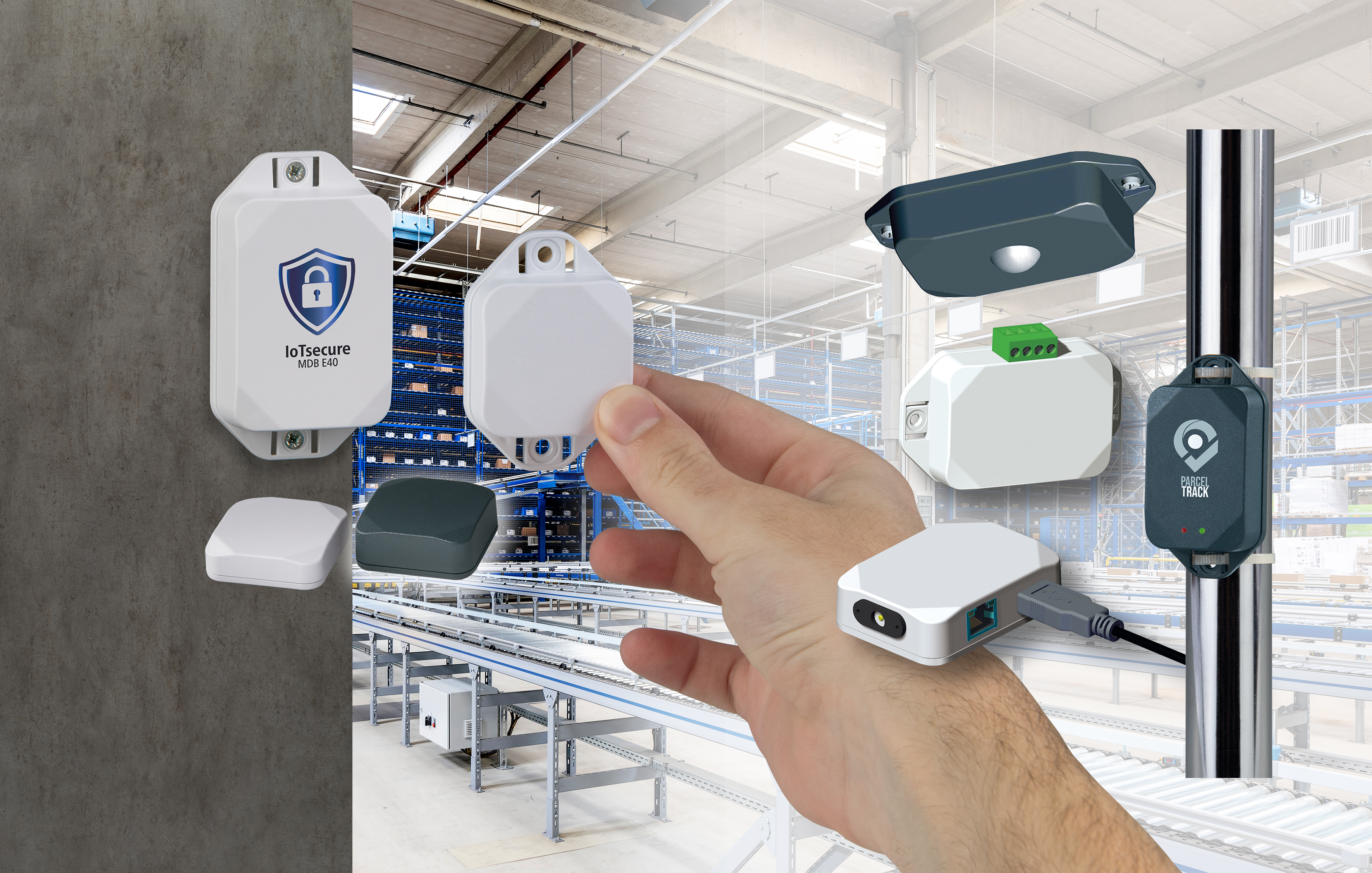

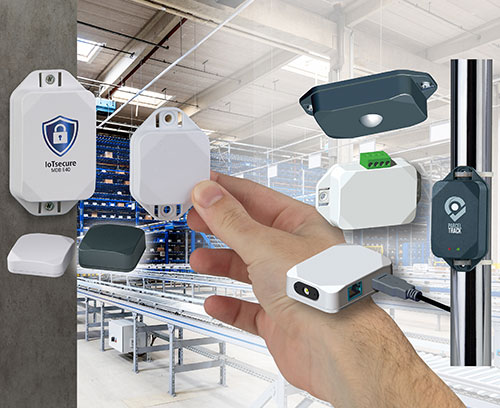

MINI-DATA-BOX: il nuovo contenitore di piccole dimensioni con quel tocco in più

AltText

Small yet robust enclosures are needed for the integration of miniaturised electronic components, sensors and radio technology. The MINI-DATA-BOX range of plastic enclosures by OKW Gehäusesysteme GmbH is ideal for this purpose. On top of that, with its designer corners that play gently with the light, it provides an extremely high-quality look with a new lightness.

The new MINI-DATA-BOX is ideal for modern indoor and outdoor communication units (protection class IP40 as standard, can be increased to IP65 with the seal which is available as an accessory). The enclosures can be used as wall-mounted or desktop units, and - due to their mini-dimensions - can even be used as portable applications in your shirt or trouser pocket.

The total of 32 versions of the MINI-DATA-BOX are available from stock in a flame-resistant, UV-resistant ASA+PC-FR material (UL 94 V-0) in the standard colours traffic white (RAL 9016) or anthracite grey (RAL 7016). There is the basic shape S (Square) in 40 x 40 mm and 50 x 50 mm (L x W) as well as the basic shape E (Edge) in 40 x 60 mm and 50 x 70 mm; both are available in heights of 15 and 20 mm. In order to further expand the application and mounting options, the bottom parts are available with and without flanges. These allow quick wall mounting by means of externally accessible screws or cable ties, for example, thanks to fully integrated external lugs.

Due to its versatility and high-quality appearance, the MINI-DATA-BOX can be used in a wide variety of application areas, e.g. as a stationary measuring or control device on walls, ceilings or directly on machines by means of magnetic attachment, in all areas of the IoT and Industrial IoT, in smart logistics or in information and communication technology (ICT). In addition, the in-house Service Centre offers many options for creating a customised product from the standard enclosure, e.g. through mechanical processing, printing, painting, laser marking, EMC coating or even assembly work.

Link website MINI-DATA-BOX
