Accessori per contenitori
A0354270

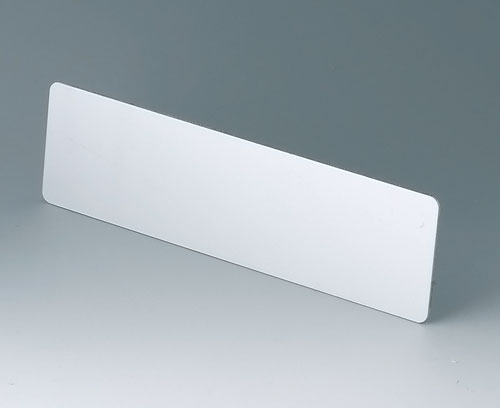

Front / rear panel 42 TE 1.5 HE
Front/rear panel for case 42 TE 1.5 HE.
Supply1 front panel
Disegno PDF 2D
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per A0354270
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
A0105270
Side panel 0.5 HE
Side panel 0.5 HE for enlarging the height. For combination with case shell (safely locks with each other by pressure).
Supply 1 side panel
A0105270
Side panel 0.5 HEProdotto aggiunto alla lista
off-white RAL 9002
250x22,25mm
A0105280
Side panel 0.5 HE
Side panel 0.5 HE for enlarging the height. For combination with case shell (safely locks with each other by pressure).
Supply 1 side panel
A0105280
Side panel 0.5 HEProdotto aggiunto alla lista
pebble grey RAL 7032
250x22,25mm
A0106270
Side panel 0.5 HE, for handle mounting
Side panel 0.5 HE with hole for handle for enlarging the height. For combination with case shell (safely locks with each other by pressure).
Supply 1 side panel
A0106270
Side panel 0.5 HE, for handle mountingProdotto aggiunto alla lista
off-white RAL 9002
250x22,25mm
A0106280
Side panel 0.5 HE, for handle mounting
Side panel 0.5 HE with hole for handle for enlarging the height. For combination with case shell (safely locks with each other by pressure).
Supply 1 side panel
A0106280
Side panel 0.5 HE, for handle mountingProdotto aggiunto alla lista
pebble grey RAL 7032
250x22,25mm
A0114170
Shell 42 TE
The case shells (2 pcs necessary) safely lock with each other by pressure. With injection-moulded fixing towers for PCB mounting. For combination with side panel and snap-in panel (separate article).
Supply 1 shell
A0114170
Shell 42 TEProdotto aggiunto alla lista
off-white RAL 9002
260x250x27mm
A0114370
Snap-in panel, without slots
Snap-in panel without slots for the top. For locking in the case shells.
Supply 1 snap-in panel without slots
A0114370
Snap-in panel, without slotsProdotto aggiunto alla lista
off-white RAL 9002
A0124370
Snap-in panel, with slots
Snap-in panel with slots for the top. For locking in the case shells.
Supply 1 snap-in panel with slots
A0124370
Snap-in panel, with slotsProdotto aggiunto alla lista
off-white RAL 9002
A0134370
Snap-in panel, without slots, with feet
Snap-in panel without slots, with feet for the bottom. For locking in the case shells.For combination with tilt feet (see accessory).
Supply 1 snap-in panel without slots, with feet
A0134370
Snap-in panel, without slots, with feetProdotto aggiunto alla lista
off-white RAL 9002
A0144370
Snap-in panel with, slots, with feet
Snap-in panel with slots, with feet for the bottom. For locking in the case shells. For combination with tilt feet (see accessory).
Supply 1 snap-in panel with slots
A0144370
Snap-in panel with, slots, with feetProdotto aggiunto alla lista
off-white RAL 9002
A0344216
Handle 42 TE
For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons pepple grey RAL 7032. For combination with side panel with hole for handle.
Supply 2 side arms, 1 aluminium section, 2 fastenings screws
A0344216
Handle 42 TEProdotto aggiunto alla lista
off-white RAL 9002
A0344217
Handle 42 TE
For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons off white RAL 9002. For combination with side panel with hole for handle.
Supply 2 side arms, 1 aluminium section, 2 fastenings screws
A0344217
Handle 42 TEProdotto aggiunto alla lista
off-white RAL 9002
A0344218
Handle 42 TE
For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms pepple grey RAL 7032 / push buttons off-white RAL 9002. For combination with side panel with hole for handle.
Supply 2 side arms, 1 aluminium section, 2 fastenings screws
A0344218
Handle 42 TEProdotto aggiunto alla lista
pebble grey RAL 7032
Customising options for A0354270
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Larghezza
250,8 mm
Altezza
68,5 mm
Spessore
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 76 KB
- AutoCAD DWG-File 273 KB
- AutoCAD DXF-File 669 KB
Weight/1 part
92 g
Customs tariff number
(OKW product)
(OKW product)
76069200
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione A0354270 e non dimenticare di chiedere la quotazione!
