Accessori per contenitori
A0105270

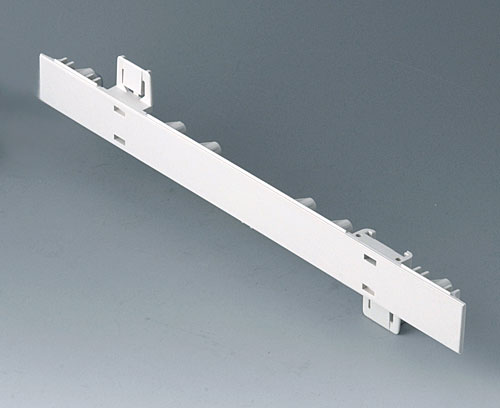

Side panel 0.5 HE
Side panel 0.5 HE for enlarging the height. For combination with case shell (safely locks with each other by pressure).
Supply1 side panel
Disegno PDF 2D
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per A0105270
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
System components to complete
A0114170
Shell 42 TE
The case shells (2 pcs necessary) safely lock with each other by pressure. With injection-moulded fixing towers for PCB mounting. For combination with side panel and snap-in panel (separate article).
Supply 1 shell
A0114170
Shell 42 TEProdotto aggiunto alla lista
off-white RAL 9002
260x250x27mm
A0114370
Snap-in panel, without slots
Snap-in panel without slots for the top. For locking in the case shells.
Supply 1 snap-in panel without slots
A0114370
Snap-in panel, without slotsProdotto aggiunto alla lista
off-white RAL 9002
A0116170
Shell 63 TE
The case shells (2 pcs necessary) safely lock with each other by pressure. With injection-moulded fixing towers for PCB mounting. For combination with side panel and snap-in panel (separate Article).
Supply 1 shell
A0116170
Shell 63 TEProdotto aggiunto alla lista
off-white RAL 9002
367x250x27mm
A0116370
Snap-in panel, without slots
Snap-in panel without slots for the top. For locking in the case shells.
Supply 1 snap-in panel without slots
A0116370
Snap-in panel, without slotsProdotto aggiunto alla lista
off-white RAL 9002
A0124370
Snap-in panel, with slots
Snap-in panel with slots for the top. For locking in the case shells.
Supply 1 snap-in panel with slots
A0124370
Snap-in panel, with slotsProdotto aggiunto alla lista
off-white RAL 9002
A0126370
Snap-in panel, with slots
Snap-in panel with slots for the top. For locking in the case shells.
Supply 1 snap-in panel with slots
A0126370
Snap-in panel, with slotsProdotto aggiunto alla lista
off-white RAL 9002
A0134370
Snap-in panel, without slots, with feet
Snap-in panel without slots, with feet for the bottom. For locking in the case shells.For combination with tilt feet (see accessory).
Supply 1 snap-in panel without slots, with feet
A0134370
Snap-in panel, without slots, with feetProdotto aggiunto alla lista
off-white RAL 9002
A0136370
Snap-in panel, without slots, with feet
Snap-in panel without slots, with feet for the bottom. For locking in the case shells. For combination with tolt feet (see accessory).
Supply 1 snap-in panel without slots
A0136370
Snap-in panel, without slots, with feetProdotto aggiunto alla lista
off-white RAL 9002
A0144370
Snap-in panel with, slots, with feet
Snap-in panel with slots, with feet for the bottom. For locking in the case shells. For combination with tilt feet (see accessory).
Supply 1 snap-in panel with slots
A0144370
Snap-in panel with, slots, with feetProdotto aggiunto alla lista
off-white RAL 9002
A0146370
Snap-in panel, with slots, with feet
Nap-in panel with slots, with feet for the bottom. For locking in the case shells. For the combination with tilt feet (see accessory).
Supply 1 snap-in panel with slots
A0146370
Snap-in panel, with slots, with feetProdotto aggiunto alla lista
off-white RAL 9002
Accessory to complete
A0354270
Front / rear panel 42 TE 1.5 HE
Front/rear panel for case 42 TE 1.5 HE.
Supply 1 front panel
A0354270
Front / rear panel 42 TE 1.5 HEProdotto aggiunto alla lista
matt anodised
250,8x68,5x2mm
Accessory
A0350007
Tilt foot
The tilt foot is used for canting the unit. It can be locked into the case bottom and is retractable.
Supply 1 tilt foot
A0350007
Tilt footProdotto aggiunto alla lista
off-white RAL 9002
Customising options for A0105270
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Profindità
250 mm
Altezza
22,25 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 151 KB
- AutoCAD DWG-File 308 KB
- AutoCAD DXF-File 1.149 KB
Weight/1 part
25 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione A0105270 e non dimenticare di chiedere la quotazione!
