B7246063

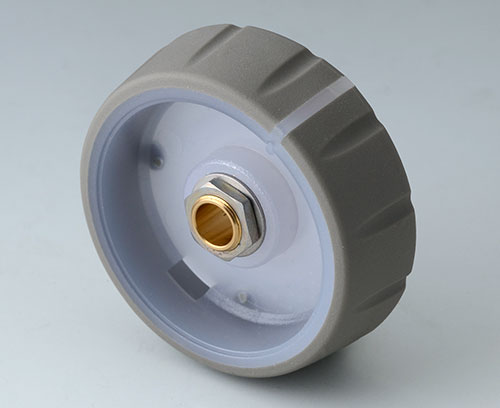

CONTROL-KNOBS 46, optional illumination

Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version

With optional illumination – translucent optic ring on the top surface and pointer line on the side

Supply

1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "screws"

AltText

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6207009

Round nut M7 x 0.75
Prodotto aggiunto alla lista
AltText

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6210009

Round nut M10 x 0.75
Prodotto aggiunto alla lista
AltText

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6295009

Round nut 3/8"-32G
Prodotto aggiunto alla lista
AltText

A6300000

Spanner For tightening the round nut.

Supply 1 spanner

Chiudi

A6300000

Spanner
Prodotto aggiunto alla lista

Accessory

AltText

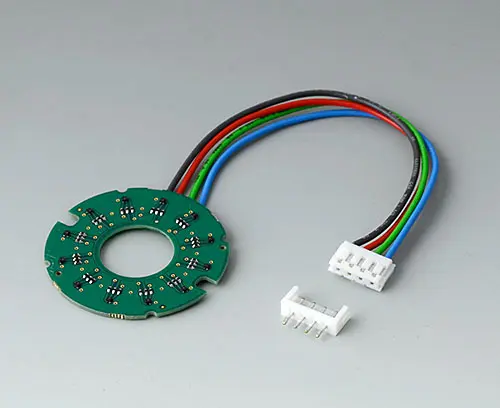

B7546002

LED illumination kit, 12 LEDs (RGB backlight)

Board D=37 mm with 12 LEDs (RGB backlight), without controller, SMD technology, connecting cable 120 mm long, 4-pin socket at the end, incl. connector.

Recommended for:

CONTROL-KNOBS 46 with optional illumination
- installation in the bases available as accessories

Supply 1 LED illumination kit (RGB backlight)

Chiudi

B7546002

LED illumination kit, 12 LEDs (RGB backlight)
Prodotto aggiunto alla lista
AltText

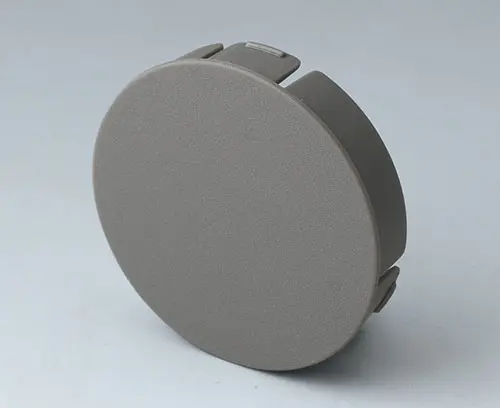

B7546108

Cover 46 Suitable for CONTROL-KNOBS 46. Simply push on.

Supply 1 cover

Chiudi

B7546108

Cover 46
Prodotto aggiunto alla lista
PA 6
volcano
AltText

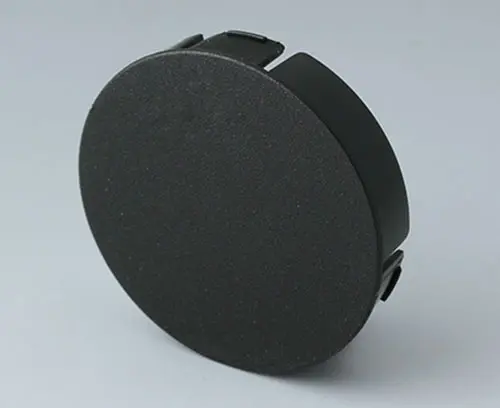

B7546109

Cover 46 Suitable for CONTROL-KNOBS 46. Simply push on.

Supply 1 cover

Chiudi

B7546109

Cover 46
Prodotto aggiunto alla lista
PA 6
nero
AltText

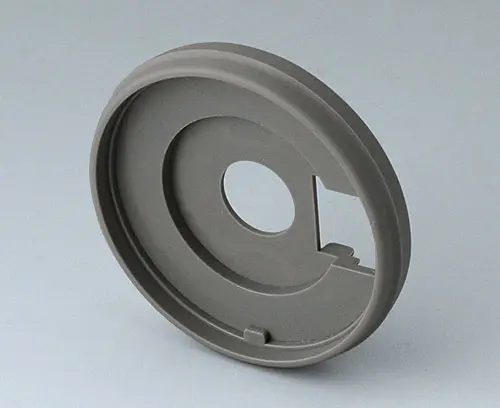

B7546208

Base 46 Suitable for all CONTROL-KNOBS 46. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 46, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 46 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply 1 base

Chiudi

B7546208

Base 46
Prodotto aggiunto alla lista
PA 6
volcano
AltText

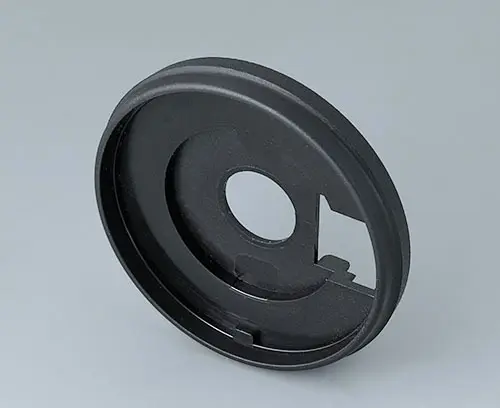

B7546209

Base 46 Suitable for all CONTROL-KNOBS 46. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 46, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 46 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply 1 base

Chiudi

B7546209

Base 46
Prodotto aggiunto alla lista
PA 6
nero

Customising options for B7246063

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
PC
Knob body
TPE
Outer shell
Colore
Outer shell volcano,
Knob body translucent
Diameter
46 mm
Height
14,7 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 453 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
16 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
