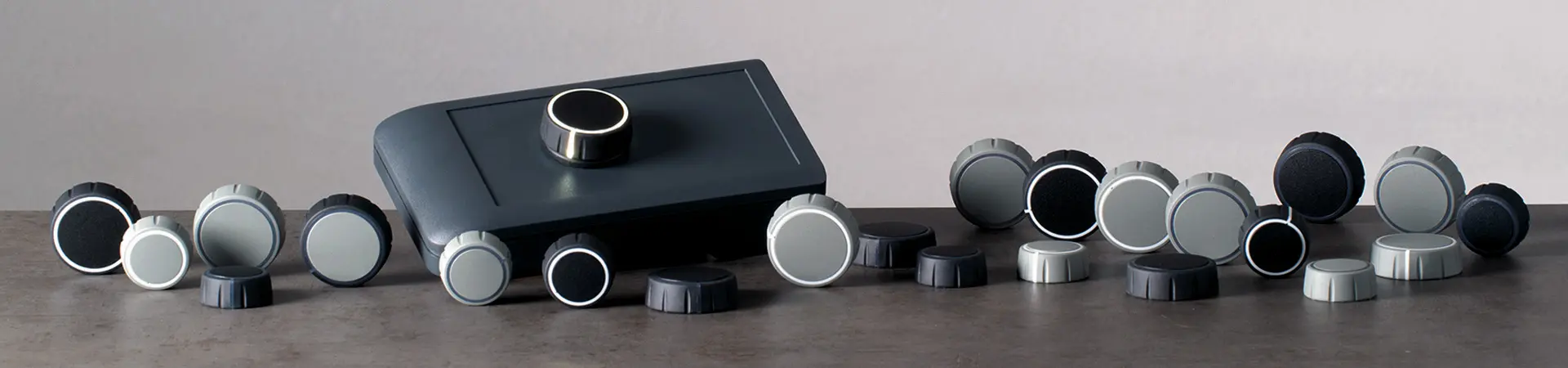

Control-Knobs

Manopole per un elevato comfort di comando

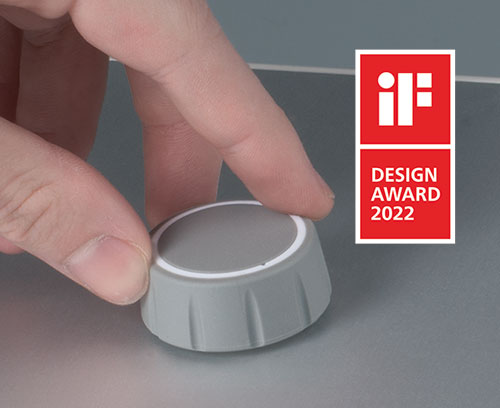

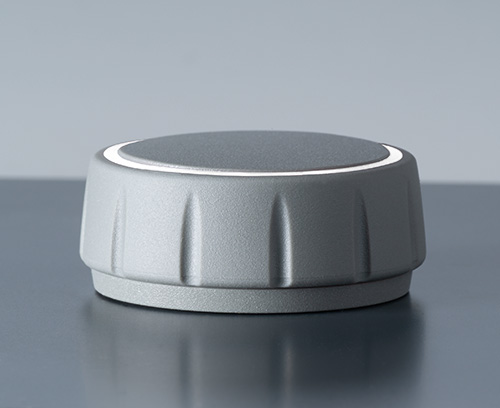

Le nuove CONTROL-KNOBS dispongono di una superficie di presa in materiale Soft-Touch: ottima aderenza, sensazione piacevole al tatto e impiego ergonomico. Il valido aspetto estetico, con possibilità di illuminazione, mette in risalto l’innovativa serie di manopole come elemento centrale delle interfacce basate su menù.

  • Ottima presa con caratteristiche antiscivolo grazie al materiale Soft-Touch
  • Design innovativo delle manopole con due componenti in plastica dura/morbida: corpo della manopola in PC di elevata qualità rivestito con morbido materiale TPE con look funzionale scanalato *** iF product design award 2022 ***

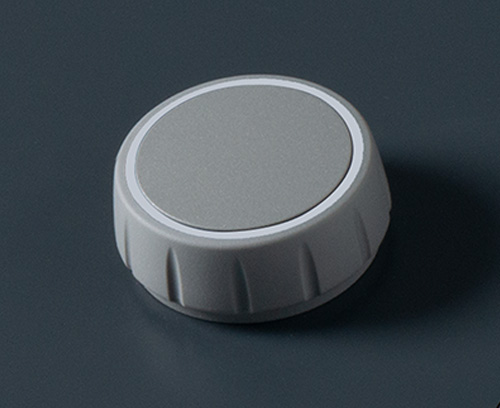

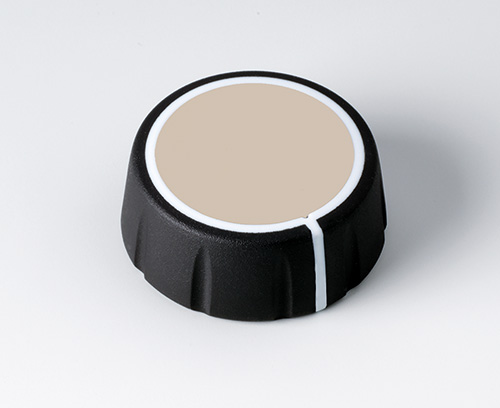

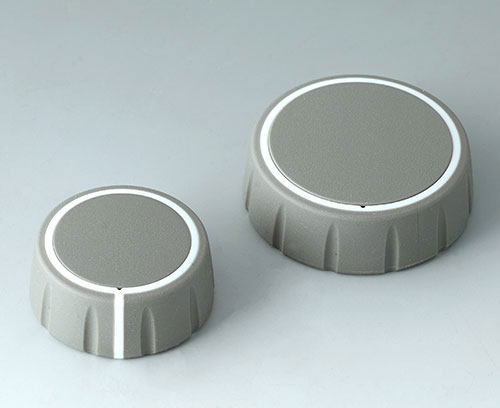

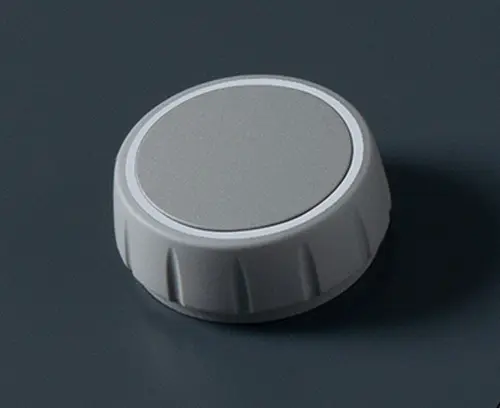

  • Disponibile nelle due misure con ø 36 mm e ø 46 mm, rispettivamente in TPE in due colori standard (nero e grigio cenere)

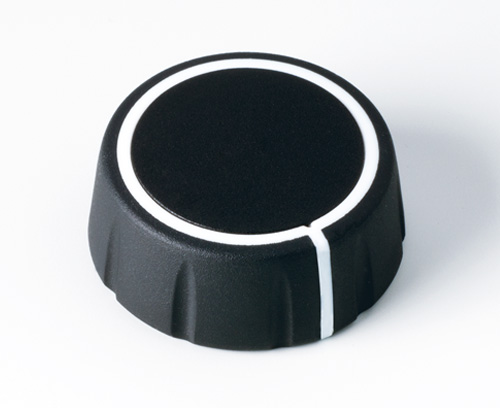

  • CONTROL-KNOBS con/senza linea di indicazione laterale per una regolazione di precisione

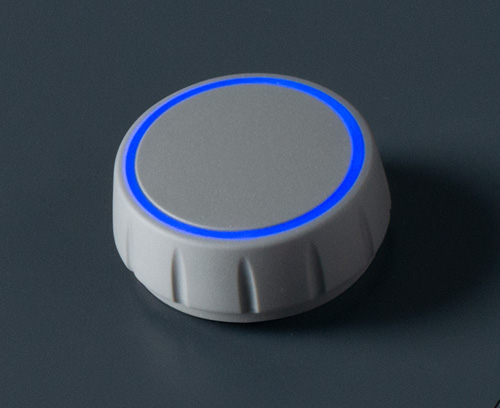

  • CONTROL-KNOBS con/senza illuminazione LED opzionale

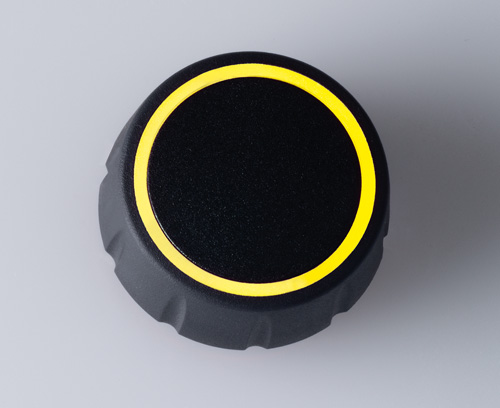

  • Opzioni di illuminazione:
    - A forma di anello sulla parte superiore

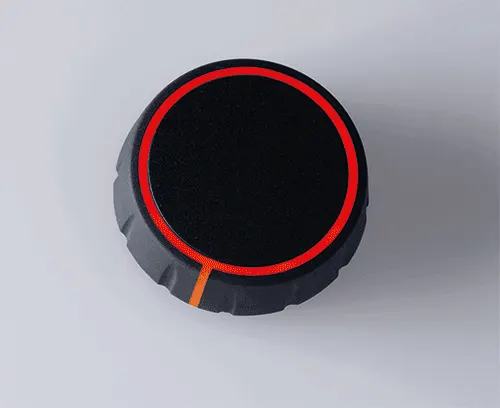

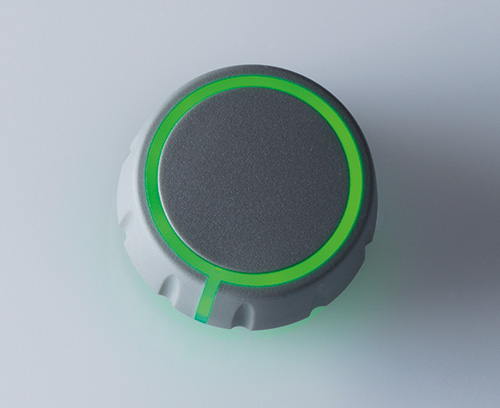

    - A forma di anello sulla parte superiore con linea di indicazione laterale
    Si prega di ordinare, oltre alla CONTROL-KNOBS con illuminazione opzionale, anche la base e l’illuminazione LED, vedi accessori.

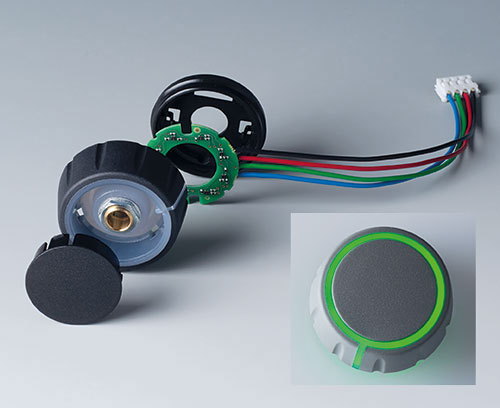

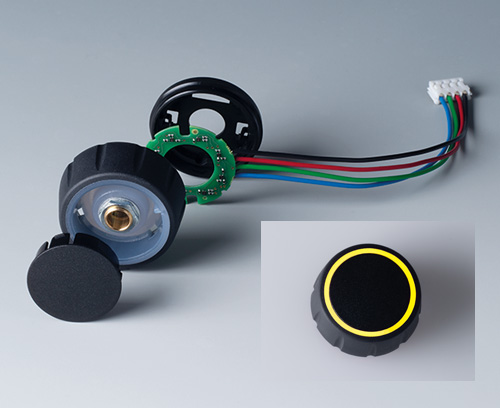

  • L’illuminazione avviene tramite moderna tecnologia LED SMD a risparmio energetico con alimentatori da 5 V; i LED RGB consentono risultati di luce personalizzati

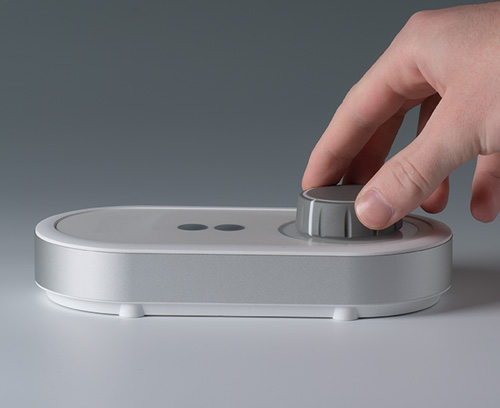

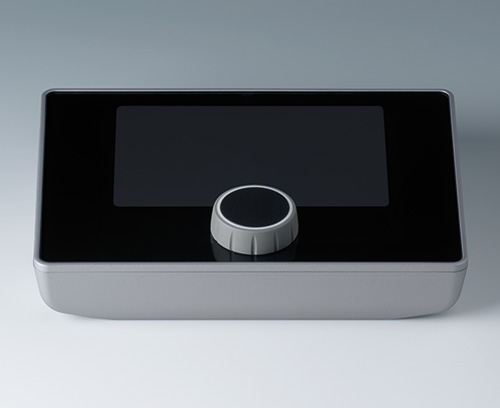

  • Concepite come elementi di comando con funzione rotante e, con generatore di impulsi rotativo adatto, anche con funzione di selezione a pressione per interfacce utente basate su menù di apparecchiature di grandi dimensioni.

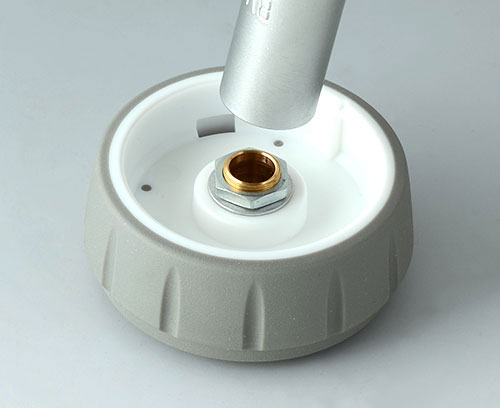

  • Sistema con attacco a pinza di provata validità ben fissato sull'asse
  • Coppia max.: di montaggio = 1,5 Nm, durante l'esercizio = 1,2 Nm
Dimensioni manopole  Fori asse
ø 36 mm 6 mm, 1/4" (6,35 mm)
ø 46 mm 6 mm, 1/4" (6,35 mm)

Numero minimo di componenti per una manopola CONTROL-KNOBS senza illuminazione:
1 CONTROL-KNOBS, 1 coperchio – se necessario può essere combinata anche la base (accessori)

Numero minimo di componenti per una manopola CONTROL-KNOBS con illuminazione LED:

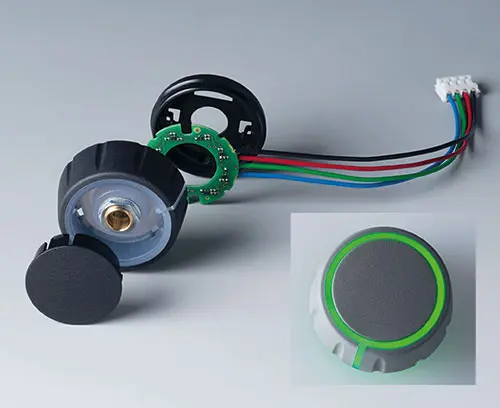

1 CONTROL-KNOBS in versione con illuminazione, 1 coperchio, 1 base, 1 illuminazione LED (retroilluminazione RGB)

Commenti del designer

"Eccellenza a tutto tondo – le moderne manopole piacevoli al tatto consentono di regolare e controllare i processi in modo sicuro e meritano di essere parte integrante dell’interfaccia utente di un prodotto moderno. Queste manopole possono consentire quando serve un utilizzo ottimale dei vostri prodotti anche in punti scomodi e in circostanze difficili - grazie all’estetica robusta e al funzionamento preciso. Le CONTROL-KNOBS sono sempre facili da individuare. Le linee luminose segnalano il luogo, lo stato e la posizione della funzione desiderata. Con o senza guanti, la struttura tattile e il materiale gradevole della superficie di presa trasferiscono senza problemi la forza di rotazione necessaria all’asse della manopola - in ogni condizione di applicazione."
Martin Nußberger, polyform Industrie Design

  • Video

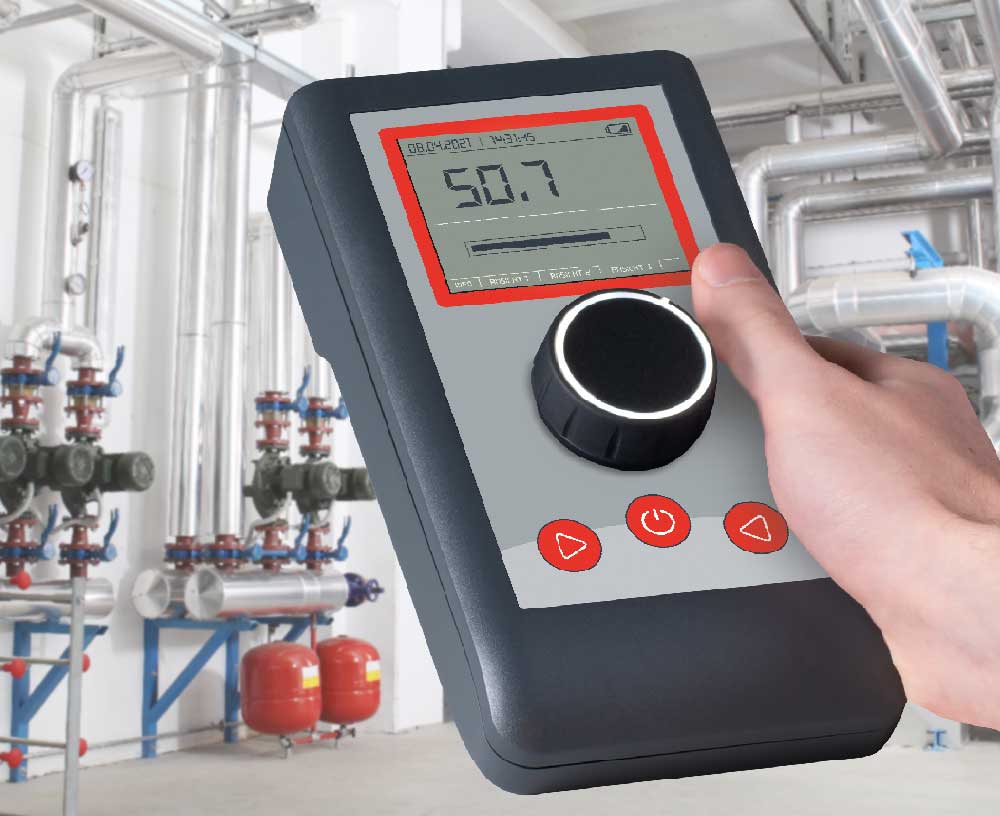

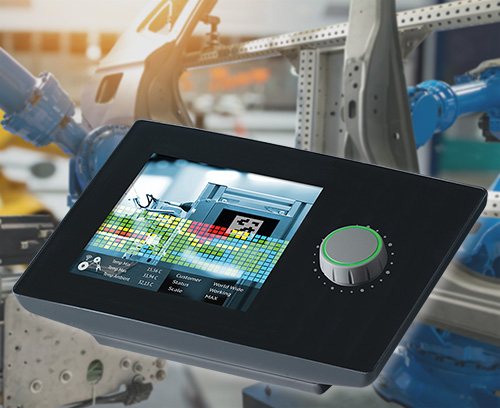

  • Esempi di applicazione

Application fields

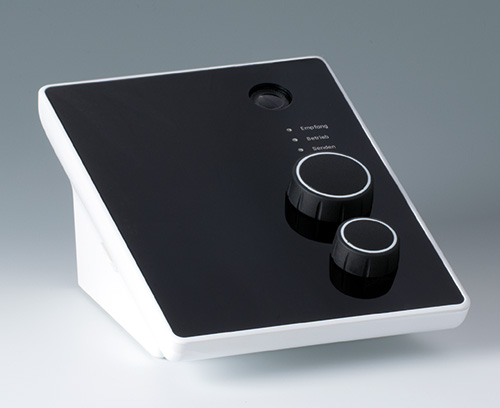

Per potenziometri rotanti o generatore di impulsi rotativo con estremità dell'albero arrotondate secondo DIN 41591, anche con funzione di selezione a pressione.

  • Metrologia e tecnica di regolazione
  • Tecnica medicale e di laboratorio
  • Wellness

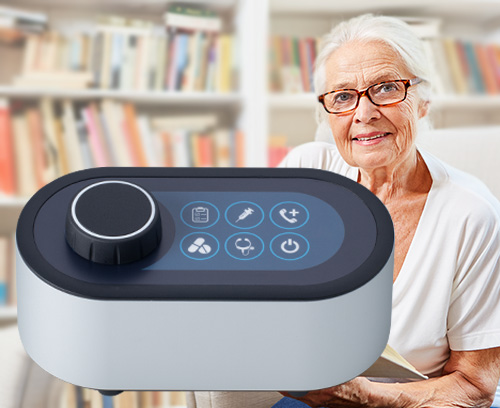

  • Health Care
  • Tecnica di riscaldamento e di condizionamento dell'aria
  • Comunicazione
  • Edifici

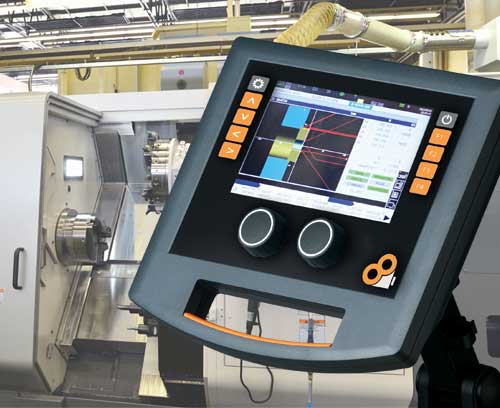

  • Smart Factory
  • Versioni
  • Accessori
  • Modifiche specifiche del cliente

Scegliete la versione e la misura o le misure desiderate oppure cliccate sul pulsante “Seleziona tutti i prodotti” alla fine della lista dei prodotti.

AltText

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6207009

Round nut M7 x 0.75
Prodotto aggiunto alla lista
AltText

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6210009

Round nut M10 x 0.75
Prodotto aggiunto alla lista
AltText

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6295009

Round nut 3/8"-32G
Prodotto aggiunto alla lista
AltText

A6300000

Spanner For tightening the round nut.

Supply 1 spanner

Chiudi

A6300000

Spanner
Prodotto aggiunto alla lista
AltText

B7536108

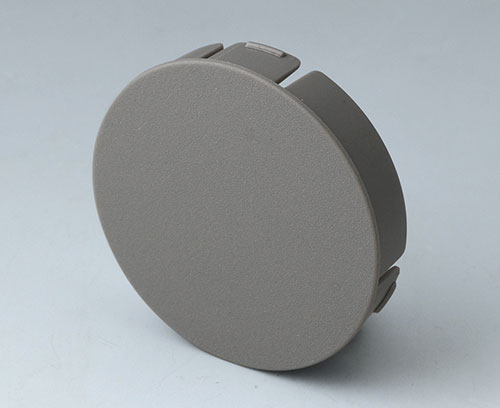

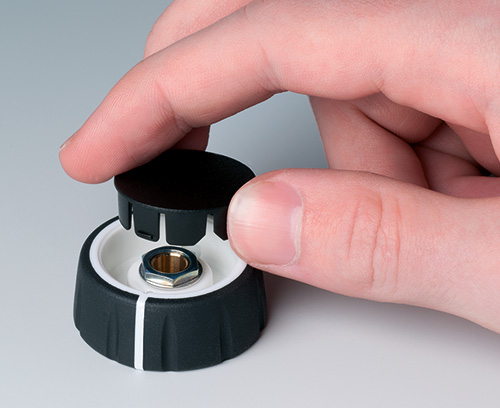

Cover 36 Suitable for CONTROL-KNOBS 36. Simply push on.

Supply 1 cover

Chiudi

B7536108

Cover 36
Prodotto aggiunto alla lista
PA 6
volcano
AltText

B7536109

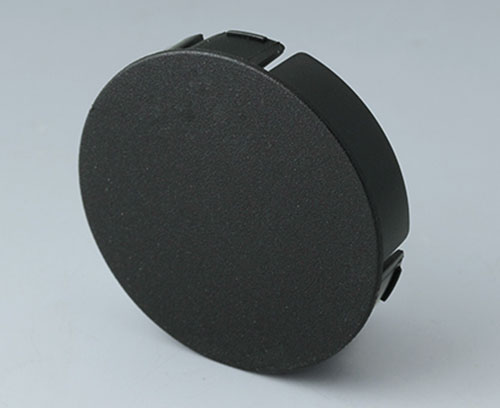

Cover 36 Suitable for CONTROL-KNOBS 36. Simply push on.

Supply 1 cover

Chiudi

B7536109

Cover 36
Prodotto aggiunto alla lista
PA 6
nero
AltText

B7536208

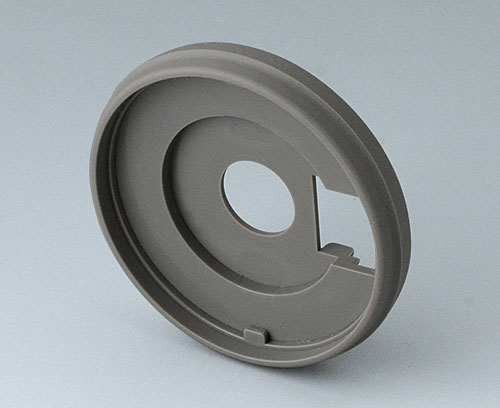

Base 36 Suitable for all CONTROL-KNOBS 36. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 36, optional illumination" for installing the LED illumination.

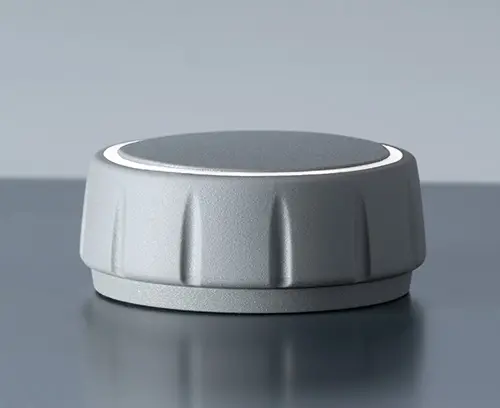

- On request, can also be used for all "CONTROL-KNOBS 36 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply 1 base

Chiudi

B7536208

Base 36
Prodotto aggiunto alla lista
PA 6
volcano
AltText

B7536209

Base 36 Suitable for all CONTROL-KNOBS 36. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 36, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 36 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply 1 base

Chiudi

B7536209

Base 36
Prodotto aggiunto alla lista
PA 6
nero
AltText

B7546001

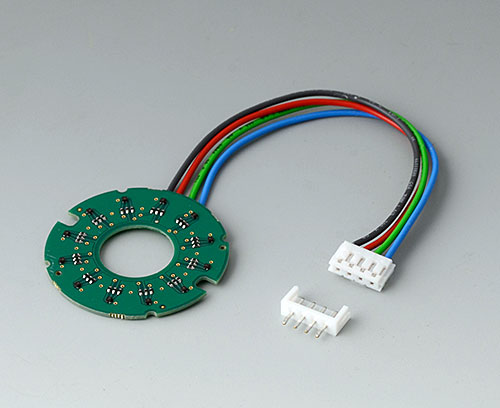

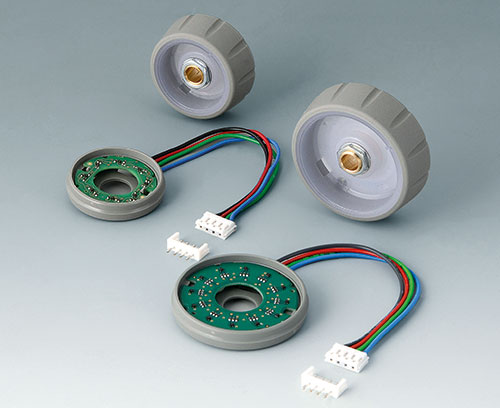

LED illumination kit, 8 LEDs (RGB backlight)

Board D=27 mm with 8 LEDs (RGB backlight), without controller, SMD technology, connecting cable 120 mm long, 4-pin socket at the end, incl. connector.

Recommended for:

STAR-KNOBS 33 / 41
- flush-fitting version: only in conjunction with the diamond knob
- surface-mounted version: only in conjunction with the diamond assembly kit

CONTROL-KNOBS 36 with optional illumination
- installation in the bases available as accessories

Supply 1 LED illumination kit (RGB backlight)

Chiudi

B7546001

LED illumination kit, 8 LEDs (RGB backlight)
Prodotto aggiunto alla lista
AltText

B7546002

LED illumination kit, 12 LEDs (RGB backlight)

Board D=37 mm with 12 LEDs (RGB backlight), without controller, SMD technology, connecting cable 120 mm long, 4-pin socket at the end, incl. connector.

Recommended for:

CONTROL-KNOBS 46 with optional illumination
- installation in the bases available as accessories

Supply 1 LED illumination kit (RGB backlight)

Chiudi

B7546002

LED illumination kit, 12 LEDs (RGB backlight)
Prodotto aggiunto alla lista
AltText

B7546108

Cover 46 Suitable for CONTROL-KNOBS 46. Simply push on.

Supply 1 cover

Chiudi

B7546108

Cover 46
Prodotto aggiunto alla lista
PA 6
volcano
AltText

B7546109

Cover 46 Suitable for CONTROL-KNOBS 46. Simply push on.

Supply 1 cover

Chiudi

B7546109

Cover 46
Prodotto aggiunto alla lista
PA 6
nero
AltText

B7546208

Base 46 Suitable for all CONTROL-KNOBS 46. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 46, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 46 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply 1 base

Chiudi

B7546208

Base 46
Prodotto aggiunto alla lista
PA 6
volcano
AltText

B7546209

Base 46 Suitable for all CONTROL-KNOBS 46. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 46, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 46 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply 1 base

Chiudi

B7546209

Base 46
Prodotto aggiunto alla lista
PA 6
nero

Opzioni prodotto per Control-Knobs

Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
