TOPTEC

Toptec

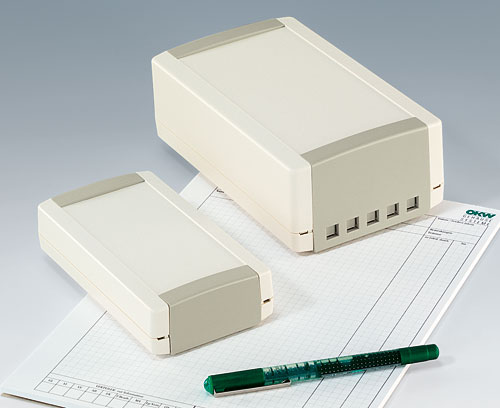

Contenitori universali in plastica

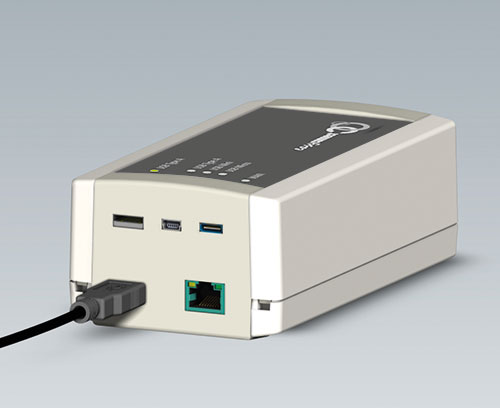

I contenitori TOPTEC di OKW sono già predisposti su entrambi i lati per il montaggio di interfacce che sporgono oltre la larghezza vera e propria del contenitore. Non è più necessario collegare i connettori alla parete del contenitore e il cavo di connessione alla scheda.

  • Design elegante per applicazioni da scrivania o a muro in interni
  • Montaggio pratico e senza viti del contenitore
  • Parte inferiore aperta lateralmente per poter installare i componenti in modo rapido e facile su tutti i lati.

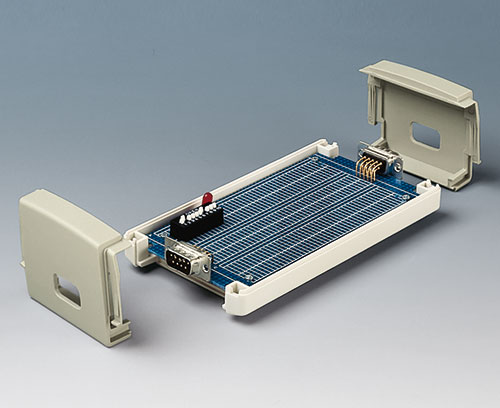

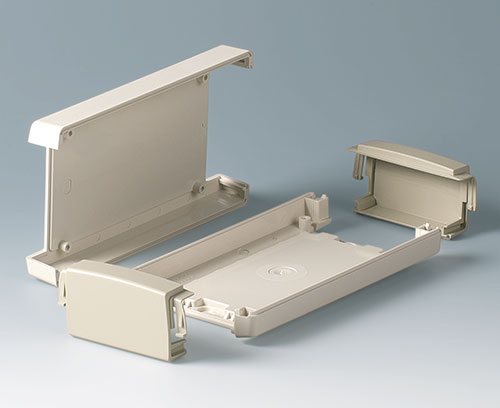

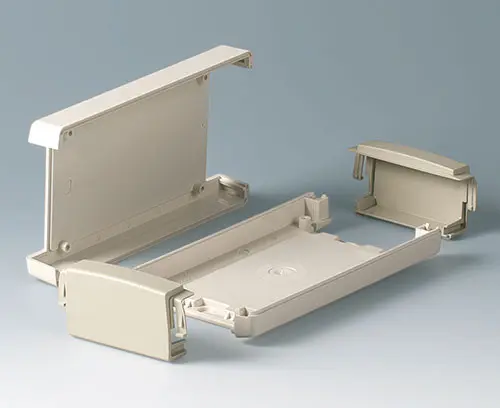

  • Per la prima volta i componenti elettronici e le interfacce possono essere incorporati già assemblati grazie alla possibilità di staccare lateralmente le unità frontali

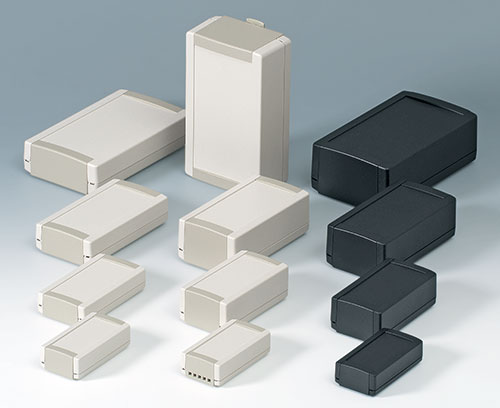

  • Vasta scelta tra 28 modelli

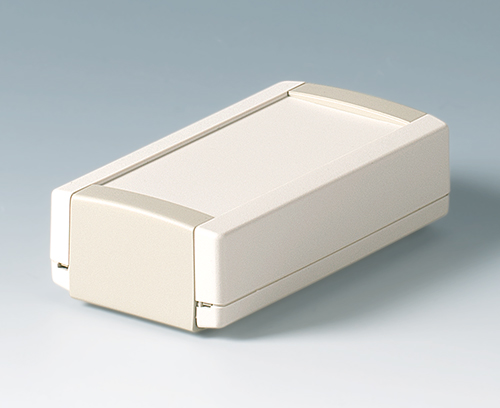

  • Tipo F con parte superiore piatta

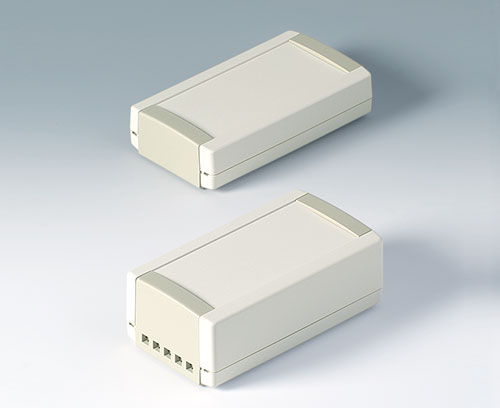

  • Tipo H con parte superiore rialzata

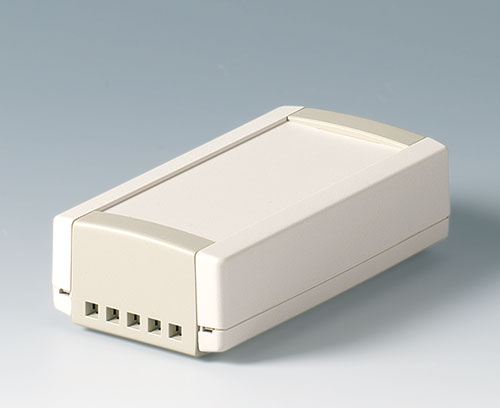

  • Unità frontali amovibili a scelta con/senza fessure di ventilazione per la dispersione del calore o per l'acustica

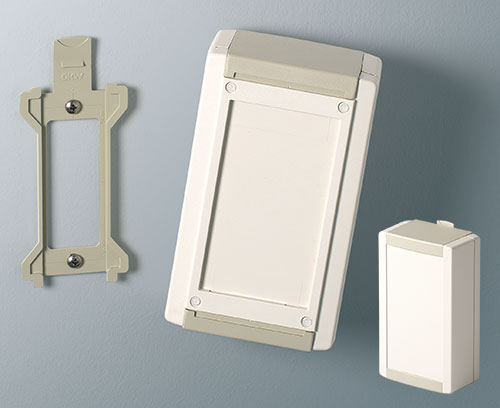

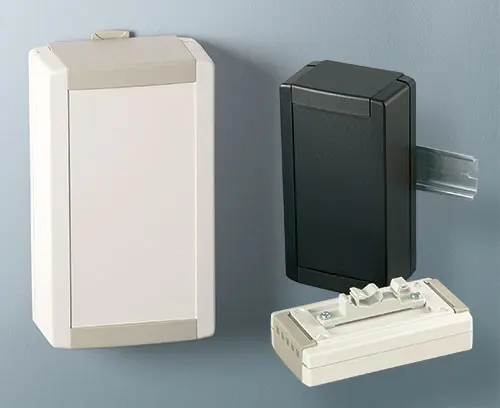

  • Fissaggio a muro ottimale senza necessità di modificare il contenitore grazie a supporti da parete a scomparsa con meccanismo di arresto a scatto

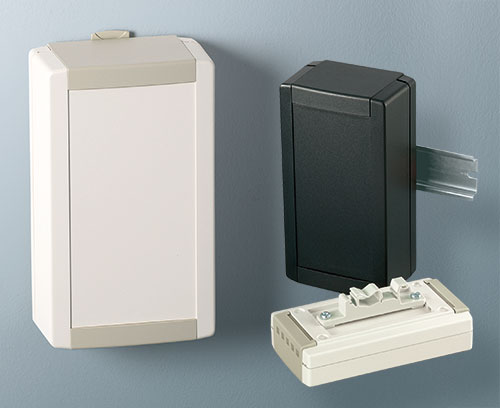

  • Fissaggio pratico su guide DIN
  • Grado di protezione IP 40

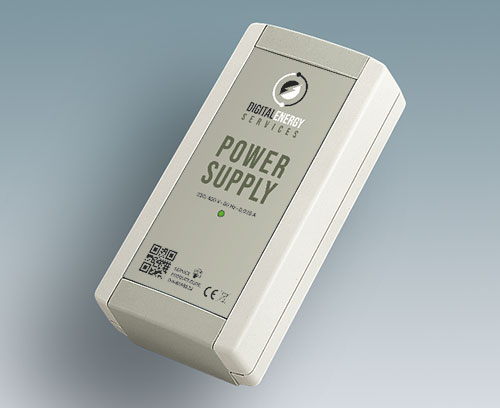

  • Superficie di comando incavata a protezione della tastiera a membrana
  • Punti di fissaggio per circuiti stampati e componenti di montaggio

Application Fields

Contenitori universali per dispositivi elettronici ed elettrotecnici, per es. tecnologia di monitoraggio come dispositivi di controllo, impianti di segnalazione e comandi, tecnica medicale e di laboratorio, periferiche di computer, automazione e IoT/IIoT.

Scegliete la versione e la misura o le misure desiderate oppure cliccate sul pulsante “Seleziona tutti i prodotti” alla fine della lista dei prodotti.

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Prodotto aggiunto alla lista
A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

A9199008

Set of screws
Prodotto aggiunto alla lista
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9207150

Anti-slide feet 6.5 x 2 mm
Prodotto aggiunto alla lista
transparent
A9325018 Pole/mast mounting bracket

A9325018

Pole/mast mounting bracket

For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.

Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.

Supply 1 pole/mast mounting bracket

A9325018

Pole/mast mounting bracket
Prodotto aggiunto alla lista

anthracite grey RAL 7016
100x100x20mm

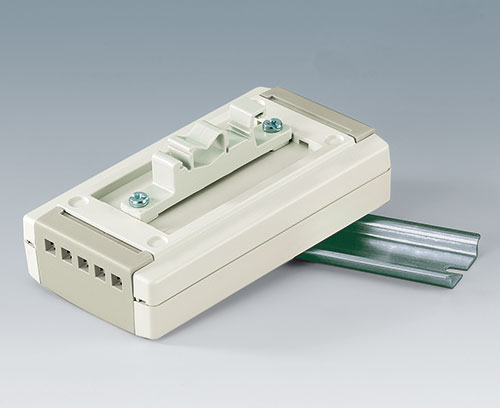

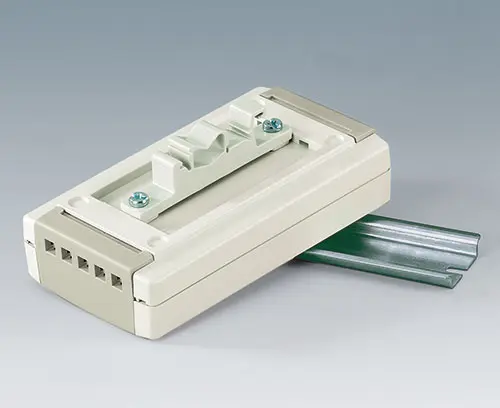

B1300017 Fastening element for DIN-Rails

B1300017

Fastening element for DIN-Rails Especially for TOPTEC starting from size 123 F/H and EVOTEC 100/125/150. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply 1 piece incl, assembly kit

B1300017

Fastening element for DIN-Rails
Prodotto aggiunto alla lista

off-white RAL 9002
B1300019 Fastening element for DIN-Rails

B1300019

Fastening element for DIN-Rails Especially for TOPTEC starting from size 123 F/H. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply 1 piece incl, assembly kit

B1300019

Fastening element for DIN-Rails
Prodotto aggiunto alla lista

black RAL 9005

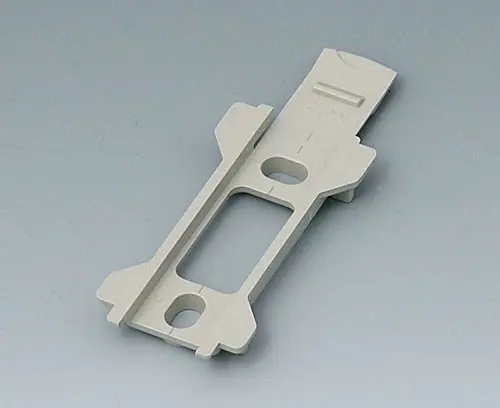

B1340028 Wall suspension element for Toptec 102

B1340028

Wall suspension element for Toptec 102 Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element

B1340028

Wall suspension element for Toptec 102
Prodotto aggiunto alla lista

pebble grey RAL 7032

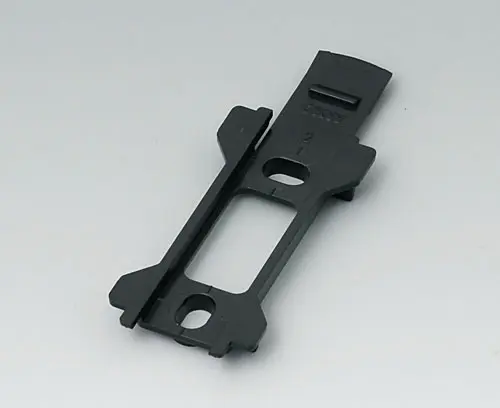

B1340029 Wall suspension element for Toptec 102

B1340029

Wall suspension element for Toptec 102 Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element

B1340029

Wall suspension element for Toptec 102
Prodotto aggiunto alla lista

black RAL 9005

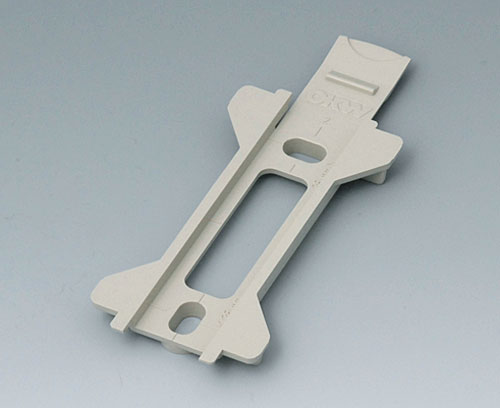

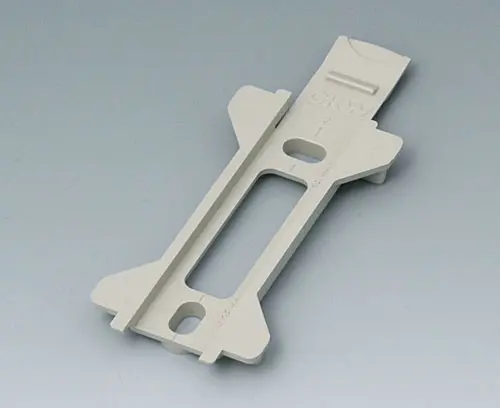

B1350028 Wall suspension element for Toptec 123

B1350028

Wall suspension element for Toptec 123 Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element

B1350028

Wall suspension element for Toptec 123
Prodotto aggiunto alla lista

pebble grey RAL 7032

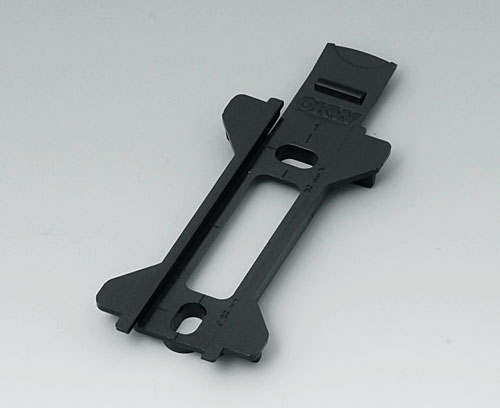

B1350029 Wall suspension element for Toptec 123

B1350029

Wall suspension element for Toptec 123 Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element

B1350029

Wall suspension element for Toptec 123
Prodotto aggiunto alla lista

black RAL 9005

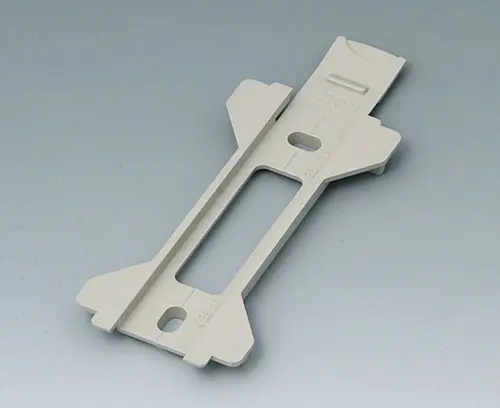

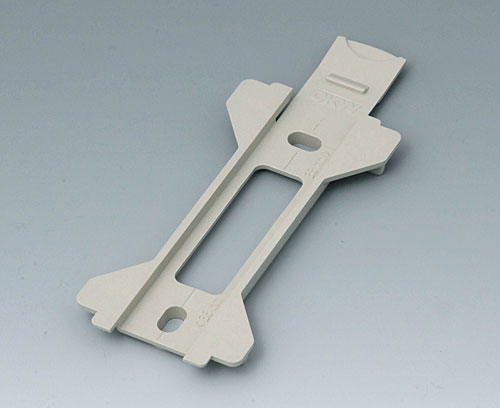

B1360028 Wall suspension element for Toptec 154

B1360028

Wall suspension element for Toptec 154 Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element

B1360028

Wall suspension element for Toptec 154
Prodotto aggiunto alla lista

pebble grey RAL 7032
B1360029 Wall suspension element for Toptec 154

B1360029

Wall suspension element for Toptec 154 Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element

B1360029

Wall suspension element for Toptec 154
Prodotto aggiunto alla lista

black RAL 9005

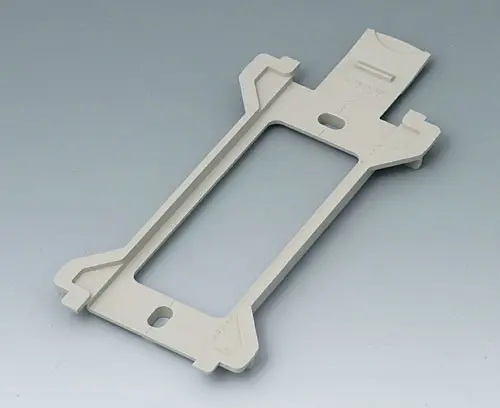

B1370028 Wall suspension element for Toptec 194

B1370028

Wall suspension element for Toptec 194 Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element

B1370028

Wall suspension element for Toptec 194
Prodotto aggiunto alla lista

pebble grey RAL 7032

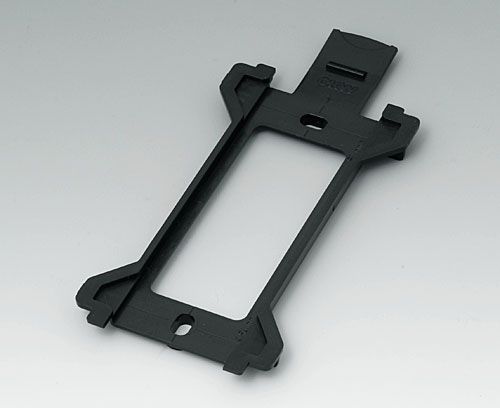

B1370029 Wall suspension element for Toptec 194

B1370029

Wall suspension element for Toptec 194 Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element

B1370029

Wall suspension element for Toptec 194
Prodotto aggiunto alla lista

black RAL 9005

Opzioni prodotto per Toptec

Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
