Accessori per contenitori
B4054217
UNITEC S, 1.4/1.4

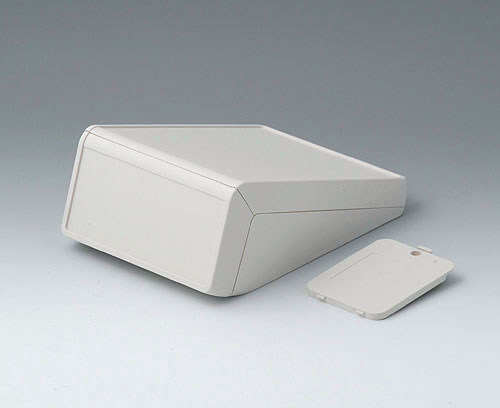

Plastic enclosure with two operating panels at right angeles to each other, optionally for single or dual use. Front part recessed 1.4 mm. Top part recessed 1.4 mm. Two membrane keyboards may be used! Fastening pillars for mounting of PCBs in top, base and front part.
VersionWith battery compartment 3 x AA
Supply1 bottom part, top part and front part, 1 battery compartment and lid, battery clips nickel-plated, assembly kit
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B4054217
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "wall/holder"
B4154307
Wall suspension element S
Covered wall-fixing. Having a functional and an optically elegant design, the wall-suspension kit offers a sophisticated appearance. Two part construction. The adapter will be fixed to the case and then locked onto the wall-holder.
Supply 1 wall suspension element, 1 adapter with assembly kit
B4154307
Wall suspension element SProdotto aggiunto alla lista
Accessory "screws"
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Prodotto aggiunto alla lista
Accessory
A9212330
Anti-slide feet 12 x 3.5 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9212330
Anti-slide feet 12 x 3.5 mmProdotto aggiunto alla lista
Customising options for B4054217
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Materiale
Protection class
Colore
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Larghezza
125 mm
Profindità
177 mm
Altezza
69 mm
PCB length, base
134 mm
PCB width, base
112 mm
PCB length, top
148 mm
PCB width, top
112 mm
Keypad length
149 mm
Keypad width
108,4 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 482 KB
- AutoCAD DWG-File 1.627 KB
- AutoCAD DXF-File 6.402 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 5.822 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 0000992A.x_t 8.335 KB
- 0000992A.STEP 20.392 KB
- 0000992A.SAT 17.228 KB
Weight/1 part
218 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
