SYNERGY E160

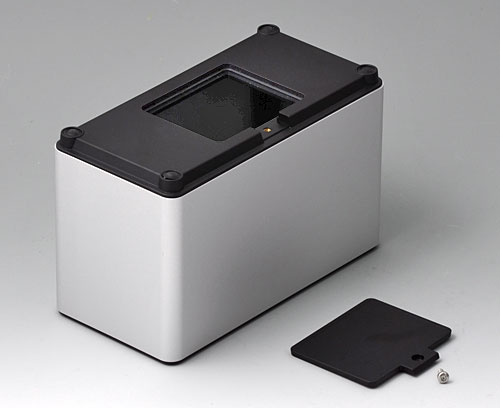

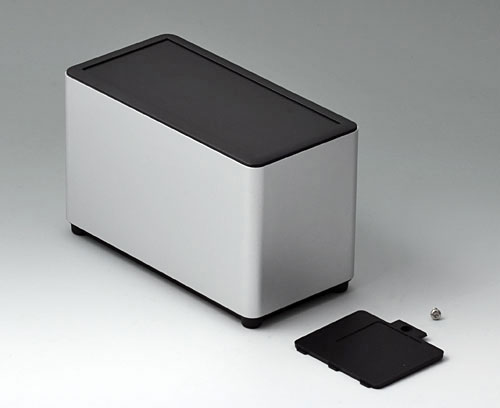

4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.
SupplyTop part, bottom part, lid, aluminium profile, assembly kit
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per EE169059
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "battery"
A9193033
Polarity reversal protection device, positive terminal AA
For AA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.
Supply Polarity reversal protection device
A9193033
Polarity reversal protection device, positive terminal AAProdotto aggiunto alla lista
off-white RAL 9002
A9193034
Polarity reversal protection device, positive terminal AAA
For AAA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.
Supply Polarity reversal protection device
A9193034
Polarity reversal protection device, positive terminal AAAProdotto aggiunto alla lista
off-white RAL 9002
A9193035
Battery clip, AA
For AA round cells. For installation on PCBs. 2 pcs required per round cell.
Supply 1 battery clip
A9193035
Battery clip, AAProdotto aggiunto alla lista
nickel-plated
A9193036
Battery clip, AAA
For AAA round cells. For installation on PCBs. 2 pcs required per round cell.
Supply 1 battery clip
A9193036
Battery clip, AAAProdotto aggiunto alla lista
nickel-plated
A9193037
Button cell holder, Ø 20 mm
For button cells with Ø 20 mm, e.g. CR2016, CR2025, CR2032. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193037
Button cell holder, Ø 20 mmProdotto aggiunto alla lista
A9193038
Button cell holder, Ø 23 mm
For button cells with Ø 23 mm, e.g. CR2320, CR2325, CR2354. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193038
Button cell holder, Ø 23 mmProdotto aggiunto alla lista
A9193039
Button cell holder, Ø 12 mm
For button cells with Ø 12 mm, e.g. CR1216, CR1220. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193039
Button cell holder, Ø 12 mmProdotto aggiunto alla lista
A9193040
Button cell holder, Ø 16 mm
For button cells with Ø 16 mm, e.g. CR1612, CR1620. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193040
Button cell holder, Ø 16 mmProdotto aggiunto alla lista
EZ040609
Battery compartment, 3 x AA
For 3 x 1.5 V mignon-cells (AA). To install a PCB above the battery compartment in the bottom part, the extender (EZ031209) is required.
Supply 1 battery compartment, set of battery clips
EZ040609
Battery compartment, 3 x AAProdotto aggiunto alla lista
black RAL 9005
Accessory "wall/holder"
EZ030109
Wall suspension element
Optional wall mounting with only one screw.
Supply 1 holder and cover plate, 2 anti-slide feet
EZ030109
Wall suspension elementProdotto aggiunto alla lista
black RAL 9005
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Prodotto aggiunto alla lista
EZ031209
Extender kit
For increasing the height of the attachment domes for PCBs. Required when installing a PCB above the battery compartment (acc.) in the bottom part.
Supply 4 extender, 4 screws (Torx 8)
EZ031209
Extender kitProdotto aggiunto alla lista
black RAL 9005
Customising options for EE169059
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Materiale
Frame
Plastic parts
Protection class
Colore
Frame
matt anodised,
Plastic parts black RAL 9005
Plastic parts black RAL 9005
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Lunghezza
160 mm
Larghezza
80 mm
Altezza
100 mm
PCB length, base
144,5 mm
PCB width, base
64,5 mm
PCB length, top
144,5 mm
PCB width, top
64,5 mm
Keypad length
142,1 mm
Keypad width
62,1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 374 KB
- AutoCAD DWG-File 854 KB
- AutoCAD DXF-File 3.284 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 1.126 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00015576.x_t 5.410 KB
- 00015576.step 12.521 KB
- 00015576.sat 18.789 KB
Weight/1 part
386 g
Customs tariff number
(OKW product)
(OKW product)
76042100
Country of manufacture
Other country
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione EE169059 e non dimenticare di chiedere la quotazione!
