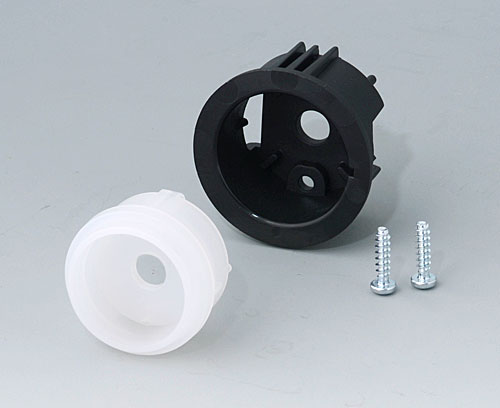

B8733201 Assembly kit 33, surface-mounted version

B8733201

Assembly kit 33, surface-mounted version

Surface-Mounted version. For raised installation. Suitable for knob diameter 33. Optional illumination possible, please order LED illumination separately.

Supply

1 assembly kit

  • Componenti adatti

Variante sporgente con illuminazione LED

Variante sporgente senza illuminazione

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
Colore
Visible part diamond
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 2.120 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
15 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
