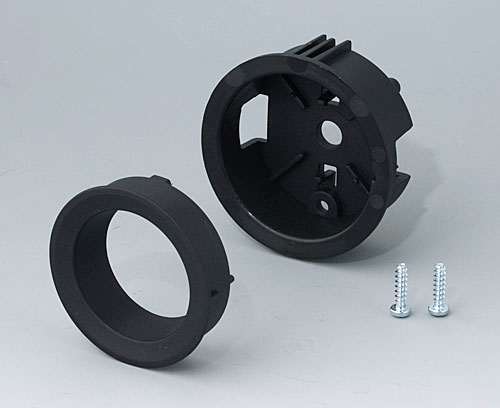

B8733119 Assembly kit 33, flush fitting version

B8733119

Assembly kit 33, flush fitting version

Flush-fitting version: For flush-fitting installation in the built-in version with an attractive transition from the knob to the front of the device. Suitable for knob diameter 33. Optional illumination possible only in conjunction with the translucent knob(colours diamond, ruby, emerald or sapphire).

Supply

1 assembly kit

  • Componenti adatti

Variante a filo con illuminazione LED

Variante a filo senza illuminazione

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
Colore
nero
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 2.393 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
23 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
