Accessori per contenitori
A9053108

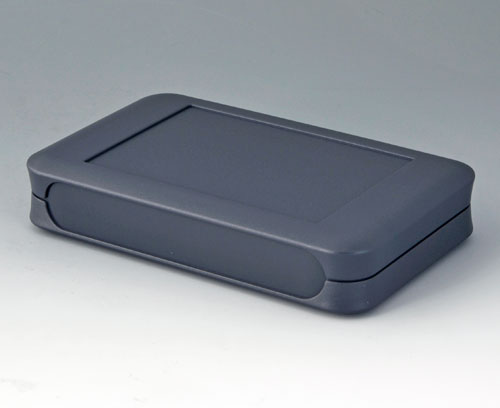

SOFT-CASE XL
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.
VersionWithout battery compartment
SupplyTop and bottom part, assembly kit
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per A9053108
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "intermediate ring"
A9153011
Intermediate ring XL
Sophisticated feature in metallic finish (RoHS compliant). 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153011
Intermediate ring XLProdotto aggiunto alla lista
matt chromed
96x154x26mm
A9153017
Intermediate ring XL
For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153017
Intermediate ring XLProdotto aggiunto alla lista
off-white RAL 9002
96x154x26mm
A9153018
Intermediate ring XL
For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153018
Intermediate ring XLProdotto aggiunto alla lista
lava
96x154x26mm
A9153118
Intermediate ring XL
Serves as a sealing ring and impact protection and ensures 5 mm more installation height. Individual colour choice and designs on demand.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153118
Intermediate ring XLProdotto aggiunto alla lista
volcano
96x154x26mm
A9153219
Intermediate ring XL
For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153219
Intermediate ring XLProdotto aggiunto alla lista
black RAL 9005
96x154x26mm
Accessory "wall/holder"
A9152048
Combi-Clip
Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.
Supply 1 set
A9152048
Combi-ClipProdotto aggiunto alla lista
lava
45x27mm
Accessory "carrying"
A9100002
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.
Supply 1 ring eyelet
A9100002
Ring eyeletProdotto aggiunto alla lista
volcano
A9152048
Combi-Clip
Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.
Supply 1 set
A9152048
Combi-ClipProdotto aggiunto alla lista
lava
45x27mm
Accessory "screws"
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Prodotto aggiunto alla lista
Accessory
A9152058
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.
Supply 1 tilt foot bar, assembly kit
A9152058
Tilt foot barProdotto aggiunto alla lista
lava
