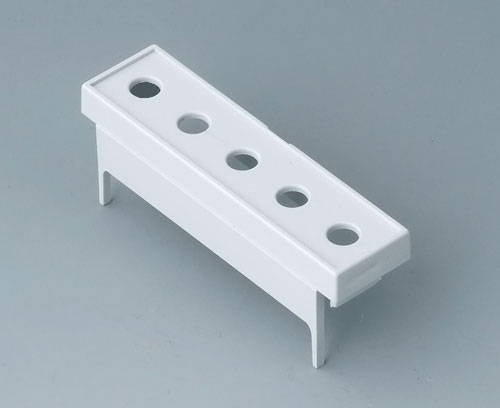

B6802115 Terminal guards, with holes, 10.16

B6802115

Terminal guards, with holes, 10.16

Easy assembly through snap-in installation of the case parts.

Version

5 poles (designed to allow the use of terminals, block 10.16)

Supply

1 piece

  • Usato per
  • Modifiche specifiche del cliente
B6702100 RAILTEC C, 3 modules, Vers. I

B6702100

RAILTEC C, 3 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6702100

RAILTEC C, 3 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
53x90x58mm
B6702102 RAILTEC C, 3 modules, Vers. II

B6702102

RAILTEC C, 3 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6702102

RAILTEC C, 3 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
53x90x58mm
B6702106 RAILTEC C, 3 modules, Vers. IV

B6702106

RAILTEC C, 3 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6702106

RAILTEC C, 3 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
53x90x58mm
B6705100 RAILTEC C, 6 modules, Vers. I

B6705100

RAILTEC C, 6 modules, Vers. I Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705100

RAILTEC C, 6 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
106x90x58mm
B6705101 RAILTEC C, 6 modules, Vers. I

B6705101

RAILTEC C, 6 modules, Vers. I Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705101

RAILTEC C, 6 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
106x90x58mm
B6705102 RAILTEC C, 6 modules, Vers. II

B6705102

RAILTEC C, 6 modules, Vers. II Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories).Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705102

RAILTEC C, 6 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
106x90x58mm
B6705103 RAILTEC C, 6 modules, Vers. II

B6705103

RAILTEC C, 6 modules, Vers. II Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705103

RAILTEC C, 6 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
106x90x58mm
B6705106 RAILTEC C, 6 modules, Vers. IV

B6705106

RAILTEC C, 6 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705106

RAILTEC C, 6 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
106x90x58mm
B6705107 RAILTEC C, 6 modules, Vers. IV

B6705107

RAILTEC C, 6 modules, Vers. IV Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version front closed, connection side with free through passage.

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705107

RAILTEC C, 6 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
106x90x58mm
B6705700 RAILTEC C, 6 modules, high

B6705700

RAILTEC C, 6 modules, high Enclosure with 2 sides open for connection and with high top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*ridges give more stability during transport - easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705700

RAILTEC C, 6 modules, high
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
107x90x114mm
B6705706 RAILTEC C, 6 modules, high

B6705706

RAILTEC C, 6 modules, high Enclosure with 2 sides open for connection and with high top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705706

RAILTEC C, 6 modules, high
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
107x90x114mm
B6705800 RAILTEC C, 6 modules, flat, Vers. I

B6705800

RAILTEC C, 6 modules, flat, Vers. I Enclosure with 2 sides open for connection and with flat top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*ridges give more stability during transport - easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705800

RAILTEC C, 6 modules, flat, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
106,2x90x32mm
B6705806 RAILTEC C, 6 modules, flat, Vers. IV

B6705806

RAILTEC C, 6 modules, flat, Vers. IV Enclosure with 2 sides open for connection and with flat top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705806

RAILTEC C, 6 modules, flat, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
106,2x90x32mm
B6706100 RAILTEC C, 9 modules, Vers. I

B6706100

RAILTEC C, 9 modules, Vers. I Enclosure with 2 sides open for connection - for max. 6 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6706100

RAILTEC C, 9 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
160x90x58mm
B6706101 RAILTEC C, 9 modules, Vers. I

B6706101

RAILTEC C, 9 modules, Vers. I Enclosure with 1 side open for connection - for max. 3 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6706101

RAILTEC C, 9 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
160x90x58mm
B6706102 RAILTEC C, 9 modules, Vers. II

B6706102

RAILTEC C, 9 modules, Vers. II Enclosure with 2 sides open for connection - for max. 6 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6706102

RAILTEC C, 9 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
160x90x58mm
B6706103 RAILTEC C, 9 modules, Vers. II

B6706103

RAILTEC C, 9 modules, Vers. II Enclosure with 1 side open for connection - for max. 3 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6706103

RAILTEC C, 9 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
160x90x58mm
B6706106 RAILTEC C, 9 modules, Vers. IV

B6706106

RAILTEC C, 9 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 6 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6706106

RAILTEC C, 9 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
160x90x58mm
B6706107 RAILTEC C, 9 modules, Vers. IV

B6706107

RAILTEC C, 9 modules, Vers. IV Enclosure with 1 side open for connection - for max. 3 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6706107

RAILTEC C, 9 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
160x90x58mm
B6707100 RAILTEC C, 12 modules, Vers. I

B6707100

RAILTEC C, 12 modules, Vers. I Enclosure with 2 sides open for connection - for max. 8 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6707100

RAILTEC C, 12 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
210x90x58mm
B6707102 RAILTEC C, 12 modules, Vers. II

B6707102

RAILTEC C, 12 modules, Vers. II Enclosure with 2 sides open for connection - for max. 8 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6707102

RAILTEC C, 12 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
210x90x58mm

Customising options for B6802115

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
light grey
Pitch
10.16 mm
Poles
5
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
2 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
