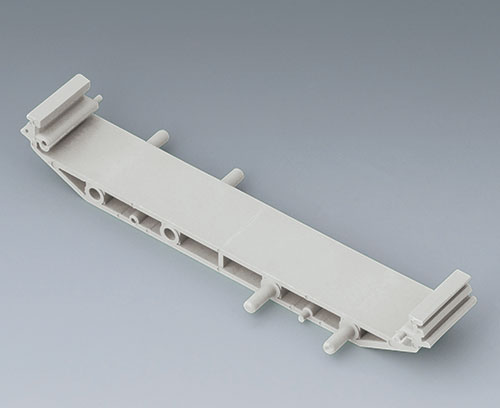

RAILTEC SUP. 107, intermediate part
Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.
Supply1 intermediate part
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B6724440
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
System components to complete
B6724444
RAILTEC SUP. 107, end section
Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts.
Supply 1 end section
B6724444
RAILTEC SUP. 107, end sectionProdotto aggiunto alla lista
light grey
118x11,5x17,5mm
B6724445
RAILTEC SUP. 107, end section with foot
Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35).
Supply 1 end section with foot
B6724445
RAILTEC SUP. 107, end section with footProdotto aggiunto alla lista
light grey
118x11,5x27,5mm
Customising options for B6724440
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Lunghezza
118 mm
Larghezza
18,5 mm
Altezza
17,5 mm
PCB length, base
107 mm
PCB width, base
18,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 164 KB
- AutoCAD DWG-File 339 KB
- AutoCAD DXF-File 949 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 34 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00006812.x_t 157 KB
- 00006812.STEP 392 KB
- 00006812.SAT 262 KB
Weight/1 part
14 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
UK
