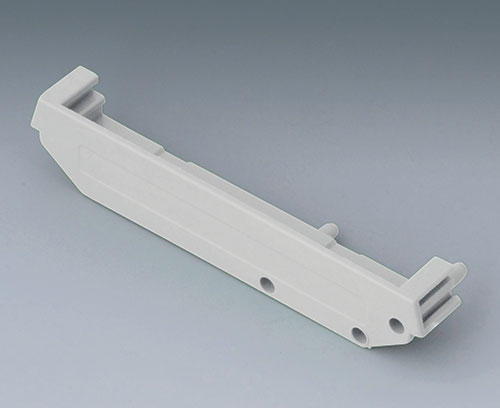

RAILTEC SUP. 72, end section

Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply

1 end section

Disegno PDF 2D
Vista 3D in PDF
3D/2D download

Create la vostra scheda dati PDF per B6724333

Selezionate le informazioni prodotto per la vostra scheda dati.

Aggiungi al carrello Aggiungi al carrello Aggiungi al carrello
Prodotto aggiunto alla lista
continua o Vai al carrello

System components to complete

B6724330 RAILTEC SUP. 72, intermediate part

B6724330

RAILTEC SUP. 72, intermediate part Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 intermediate part

B6724330

RAILTEC SUP. 72, intermediate part
Prodotto aggiunto alla lista

light grey
82x11,25x16mm
B6724331 RAILTEC SUP. 72, intermediate part

B6724331

RAILTEC SUP. 72, intermediate part Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 intermediate part

B6724331

RAILTEC SUP. 72, intermediate part
Prodotto aggiunto alla lista

light grey
82x22,5x16mm
B6724332 RAILTEC SUP. 72, intermediate part

B6724332

RAILTEC SUP. 72, intermediate part Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 intermediate part

B6724332

RAILTEC SUP. 72, intermediate part
Prodotto aggiunto alla lista

light grey
82x45x16mm
B6724337 RAILTEC SUP. 72, foot

B6724337

RAILTEC SUP. 72, foot Can be used for intermediate part and end section without foot. Suitable for DIN EN 60715 (TH35, TH15 and G32).

Supply 1 foot

B6724337

RAILTEC SUP. 72, foot
Prodotto aggiunto alla lista

light grey

Accessory "wall/holder"

B6824532 Wall suspension element for SUP. 72

B6824532

Wall suspension element for SUP. 72 Allows direct wall-mounting, suitable for end section.

Supply 2 pieces as set

B6824532

Wall suspension element for SUP. 72
Prodotto aggiunto alla lista

light grey

Customising options for B6724333

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Materiale

Colore
light grey
Standards
RoHS compliant
REACH compliant
Lunghezza
82 mm
Larghezza
11,2 mm
Altezza
16 mm
PCB length, base
72 mm
PCB width, base
10 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 38 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
4 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
UK

Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B6724333 e non dimenticare di chiedere la quotazione!
