Accessori per contenitori
C2316418

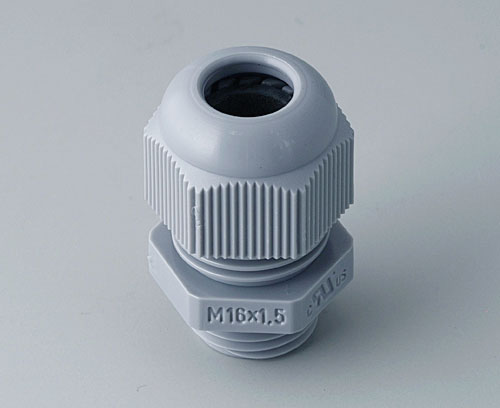

Cable gland M16x1.5
Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 5 - 10 mm. High protection class IP 68. Operating temperatures from -20°C to +100°C (dynamic) and -40°C ( static, short-term).
Supply1 cable gland
Disegno PDF 2D
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per C2316418
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory
C2316117
Counternut M16x1.5
For fixing the cable gland on the housing.
Supply 1 counternut
C2316117
Counternut M16x1.5Prodotto aggiunto alla lista
light grey RAL 7035
C2316126
Sealing ring for external thread M16x1.5
Mounting between housing and gland flange. Preserves the high protection class IP 68.
Supply 1 sealing ring for external thread
C2316126
Sealing ring for external thread M16x1.5Prodotto aggiunto alla lista
natural-coloured
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Materiale
Protection class
Necessary accessories: sealing ring for external thread and counternut
Colore
silver grey RAL 7001
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 151 KB
- AutoCAD DWG-File 297 KB
- AutoCAD DXF-File 1.058 KB
Weight/1 part
9 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Other country
