C2316159

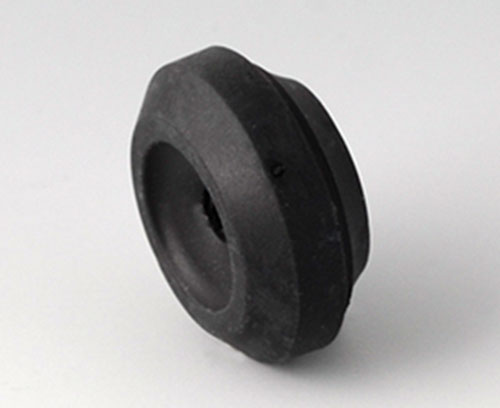

Cable grommet

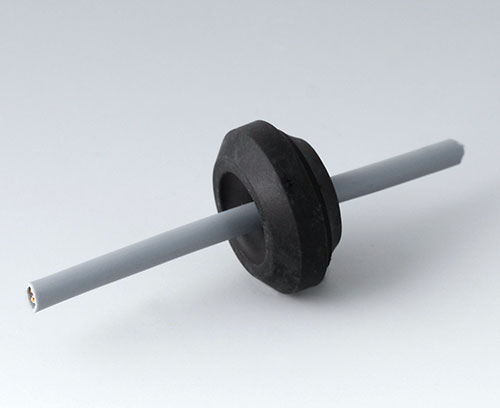

Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens and sulphur. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +80°C. Borehole ø 16.5 mm.

Supply

1 cable grommet

Disegno PDF 2D
3D/2D download

Create la vostra scheda dati PDF per C2316159

Selezionate le informazioni prodotto per la vostra scheda dati.

Aggiungi al carrello Aggiungi al carrello Aggiungi al carrello
Prodotto aggiunto alla lista
continua o Vai al carrello
Materiale

Protection class
Colore
black RAL 9005
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
2 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Other country
