B3123167 Sloping control panel L, flat/high

B3123167

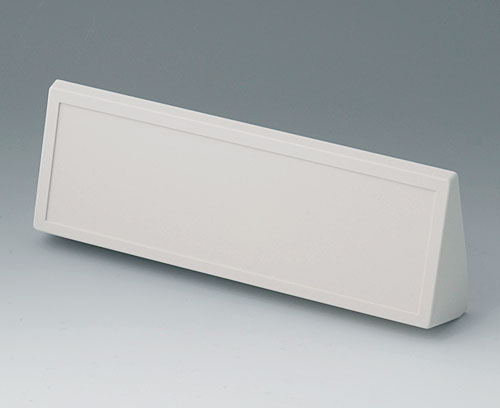

Sloping control panel L, flat/high

Suitable for MOTEC L B3023127 and B3023147 with high top and flat base part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply

1 sloping control panel

  • Usato per
  • Modifiche specifiche del cliente

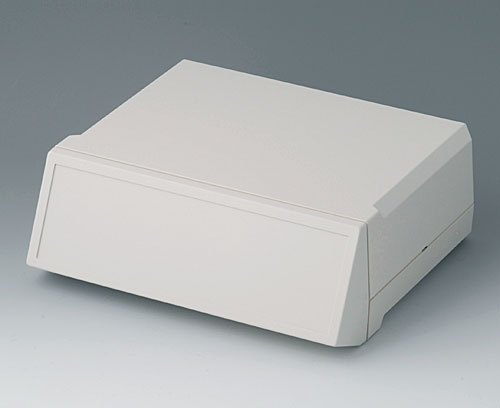

B3023127 MOTEC L, flat/high

B3023127

MOTEC L, flat/high Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Chiudi

B3023127

MOTEC L, flat/high
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
235x165x85mm
IP 40
B3023147 MOTEC L, with handle bar

B3023147

MOTEC L, with handle bar Desk top case with handle bar in version with flat base and high top part. With 30 degress indexing. Front and rear part open. Screw tower for PCBs and vertical guides for mounting panels. Front panels as accessory.

Supply 1 top and base part, handle bar, 4 self-adhesive case feet

Chiudi

B3023147

MOTEC L, with handle bar
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
235x165x85mm
IP 40

Customising options for B3123167

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
off-white RAL 9002
Keypad length
214,3 mm
Keypad width
62,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
102 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
