Accessori per contenitori
B3120120

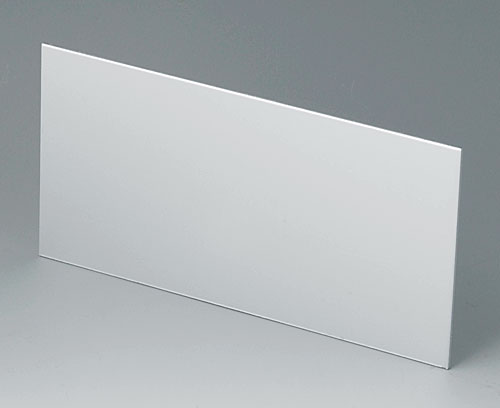

Front / rear panel M
Suitable for MOTEC M B3020137 with high base and top part.
Supply1 front panel
Disegno PDF 2D
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B3120120
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
B3020137
MOTEC M, high/high
Desk top case with high base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.
Supply 1 top and base part, 4 self-adhesive case feet
B3020137
MOTEC M, high/highProdotto aggiunto alla lista
off-white RAL 9002
205x140x100mm
Customising options for B3120120
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Larghezza
185 mm
Altezza
92 mm
Spessore
1,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 77 KB
- AutoCAD DWG-File 269 KB
- AutoCAD DXF-File 654 KB
Weight/1 part
65 g
Customs tariff number
(OKW product)
(OKW product)
76069200
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B3120120 e non dimenticare di chiedere la quotazione!
