Accessori per contenitori
B1824126

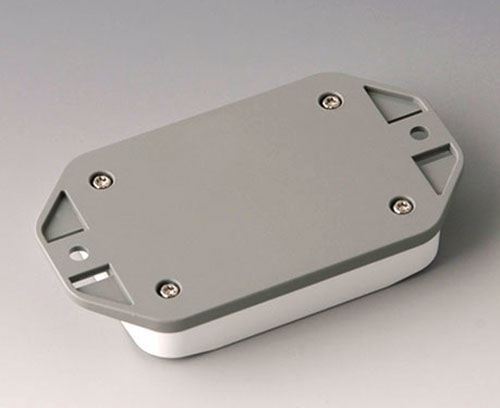

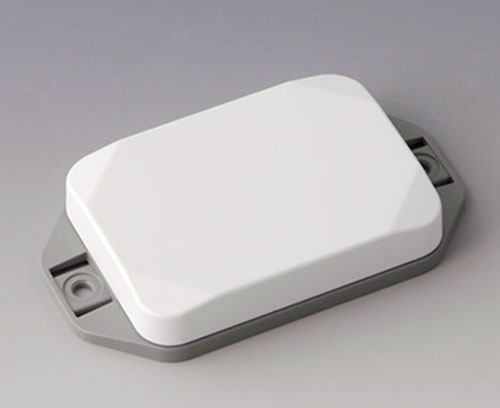

MINI-DATA-BOX EF50, flat, with flanges
2-part plastic enclosure with flat top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Bottom part with flanges, top part flat
SupplyTop and bottom parts, assembly kit
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B1824126
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "protection"
B1924101
Sealing E50/EF50
Use: increases the protection class of MINI-DATA-BOX E50 and EF50. Fits to the groove in the bottom part of the enclosure.
Supply 1 seal
B1924101
Sealing E50/EF50Prodotto aggiunto alla lista
Customising options for B1824126
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Materiale
Protection class
Necessary accessories: sealing,
Colore
Top part
traffic white RAL 9016,
Bottom part traffic grey A RAL 7042
Bottom part traffic grey A RAL 7042
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Lunghezza
70 mm
Larghezza
50 mm
Altezza
15 mm
PCB length, base
62 mm
PCB width, base
42 mm
PCB length, top
62 mm
PCB width, top
42 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 244 KB
- AutoCAD DWG-File 392 KB
- AutoCAD DXF-File 1.428 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 622 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00028543.x_t 1.792 KB
- 00028543.step 4.027 KB
- 00028543.sat 5.757 KB
Weight/1 part
25 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B1824126 e non dimenticare di chiedere la quotazione!
