B2211107

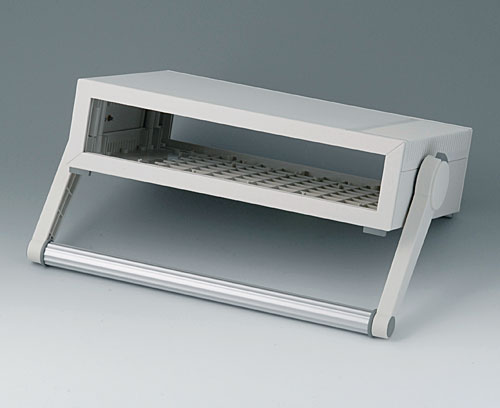

MEDITEC D 160, with handle bar

Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply

2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet, 1 handle bar

Disegno PDF 2D
Vista 3D in PDF
3D/2D download

Create la vostra scheda dati PDF per B2211107

Selezionate le informazioni prodotto per la vostra scheda dati.

Aggiungi al carrello Aggiungi al carrello Aggiungi al carrello
Prodotto aggiunto alla lista
continua o Vai al carrello

Accessory to complete

B2129007 Sloping control panel D

B2129007

Sloping control panel D Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.

Version D (for MEDITEC D160 or D220)

Supply 1 angle, 1 cover, assembly kit

B2129007

Sloping control panel D
Prodotto aggiunto alla lista

off-white RAL 9002
B2129307 Front / rear panel D, flat

B2129307

Front / rear panel D, flat For case without side panels.

Supply 1 front panel

B2129307

Front / rear panel D, flat
Prodotto aggiunto alla lista

off-white RAL 9002
271,6x55,6x3mm

Accessory "screws"

A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

A9199008

Set of screws
Prodotto aggiunto alla lista

Accessory

B2134012 Stacking elements

B2134012

Stacking elements Stacking elements for secure sandwiching several devices. Screwless fixing in pre-shaped receivers.

Supply 4 stacking elements

B2134012

Stacking elements
Prodotto aggiunto alla lista

volcano

Customising options for B2211107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Materiale

Protection class
Colore
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Larghezza
290 mm
Profindità
200 mm
Altezza
74 mm
PCB length, base
260 mm
PCB width, base
185 mm
Keypad length
262 mm
Keypad width
46 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 11.300 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
1112 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B2211107 e non dimenticare di chiedere la quotazione!
