Accessori per contenitori
B2023007

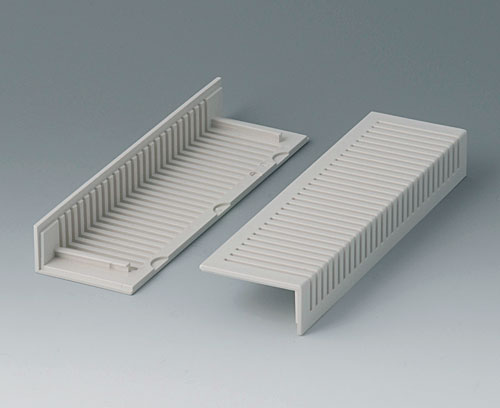

Side trims 160, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.
Supply2 side trims
Disegno PDF 2D
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B2023007
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
System components to complete
B2011007
L-shells D 160, without holes
Component as separate parts: L-shells without hole. Ideal for the installation of double-Eurocards 233.4 x 160 mm. Side trims 160 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2011007
L-shells D 160, without holesProdotto aggiunto alla lista
off-white RAL 9002
290x200x74mm
B2011107
L-shells D 160, with holes for handle
Component as separate parts: L-shells with hole for handle. Ideal for the installation of double-Eurocards 233.4 x 160 mm. Side trims 160 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2011107
L-shells D 160, with holes for handleProdotto aggiunto alla lista
off-white RAL 9002
290x200x74mm
B2013007
L-shells E 160, without holes
Component as separate parts: L-shells without hole. Ideal for the installation of Eurocards 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2013007
L-shells E 160, without holesProdotto aggiunto alla lista
off-white RAL 9002
160x200x74mm
B2013107
L-shells E 160, with holes for handle
Component as separate parts: L-shells with hole for handle. Ideal for the installation of Eurocards 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2013107
L-shells E 160, with holes for handleProdotto aggiunto alla lista
off-white RAL 9002
160x200x74mm
B2022005
Side trims 160, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2022005
Side trims 160, without ventilationProdotto aggiunto alla lista
lagoon
B2022007
Side trims 160, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.
Supply 2 side trims
B2022007
Side trims 160, without ventilationProdotto aggiunto alla lista
off-white RAL 9002
B2023005
Side trims 160, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.
Supply 2 side trims
B2023005
Side trims 160, with ventilationProdotto aggiunto alla lista
lagoon
B2031007
Side panels 160, without holes
Side panels without hole for 50 mm additional height. Suitable for Meditec D160/E160.
Supply 2 side panel, set of screws
B2031007
Side panels 160, without holesProdotto aggiunto alla lista
off-white RAL 9002
B2031107
Side panels 160, with holes for handle
Side panels with hole for 50 mm additional height. Suitable for Meditec D160/E160.
Supply 2 side panel, set of screws
B2031107
Side panels 160, with holes for handleProdotto aggiunto alla lista
off-white RAL 9002
B2116507
Handle bar E
For canting and carrying the unit. To be assembled from the outside. Strong ratchet with 30° indexing. For combination with side panel with hole for handle.
Supply 2 side arms, 1 al-profile, antislipping device, lid, assembly kit
B2116507
Handle bar EProdotto aggiunto alla lista
off-white RAL 9002
B2129507
Handle bar D
For canting and carrying the unit. To be assembled from the outside. Strong ratchet with 30° indexing. For combination with side panel with hole for handle.
Supply 2 side arms, 1 Al-profile, antislipping device, lid, assembly kit
B2129507
Handle bar DProdotto aggiunto alla lista
off-white RAL 9002
B2135017
Connectors
For secure connection of 2 side panels. Screwless assembly, simply pin and lock.
Supply 4 connectors
B2135017
ConnectorsProdotto aggiunto alla lista
off-white RAL 9002
Accessory to complete
B2116007
Sloping control panel E
Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.
Version E (for MEDITEC E160 or E220)
Supply 1 angle, 1 cover, assembly kit
B2116007
Sloping control panel EProdotto aggiunto alla lista
off-white RAL 9002
B2116307
Front / rear panel E, flat
For case without side panels.
Supply 1 front panel
B2116307
Front / rear panel E, flatProdotto aggiunto alla lista
off-white RAL 9002
141,6x55,6x3mm
B2116407
Front / rear panel Z1
For cases with 1 side panel per side.
Supply 1 front panel Z1
B2116407
Front / rear panel Z1Prodotto aggiunto alla lista
off-white RAL 9002
141,6x105,6x3mm
B2116707
Infill panel E
When using the MEDITEC-cases with 1 intermediate part each right and left hand (case height = 124 mm) and operating front. The front cover locks the access to the case's inside; usable on top of or under the operaring front alternatively.
Version E
Supply 1 front cover (for locking)
B2116707
Infill panel EProdotto aggiunto alla lista
off-white RAL 9002
142x55x5mm
B2129007
Sloping control panel D
Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.
Version D (for MEDITEC D160 or D220)
Supply 1 angle, 1 cover, assembly kit
B2129007
Sloping control panel DProdotto aggiunto alla lista
off-white RAL 9002
B2129307
Front / rear panel D, flat
For case without side panels.
Supply 1 front panel
B2129307
Front / rear panel D, flatProdotto aggiunto alla lista
off-white RAL 9002
271,6x55,6x3mm
B2129407
Front / rear panel Z1
For cases with 1 side panel per side.
Supply 1 front panel Z1
B2129407
Front / rear panel Z1Prodotto aggiunto alla lista
off-white RAL 9002
271,6x105,6x3mm
B2129707
Infill panel D
When using the MEDITEC-cases with 1 intermediate part each right and left hand (case height = 124 mm) and operating front. The front cover locks the access to the case's inside; usable on top of or under the operaring front alternatively.
Version D
Supply 1 front cover (for locking)
B2129707
Infill panel DProdotto aggiunto alla lista
off-white RAL 9002
272x55x5mm
Accessory "wall/holder"
B2133012
Wall mounting brackets
Wall mounting brackets for simple external wall assembly.
Supply 4 Wall mounting brackets, screws
B2133012
Wall mounting bracketsProdotto aggiunto alla lista
volcano
Accessory "screws"
A9199008
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.
Supply 4 screws
A9199008
Set of screwsProdotto aggiunto alla lista
Accessory
B2134012
Stacking elements
Stacking elements for secure sandwiching several devices. Screwless fixing in pre-shaped receivers.
Supply 4 stacking elements
B2134012
Stacking elementsProdotto aggiunto alla lista
volcano
Customising options for B2023007
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Assembly Instructions (Part)
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 157 KB
- AutoCAD DWG-File 529 KB
- AutoCAD DXF-File 1.818 KB
Weight/1 part
82 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B2023007 e non dimenticare di chiedere la quotazione!
