A0216170

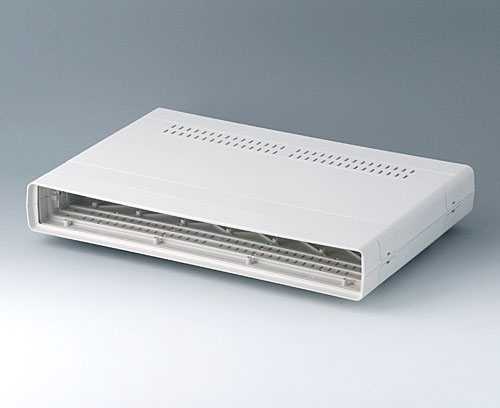

EURO CASE 63 TE, without handle
Modular construction without screws. Fixing support in the shells and side panels.
Supply2 shells, 1 snap-in panel without/with slots each, 1 snap-in panel without/with slots, with feet each
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per A0216170
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory to complete
A0316370
Front / rear panel 63 TE 1 HE
Front/rear panel for case 63 TE 1 HE.
Supply 1 front panel
A0316370
Front / rear panel 63 TE 1 HEProdotto aggiunto alla lista
matt anodised
357,8x46,3x2mm
Accessory "screws"
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Prodotto aggiunto alla lista
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308031
Self-tapping screws 3 x 8 mm (PZ1)Prodotto aggiunto alla lista
A0308132
Self-tapping screw 3 x 8 mm (T10)
Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)Prodotto aggiunto alla lista
Accessory
A0350007
Tilt foot
The tilt foot is used for canting the unit. It can be locked into the case bottom and is retractable.
Supply 1 tilt foot
A0350007
Tilt footProdotto aggiunto alla lista
off-white RAL 9002
Customising options for A0216170
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Larghezza
367 mm
Profindità
250 mm
Altezza
54 mm
PCB length, base
350 mm
PCB width, base
220 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 379 KB
- AutoCAD DWG-File 946 KB
- AutoCAD DXF-File 3.632 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 4.937 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00009079.x_t 10.742 KB
- 00009079.STEP 20.733 KB
- 00009079.SAT 43.260 KB
Weight/1 part
827 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione A0216170 e non dimenticare di chiedere la quotazione!
