Accessori per contenitori
B4116147

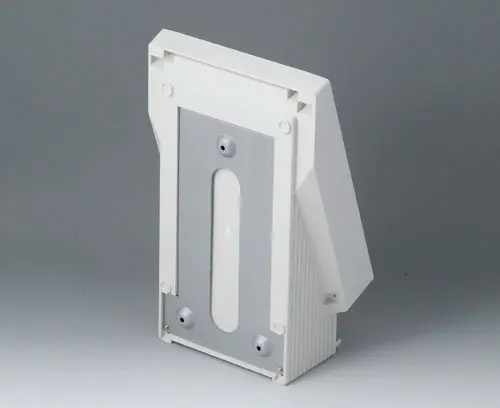

Wall suspension element M
Wall suspension element M for easy and secure fixing of the unit to a wall. Securing by 2 screws in the lateral pocket sections in the terminal compartment.
Supply1 wall suspension element, 2 screws M3
Create la vostra scheda dati PDF per B4116147
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
B4016117
DATEC-TERMINAL M, Vers. I
Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards 100 x 160 mm.
Version Basic housing, unmachined
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit
B4016117
DATEC-TERMINAL M, Vers. IProdotto aggiunto alla lista
off-white RAL 9002
168x272x101mm
B4016217
DATEC-TERMINAL M, Vers. II
Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles.
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the hinge guarantee good and easy accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures.
Suitable for the installation of Eurocards 100 x 160 mm.
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the hinge guarantee good and easy accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures.
Suitable for the installation of Eurocards 100 x 160 mm.
Version Machined for assembly of hinge and quick-action lock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock
B4016217
DATEC-TERMINAL M, Vers. IIProdotto aggiunto alla lista
off-white RAL 9002
168x272x101mm
B4016317
DATEC-TERMINAL M, Vers. III
Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles.
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the keylock prevent unauthorised access to the operating and display elements. When the enclosure is opened, a hinge secures the cover and allows good accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures. All locks have identical keys.
Suitable for the installation of Eurocards 100 x 160 mm.
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the keylock prevent unauthorised access to the operating and display elements. When the enclosure is opened, a hinge secures the cover and allows good accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures. All locks have identical keys.
Suitable for the installation of Eurocards 100 x 160 mm.
Version Machined for assembly of hinge, quick-action lock and keylock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock
B4016317
DATEC-TERMINAL M, Vers. IIIProdotto aggiunto alla lista
off-white RAL 9002
168x272x101mm
Customising options for B4116147
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Larghezza
214 mm
Altezza
126 mm
Profindità
12 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
215 g
Customs tariff number
(OKW product)
(OKW product)
73269098
Country of manufacture
Germany
