B4116126

Profile plate M

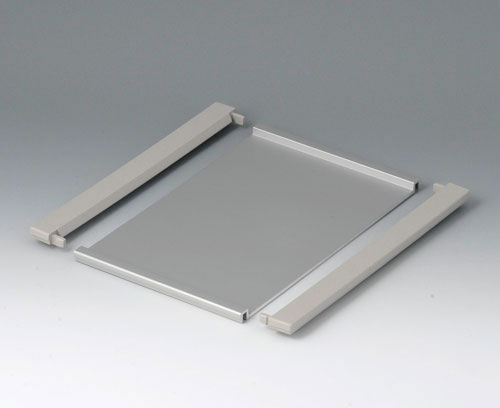

Profile plate M for mounting operating elements of all kinds. Especially designed for the use with membrane keyboards. Recessed area for protecting the operating elements.

Supply

1 profile plate, 4 screws, 2 cover strips

Disegno PDF 2D
Vista 3D in PDF
3D/2D download

Create la vostra scheda dati PDF per B4116126

Selezionate le informazioni prodotto per la vostra scheda dati.

Aggiungi al carrello Aggiungi al carrello Aggiungi al carrello
Prodotto aggiunto alla lista
continua o Vai al carrello
B4016117 DATEC-TERMINAL M, Vers. I

B4016117

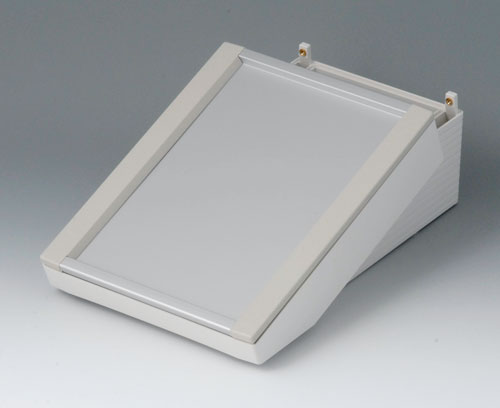

DATEC-TERMINAL M, Vers. I Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards 100 x 160 mm.

Version Basic housing, unmachined

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit

B4016117

DATEC-TERMINAL M, Vers. I
Prodotto aggiunto alla lista

off-white RAL 9002
168x272x101mm

Customising options for B4116126

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Materiale

Colore
Profile plate matt anodised,
Cover strips pebble grey RAL 7032
Standards
RoHS compliant
REACH compliant
Larghezza
168 mm
Profindità
220 mm
Altezza
8 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 3.030 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
253 g
Customs tariff number
(OKW product)
76042990
Country of manufacture
Germany
