Accessori per contenitori
B4026621

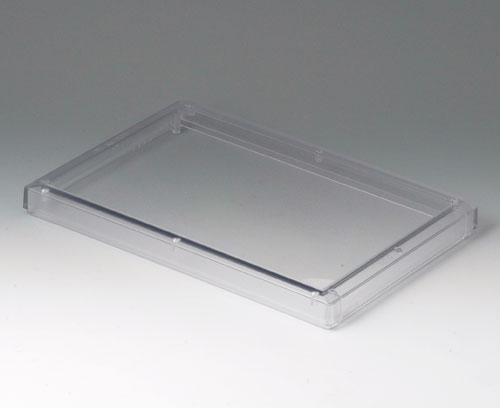

Cover SL
Suitable for DATEC-TERMINAL S. For the protecting the electronic. With screw pillars for PCB fixing. Recessed area for protecting the membrane keyboard.
Supply1 cover, assembly kit
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B4026621
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
B4026117
DATEC-TERMINAL SL
Basic case with large operating area. Ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate double Eurocards.
Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing
B4026117
DATEC-TERMINAL SLProdotto aggiunto alla lista
off-white RAL 9002
264x180x86mm
Customising options for B4026621
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Larghezza
264 mm
Profindità
180 mm
Altezza
23 mm
PCB length, base
172 mm
PCB width, base
237 mm
Keypad length
158,5 mm
Keypad width
234,3 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 198 KB
- AutoCAD DWG-File 299 KB
- AutoCAD DXF-File 1.088 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 3.750 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00012823.x_t 892 KB
- 00012823.STEP 2.200 KB
- 00012823.SAT 3.813 KB
Weight/1 part
247 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B4026621 e non dimenticare di chiedere la quotazione!
