Accessori per contenitori
B4016677

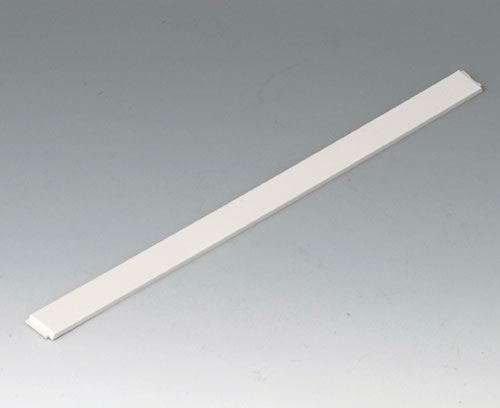

Cover strip M / L
For covering the screwing area when using the convex cover. Simply snap-in. For the complete assembly there are 2 cover strips necessary.
Supply1 cover strip
Create la vostra scheda dati PDF per B4016677
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
B4016117
DATEC-TERMINAL M, Vers. I
Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards 100 x 160 mm.
Version Basic housing, unmachined
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit
B4016117
DATEC-TERMINAL M, Vers. IProdotto aggiunto alla lista
off-white RAL 9002
168x272x101mm
B4016217
DATEC-TERMINAL M, Vers. II
Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles.
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the hinge guarantee good and easy accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures.
Suitable for the installation of Eurocards 100 x 160 mm.
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the hinge guarantee good and easy accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures.
Suitable for the installation of Eurocards 100 x 160 mm.
Version Machined for assembly of hinge and quick-action lock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock
B4016217
DATEC-TERMINAL M, Vers. IIProdotto aggiunto alla lista
off-white RAL 9002
168x272x101mm
B4016317
DATEC-TERMINAL M, Vers. III
Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles.
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the keylock prevent unauthorised access to the operating and display elements. When the enclosure is opened, a hinge secures the cover and allows good accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures. All locks have identical keys.
Suitable for the installation of Eurocards 100 x 160 mm.
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the keylock prevent unauthorised access to the operating and display elements. When the enclosure is opened, a hinge secures the cover and allows good accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures. All locks have identical keys.
Suitable for the installation of Eurocards 100 x 160 mm.
Version Machined for assembly of hinge, quick-action lock and keylock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock
B4016317
DATEC-TERMINAL M, Vers. IIIProdotto aggiunto alla lista
off-white RAL 9002
168x272x101mm
B4016631
Cover M, convex
Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.
Supply 1 cover, assembly kit
B4016631
Cover M, convexProdotto aggiunto alla lista
transparent
168x220x29mm
B4016637
Cover M, convex
Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.
Supply 1 cover, assembly kit
B4016637
Cover M, convexProdotto aggiunto alla lista
off-white RAL 9002
168x220x29mm
B4030117
DATEC-TERMINAL L, Vers. I
Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.
Version Basic housing, unmachined
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit
B4030117
DATEC-TERMINAL L, Vers. IProdotto aggiunto alla lista
off-white RAL 9002
302x272x101mm
B4030217
DATEC-TERMINAL L, Vers. II
Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.
Version Machined for assembly of hinge and quick-action lock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock
B4030217
DATEC-TERMINAL L, Vers. IIProdotto aggiunto alla lista
off-white RAL 9002
302x272x101mm
B4030317
DATEC-TERMINAL L, Vers. III
Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.
Version Machined for assembly of hinge, quick-action lock and keylock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock
B4030317
DATEC-TERMINAL L, Vers. IIIProdotto aggiunto alla lista
off-white RAL 9002
302x272x101mm
B4030631
Cover L, convex
Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.
Supply 1 cover, assembly kit
B4030631
Cover L, convexProdotto aggiunto alla lista
transparent
302x220x29mm
B4030637
Cover L, convex
Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.
Supply 1 cover, assembly kit
B4030637
Cover L, convexProdotto aggiunto alla lista
off-white RAL 9002
302x220x29mm
Customising options for B4016677
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
8 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B4016677 e non dimenticare di chiedere la quotazione!
