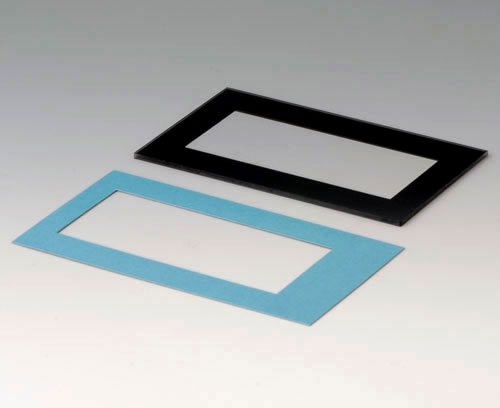

A9175009 Display window L, border black

A9175009

Display window L, border black

The display window protects the installed display and achieves protection class within the display area. The printing matches with the visible area of the display cutout.

Supply

1 display window, 1 adhesive foil

A9075209 DATEC-MOBIL-BOX L, Vers. II

A9075209

DATEC-MOBIL-BOX L, Vers. II Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version Top with display cutout for LCD modules of 20 characters x 4 lines

Supply Case-top and base, battery compartment lid, assembly kit

A9075209

DATEC-MOBIL-BOX L, Vers. II
Prodotto aggiunto alla lista

black RAL 9005
252x121x50mm

A9075219 DATEC-MOBIL-BOX L, Vers. II

A9075219

DATEC-MOBIL-BOX L, Vers. II Hand-held box with wide range of applications without battery compartment. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Sealing for IP 65 as accessory.

Version Top with display cutout for LCD modules of 20 characters x 4 lines

Supply Case-top and base, assembly kit

A9075219

DATEC-MOBIL-BOX L, Vers. II
Prodotto aggiunto alla lista

black RAL 9005
252x121x50mm

Customising options for A9175009

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Materiale

Colore
transparent
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
18 g
Customs tariff number
(OKW product)
39219090
Country of manufacture
Germany

Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione A9175009 e non dimenticare di chiedere la quotazione!
