Accessori per contenitori
Net-Box
Elegante centralina di controllo

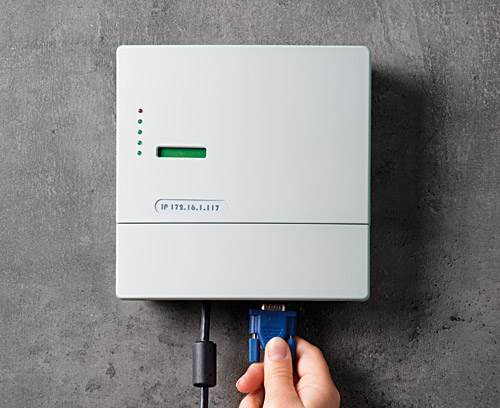

Moderna e con una raffinata forma arrotondata, ecco come si presenta la nuova serie di contenitori a muro NET-BOX.

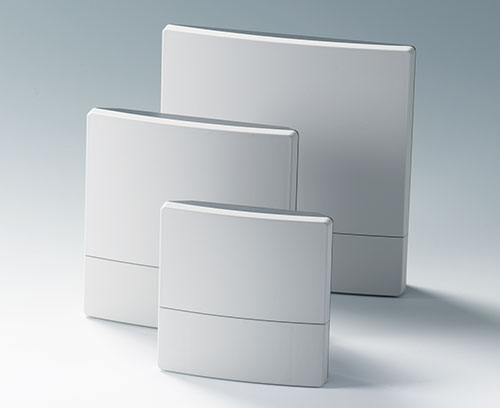

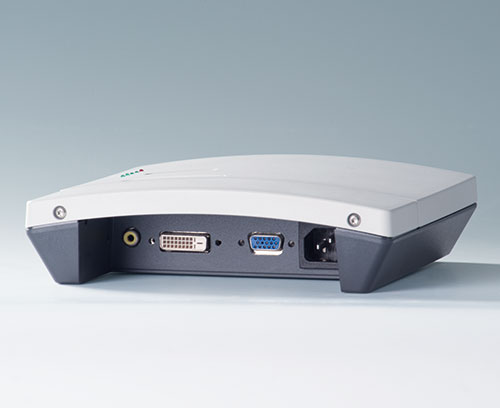

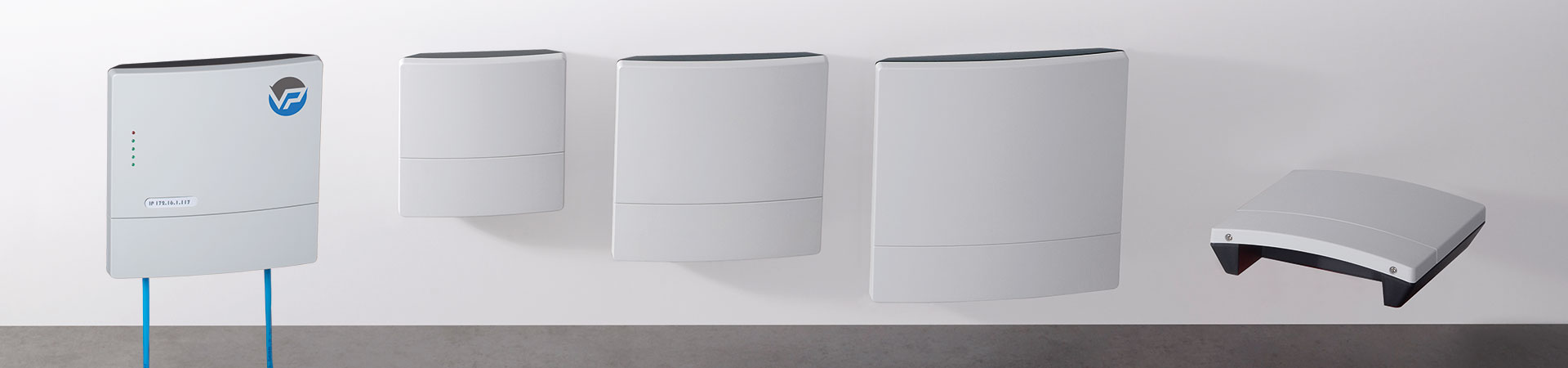

- Tre misure con molto spazio per componenti elettronici e interfacce

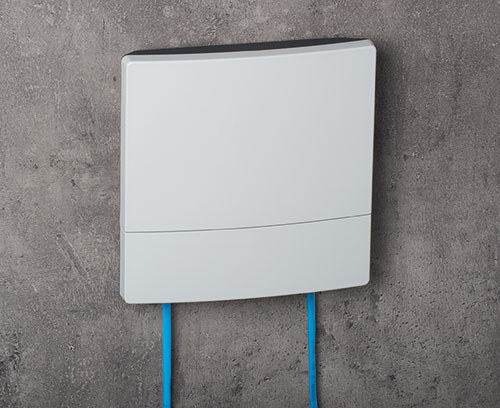

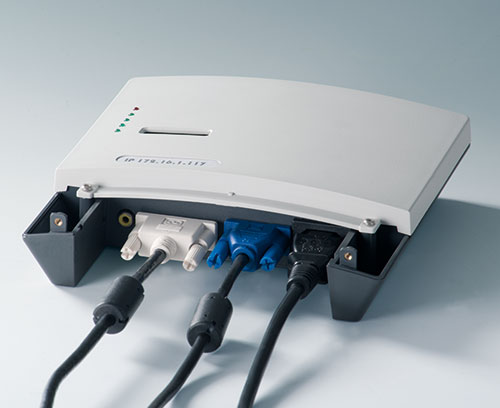

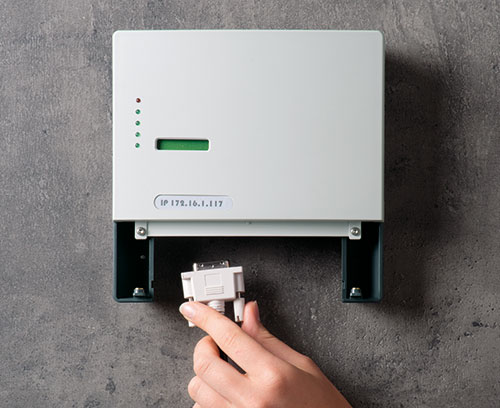

- Viti e collegamenti per connettori nascosti

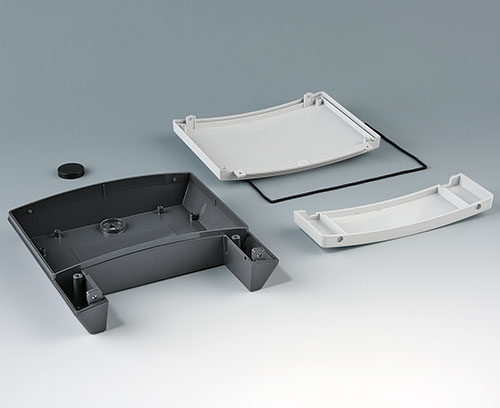

- Materiale V0 di elevata qualità e grado di protezione opzionale IP 65 (set di guarnizioni disponibile come accessorio)

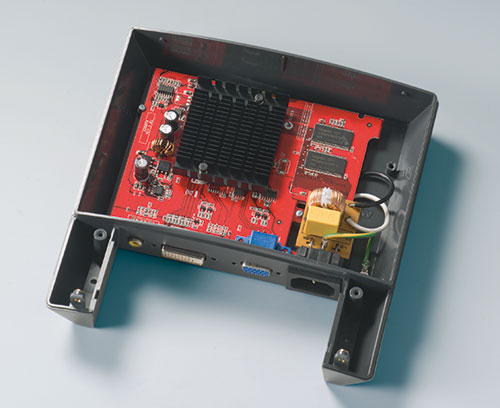

- Vano componenti elettronici a tenuta con due livelli per schede

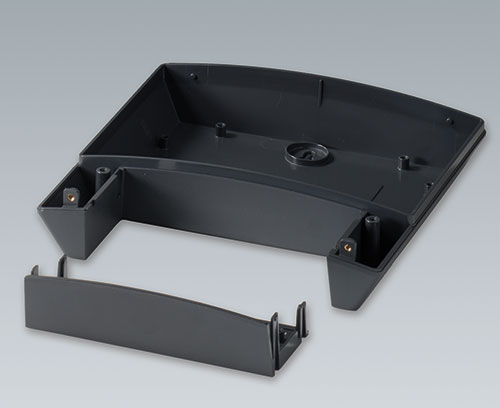

- Copertura opzionale che chiude il contenitore verso il basso e consente il montaggio di un'altra scheda
- Semplice sistema di montaggio su tre punti a filo della parete (versioni II già dotate di aperture nella parte inferiore)
- Viti in acciaio inossidabile con sicuro azionamento Torx
- I contenitori NET-BOX sono utilizzabili anche come contenitori da scrivania (piedini antiscivolo disponibili come accessori)

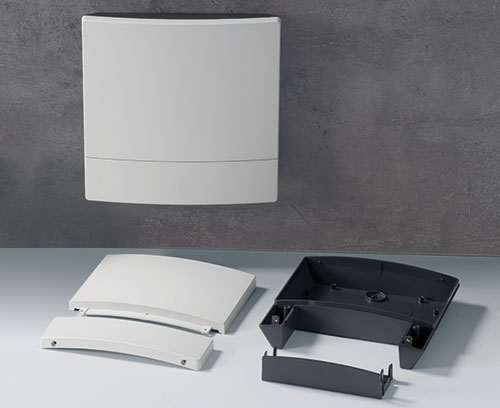

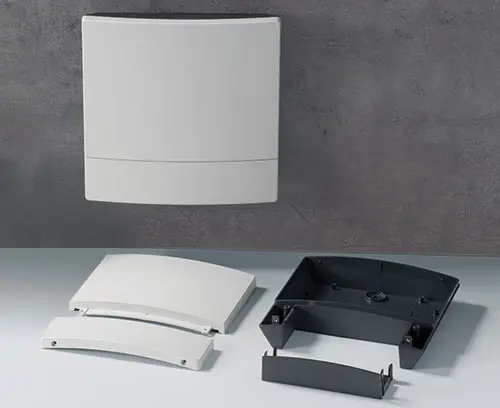

- Contenitore composto da tre parti, cioè parte inferiore, parte superiore e placca
Application Fields

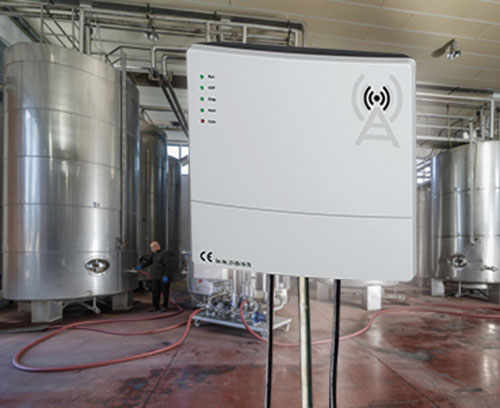

Gestione degli impianti tecnici di edifici, centraline di controllo, IoT/IIoT, smart factory, industrie 4.0, impianti di monitoraggio e controllo degli accessi, sistemi di rilevamento dati,periferiche di computer, metrologia e tecnica di regolazione, tecnica medicale, ecc.
B3214101

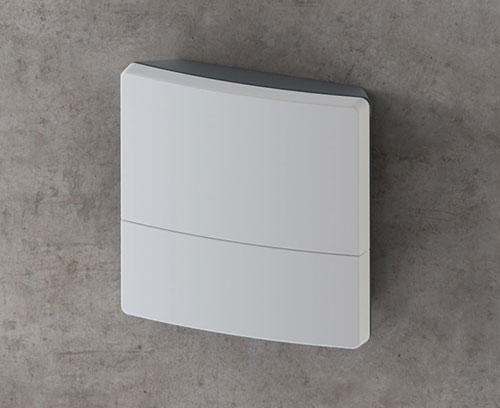

NET-BOX 140, Vers. I
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3214101
NET-BOX 140, Vers. IProdotto aggiunto alla lista
light grey RAL 7035
140x140x46,5mm
,
B3214201
NET-BOX 140, Vers. II
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3214201
NET-BOX 140, Vers. IIProdotto aggiunto alla lista
light grey RAL 7035
140x140x46,5mm
B3218101
NET-BOX 180, Vers. I
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3218101
NET-BOX 180, Vers. IProdotto aggiunto alla lista
light grey RAL 7035
180x180x48,5mm
,
B3218201

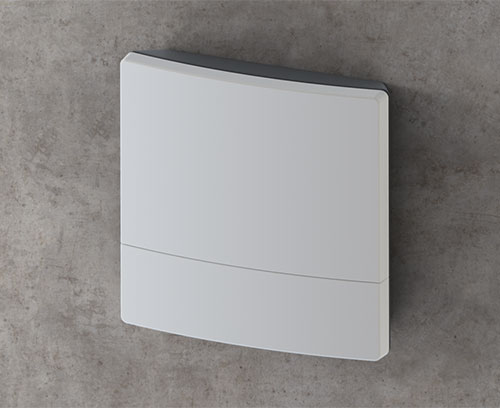

NET-BOX 180, Vers. II
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3218201
NET-BOX 180, Vers. IIProdotto aggiunto alla lista
light grey RAL 7035
180x180x48,5mm
B3222101
NET-BOX 220, Vers. I
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3222101
NET-BOX 220, Vers. IProdotto aggiunto alla lista
light grey RAL 7035
220x220x50,5mm
,
B3222201
NET-BOX 220, Vers. II
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3222201
NET-BOX 220, Vers. IIProdotto aggiunto alla lista
light grey RAL 7035
220x220x50,5mm
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Prodotto aggiunto alla lista
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmProdotto aggiunto alla lista
A9325018
Pole/mast mounting bracket
For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply 1 pole/mast mounting bracket
A9325018
Pole/mast mounting bracketProdotto aggiunto alla lista
anthracite grey RAL 7016
100x100x20mm
B3314159

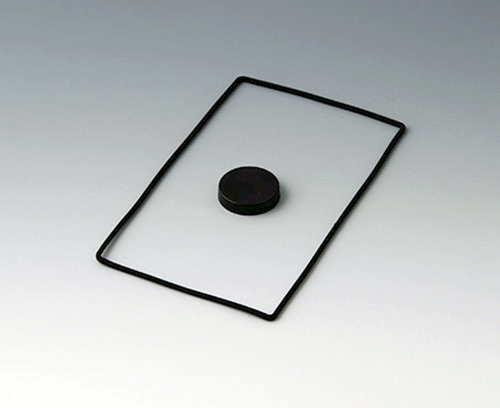

Sealing kit 140
Application: for increasing the protection class, of NET-BOX140.
Supply 1 sealing kit
B3314159
Sealing kit 140Prodotto aggiunto alla lista
black
B3314918

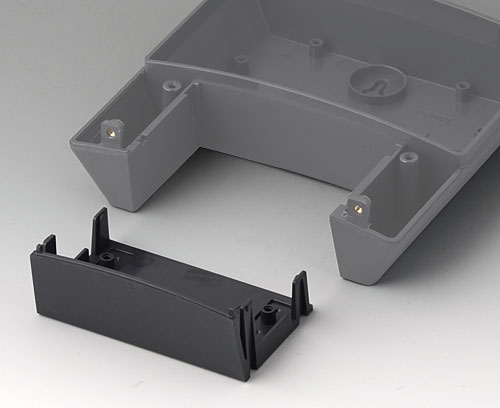

Infill cover 140
With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.
Supply 1 infill cover
B3314918
Infill cover 140Prodotto aggiunto alla lista
lava
B3318159

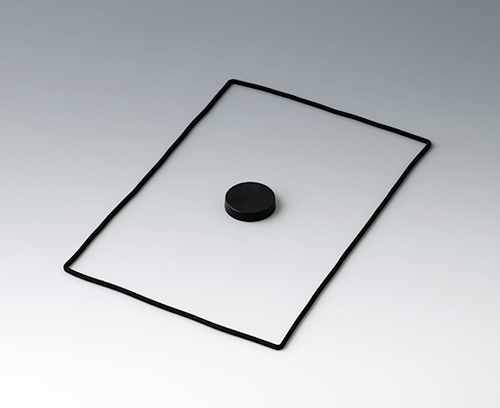

Sealing kit 180
Application: for increasing the protection class, of NET-BOX 180.
Supply 1 sealing kit
B3318159
Sealing kit 180Prodotto aggiunto alla lista
black
B3318918

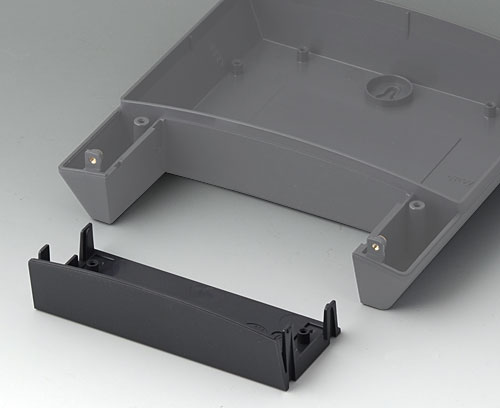

Infill cover 180
With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.
Supply 1 infill cover
B3318918
Infill cover 180Prodotto aggiunto alla lista
lava
B3322159
Sealing kit 220
Application: for increasing the protection class, of NET-BOX 220.
Supply 1 sealing kit
B3322159
Sealing kit 220Prodotto aggiunto alla lista
black
B3322918

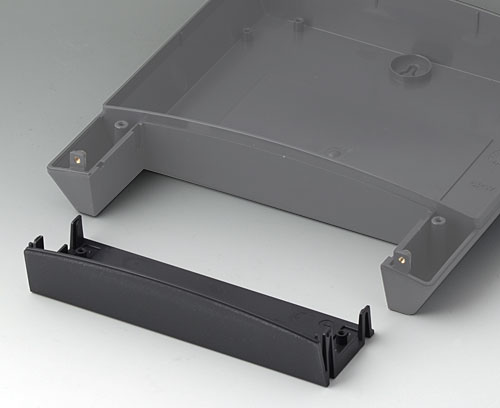

Infill cover 220
With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.
Supply 1 infill cover
B3322918
Infill cover 220Prodotto aggiunto alla lista
lava
Opzioni prodotto per Net-Box
Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
