PLUG CASE F / D, Vers. I

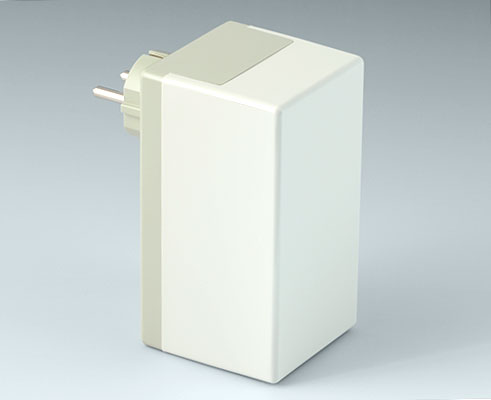

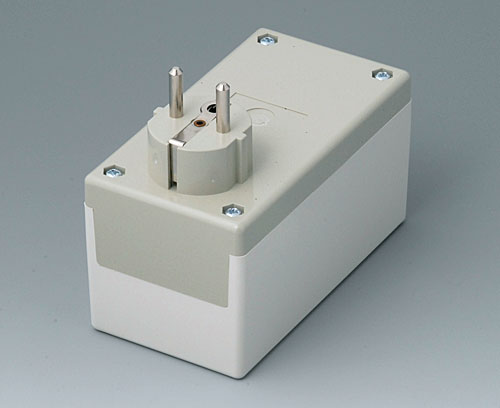

Two-part plug case, French / German version. Fixing towers for the PCB assembly.
VersionWithout integrated socket, plug according to DIN 49441 R2
Supply1 top part and 1 bottom part with plug section, assembly kit including 4 screws for the PCB fixing
Disegno PDF 2D
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per A9021665
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "screws"
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Prodotto aggiunto alla lista
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308031
Self-tapping screws 3 x 8 mm (PZ1)Prodotto aggiunto alla lista
A0308132
Self-tapping screw 3 x 8 mm (T10)
Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)Prodotto aggiunto alla lista
Customising options for A9021665
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Materiale
Bottom part with plug section
Top part with integrated socket
Colore
Bottom part with plug section
pebble grey RAL 7032,
Top part off-white RAL 9002
Top part off-white RAL 9002
Standards
Lunghezza
120 mm
Larghezza
65 mm
Altezza
65 mm
PCB length, base
96 mm
PCB width, base
58 mm
PCB length, top
95 mm
PCB width, top
58,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 183 KB
- AutoCAD DWG-File 377 KB
- AutoCAD DXF-File 1.417 KB
Weight/1 part
150 g
Customs tariff number
(OKW product)
(OKW product)
85480090
Country of manufacture
Germany
