A9113113

Front / rear panel V, O 190

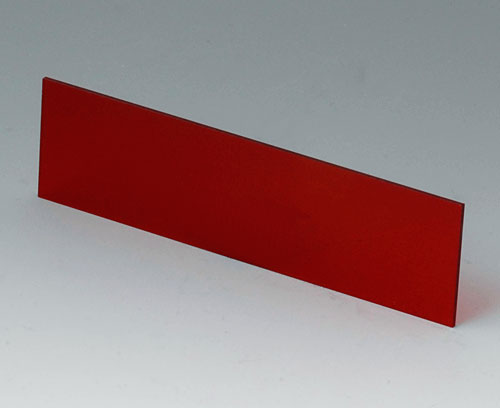

Front panel for SHELL-TYPE CASE V and O. For case A941333.

Supply

1 front panel

Create la vostra scheda dati PDF per A9113113

Selezionate le informazioni prodotto per la vostra scheda dati.

Aggiungi al carrello Aggiungi al carrello Aggiungi al carrello
Prodotto aggiunto alla lista
continua o Vai al carrello
A9413330 SHELL-TYPE CASES O 190, Vers. I

A9413330

SHELL-TYPE CASES O 190, Vers. I Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

A9413330

SHELL-TYPE CASES O 190, Vers. I
Prodotto aggiunto alla lista

off-white RAL 9002
138x190x45mm
A9413333 SHELL-TYPE CASES V 190, Vers. I

A9413333

SHELL-TYPE CASES V 190, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

A9413333

SHELL-TYPE CASES V 190, Vers. I
Prodotto aggiunto alla lista

off-white RAL 9002
138x190x45mm
A9413638 SHELL-TYPE CASES V 190, Vers. V

A9413638

SHELL-TYPE CASES V 190, Vers. V Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

A9413638

SHELL-TYPE CASES V 190, Vers. V
Prodotto aggiunto alla lista

off-white RAL 9002
138x190x45mm

Customising options for A9113113

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Materiale

Colore
red transparent
Standards
RoHS compliant
REACH compliant
Larghezza
124,2 mm
Altezza
33,6 mm
Spessore
1,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
5,6 g
Customs tariff number
(OKW product)
39205100
Country of manufacture
Other country

Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione A9113113 e non dimenticare di chiedere la quotazione!
