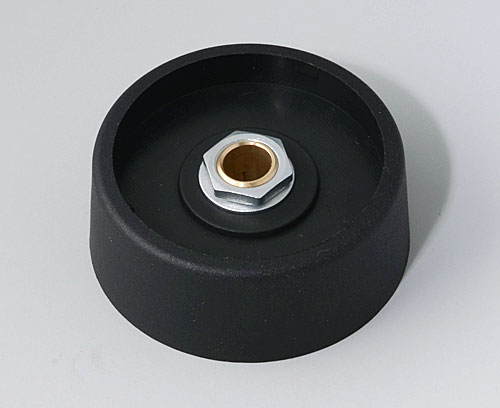

A3140069

COM-KNOBS 40, without recess

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 2.5 Nm, function = 1.6 Nm.

Supply

1 COM-KNOB (without recess)

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

AltText

A3240003

Cover 40 Suitable for COM-KNOB 40. Cover simply to pin up.

Supply 1 cover

Chiudi

A3240003

Cover 40
Prodotto aggiunto alla lista
PA 6
coral
AltText

A3240004

Cover 40 Suitable for COM-KNOB 40. Cover simply to pin up.

Supply 1 cover

Chiudi

A3240004

Cover 40
Prodotto aggiunto alla lista
PA 6
beach
AltText

A3240005

Cover 40 Suitable for COM-KNOB 40. Cover simply to pin up.

Supply 1 cover

Chiudi

A3240005

Cover 40
Prodotto aggiunto alla lista
PA 6
lagoon
AltText

A3240006

Cover 40 Suitable for COM-KNOB 40. Cover simply to pin up.

Supply 1 cover

Chiudi

A3240006

Cover 40
Prodotto aggiunto alla lista
PA 6
sky
AltText

A3240007

Cover 40 Suitable for COM-KNOB 40. Cover simply to pin up.

Supply 1 cover

Chiudi

A3240007

Cover 40
Prodotto aggiunto alla lista
PA 6
mineral
AltText

A3240009

Cover 40 Suitable for COM-KNOB 40. Cover simply to pin up.

Supply 1 cover

Chiudi

A3240009

Cover 40
Prodotto aggiunto alla lista
PA 6
nero
AltText

A3240011

Cover 40 Cover with a matt chrome finish for a classy metallic look. Suitable for COM-KNOB 40. Cover simply to pin up.

Supply 1 cover

Chiudi

A3240011

Cover 40
Prodotto aggiunto alla lista
ABS (UL 94 HB)
matt chromed
AltText

A3240103

Cover 40, with finger grip Suitable for COM-KNOB 40. Cover with finger grip simply to pin up.

Supply 1 cover

Chiudi

A3240103

Cover 40, with finger grip
Prodotto aggiunto alla lista
PA 6
coral
AltText

A3240104

Cover 40, with finger grip Suitable for COM-KNOB 40. Cover with finger grip simply to pin up.

Supply 1 cover

Chiudi

A3240104

Cover 40, with finger grip
Prodotto aggiunto alla lista
PA 6
beach
AltText

A3240105

Cover 40, with finger grip Suitable for COM-KNOB 40. Cover with finger grip simply to pin up.

Supply 1 cover

Chiudi

A3240105

Cover 40, with finger grip
Prodotto aggiunto alla lista
PA 6
lagoon
AltText

A3240106

Cover 40, with finger grip Suitable for COM-KNOB 40. Cover with finger grip simply to pin up.

Supply 1 cover

Chiudi

A3240106

Cover 40, with finger grip
Prodotto aggiunto alla lista
PA 6
sky
AltText

A3240107

Cover 40, with finger grip Suitable for COM-KNOB 40. Cover with finger grip simply to pin up.

Supply 1 cover

Chiudi

A3240107

Cover 40, with finger grip
Prodotto aggiunto alla lista
PA 6
mineral
AltText

A3240109

Cover 40, with finger grip Suitable for COM-KNOB 40. Cover with finger grip simply to pin up.

Supply 1 cover

Chiudi

A3240109

Cover 40, with finger grip
Prodotto aggiunto alla lista
PA 6
nero
AltText

A3240111

Cover 40, with finger grip Cover with a matt chrome finish for a classy metallic look. Suitable for COM-KNOB 40. Cover with finger grip simply to pin up.

Supply 1 cover

Chiudi

A3240111

Cover 40, with finger grip
Prodotto aggiunto alla lista
ABS (UL 94 HB)
matt chromed

Accessory "screws"

AltText

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6207009

Round nut M7 x 0.75
Prodotto aggiunto alla lista
AltText

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6210009

Round nut M10 x 0.75
Prodotto aggiunto alla lista
AltText

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6295009

Round nut 3/8"-32G
Prodotto aggiunto alla lista
AltText

A6300000

Spanner For tightening the round nut.

Supply 1 spanner

Chiudi

A6300000

Spanner
Prodotto aggiunto alla lista

Accessory

AltText

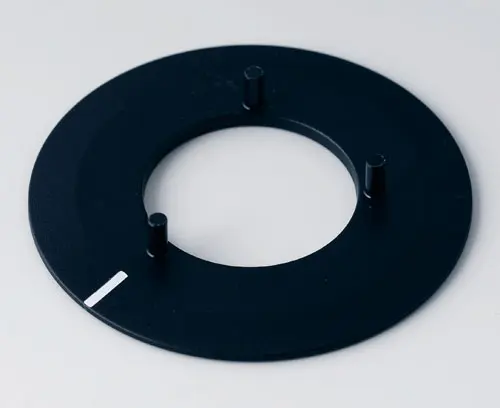

A7340010

Disk 40, with line Suitable for round knob 40 / COM-KNOB 40. Disk simply to pin up. White marking.

Supply 1 disk

Chiudi

A7340010

Disk 40, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005

Customising options for A3140069

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Esempi di applicazione
  • Purchasing Data
Materiale
Colore
nero
Diameter
40 mm
Height
16 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 672 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
17 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
