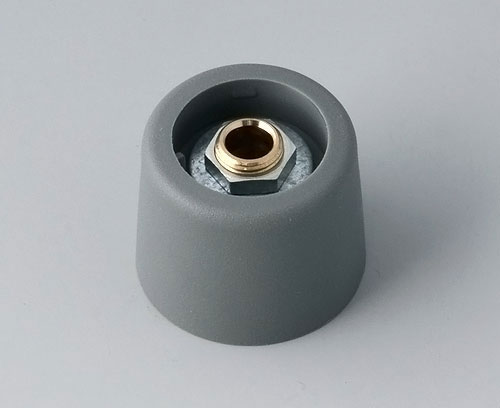

A3120638 COM-KNOBS 20, without recess

A3120638

COM-KNOBS 20, without recess

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 1.0 Nm, function = 0.9 Nm.

Supply

1 COM-KNOB (without recess)

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

A3220003 Cover 20

A3220003

Cover 20 Suitable for COM-KNOB 20. Cover simply to pin up.

Supply 1 cover

Chiudi

A3220003

Cover 20
Prodotto aggiunto alla lista
PA 6
coral
A3220004 Cover 20

A3220004

Cover 20 Suitable for COM-KNOB 20. Cover simply to pin up.

Supply 1 cover

Chiudi

A3220004

Cover 20
Prodotto aggiunto alla lista
PA 6
beach
A3220005 Cover 20

A3220005

Cover 20 Suitable for COM-KNOB 20. Cover simply to pin up.

Supply 1 cover

Chiudi

A3220005

Cover 20
Prodotto aggiunto alla lista
PA 6
lagoon
A3220006 Cover 20

A3220006

Cover 20 Suitable for COM-KNOB 20. Cover simply to pin up.

Supply 1 cover

Chiudi

A3220006

Cover 20
Prodotto aggiunto alla lista
PA 6
sky
A3220007 Cover 20

A3220007

Cover 20 Suitable for COM-KNOB 20. Cover simply to pin up.

Supply 1 cover

Chiudi

A3220007

Cover 20
Prodotto aggiunto alla lista
PA 6
mineral
A3220009 Cover 20

A3220009

Cover 20 Suitable for COM-KNOB 20. Cover simply to pin up.

Supply 1 cover

Chiudi

A3220009

Cover 20
Prodotto aggiunto alla lista
PA 6
nero

Accessory "screws"

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6207009

Round nut M7 x 0.75
Prodotto aggiunto alla lista
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6210009

Round nut M10 x 0.75
Prodotto aggiunto alla lista
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6295009

Round nut 3/8"-32G
Prodotto aggiunto alla lista
A6300000 Spanner

A6300000

Spanner For tightening the round nut.

Supply 1 spanner

Chiudi

A6300000

Spanner
Prodotto aggiunto alla lista

Accessory

A4420001 Dial 20

A4420001

Dial 20 Dial simply to pin up for round and wing knob 20 / COM-KNOB 20. Surface bright.

Supply 1 dial

Chiudi

A4420001

Dial 20
Prodotto aggiunto alla lista
PC (UL 94 HB)
transparent
A4420010 Dial 20

A4420010

Dial 20 Dial simply to pin up for round and wing knob 20 / COM-KNOB 20. Surface bright. Black symbol.

Supply 1 dial

Chiudi

A4420010

Dial 20
Prodotto aggiunto alla lista
PC (UL 94 HB)
transparent
A4420060 Dial 20

A4420060

Dial 20 Dial simply to pin up for round and wing knob 20 / COM-KNOB 20. Surface bright. Black symbol.

Supply 1 dial

Chiudi

A4420060

Dial 20
Prodotto aggiunto alla lista
PC (UL 94 HB)
transparent
A6020019 Stator 20

A6020019

Stator 20 Suitable for round and wing knobs 20 / COM-KNOB 20. Stator with self-adhesive foil. Black marking.

Supply 1 Stator

Chiudi

A6020019

Stator 20
Prodotto aggiunto alla lista
Aluminium

Customising options for A3120638

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
Colore
volcano
Diameter
20 mm
Height
16 mm
Bore hole ″
1/4″
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 667 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
6 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
