ART-CASE R110 H

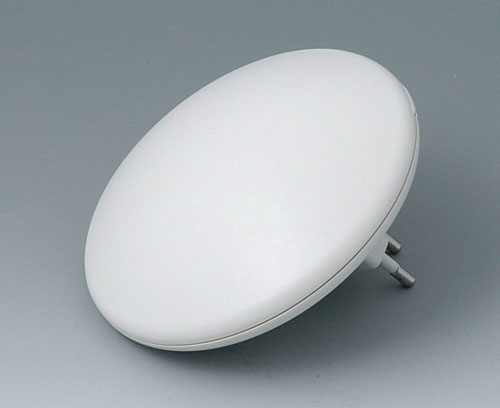

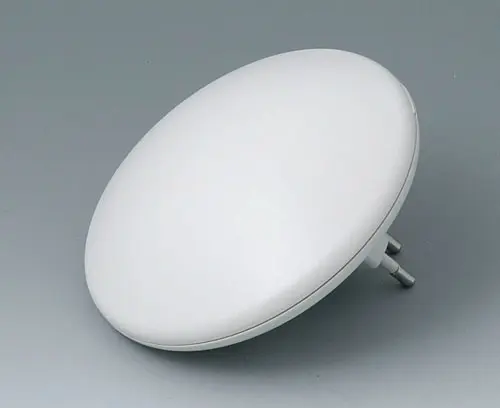

Electronic case with EURO plug section according to DIN VDE 0620 part 101. High top part.
Not suitable for sockets with integrated, increased protection against contact!
Bottom part "inclined" with plug section
Supply1 bottom part, 1 plug section and 1 top part R110 H, assembly kit
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B5011327
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "screws"
B5111201
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.
Supply 4 screws
B5111201
Set of screwsProdotto aggiunto alla lista
Customising options for B5011327
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Materiale
Plug section
Bottom and top part
Protection class
Colore
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Diametro
⌀ 110 mm
Altezza
41 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 232 KB
- AutoCAD DWG-File 343 KB
- AutoCAD DXF-File 1.234 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 1.342 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00007037.x_t 1.412 KB
- 00007037.STEP 3.829 KB
- 00007037.SAT 3.366 KB
Weight/1 part
71 g
Customs tariff number
(OKW product)
(OKW product)
85480090
Country of manufacture
Germany
