Accessori per contenitori
A4150008

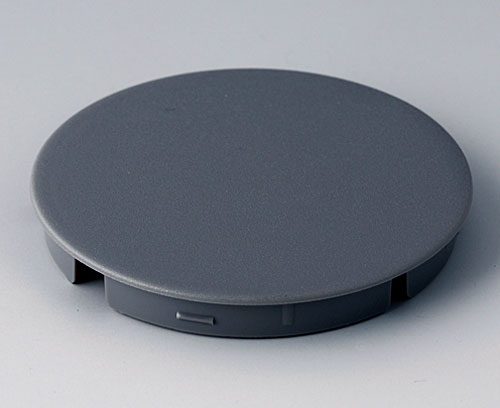

Cover 50, without line
Suitable for round knobs 50. Cover simply to pin up.
Supply1 cover
Disegno PDF 2D
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per A4150008
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
System components to complete
A2550060
ROUND KNOB 50, without line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. Max. torque: assembly = 3,0 Nm, function = 1,8 Nm.
Supply 1 round knob
A2550060
ROUND KNOB 50, without lineProdotto aggiunto alla lista
black RAL 9005
50x15mm
Foro assiale 6mm
A2550068
ROUND KNOB 50, without line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 3,0 Nm, function = 1,8 Nm.
Max. torque: assembly = 3,0 Nm, function = 1,8 Nm.
Supply 1 round knob
A2550068
ROUND KNOB 50, without lineProdotto aggiunto alla lista
dusty grey RAL 7037
50x15mm
Foro assiale 6mm
A2650060
ROUND KNOB 50, with line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 3,0 Nm, function = 1,8 Nm.
Max. torque: assembly = 3,0 Nm, function = 1,8 Nm.
Supply 1 round knob
A2650060
ROUND KNOB 50, with lineProdotto aggiunto alla lista
black RAL 9005
50x15mm
Foro assiale 6mm
Customising options for A4150008
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 145 KB
- AutoCAD DWG-File 329 KB
- AutoCAD DXF-File 769 KB
Weight/1 part
2,6 g
Customs tariff number
(OKW product)
(OKW product)
84879090
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione A4150008 e non dimenticare di chiedere la quotazione!
